Replacement monitor for Siemens Sinumerik 800/820/850/880

LCD10 0013 SIEMENS SINUMERIK 800 820 850 880 880T 820M 880G 1 1
LCD10 0013 SIEMENS SINUMERIK 800 820 850 880 880T 820M 880G 2 1
LCD10 0013 SIEMENS SINUMERIK 800 820 850 880 880T 820M 880G 3 1
LCD10 0013 SIEMENS SINUMERIK 800 820 850 880 880T 820M 880G 4 1
LCD10 0013 SIEMENS SINUMERIK 800 820 850 880 880T 820M 880G 5 1
LCD10 0013 SIEMENS SINUMERIK 800 820 850 880 880T 820M 880G 6 1

Replacement monitor for Siemens Sinumerik 800/820/850/880

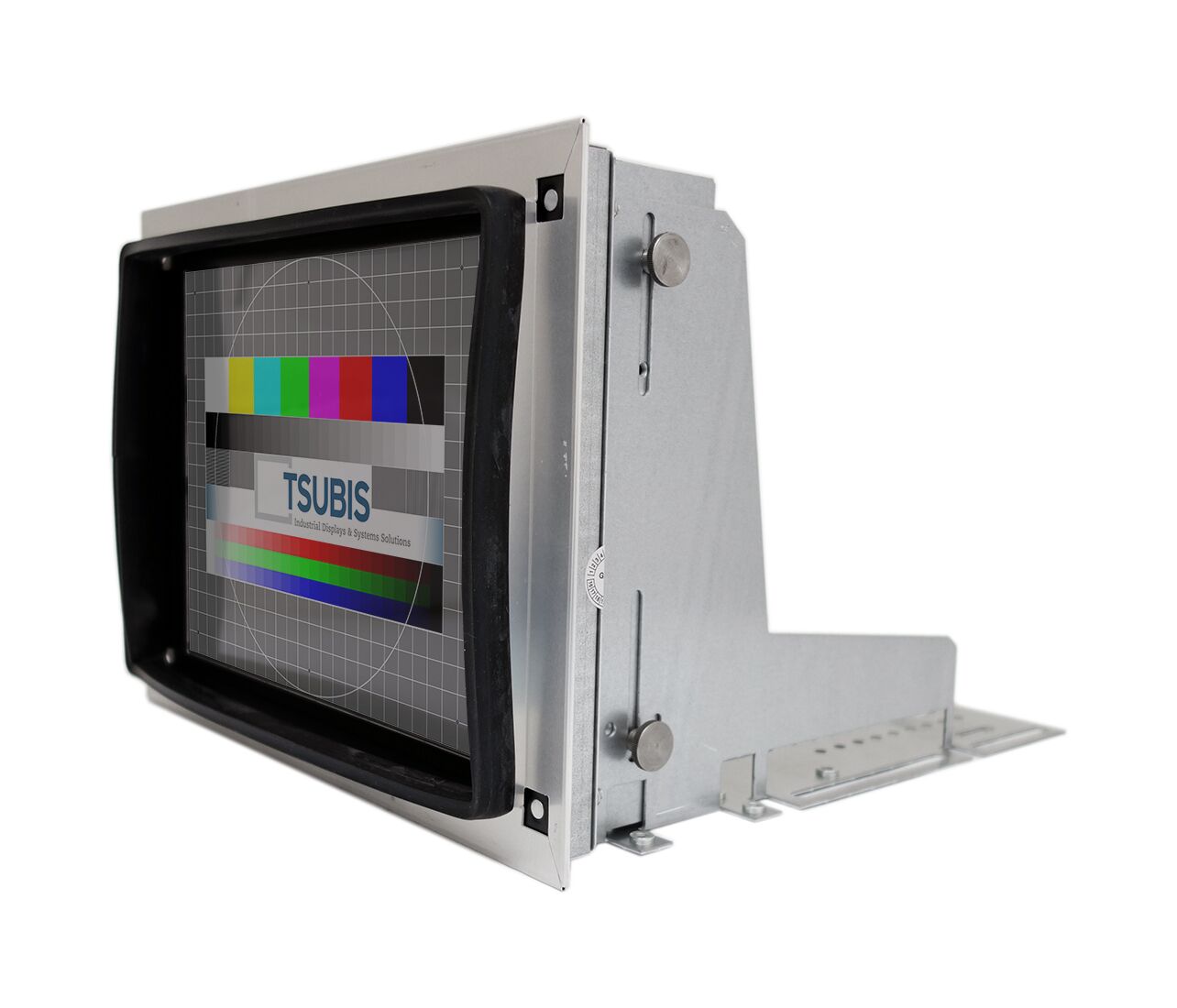

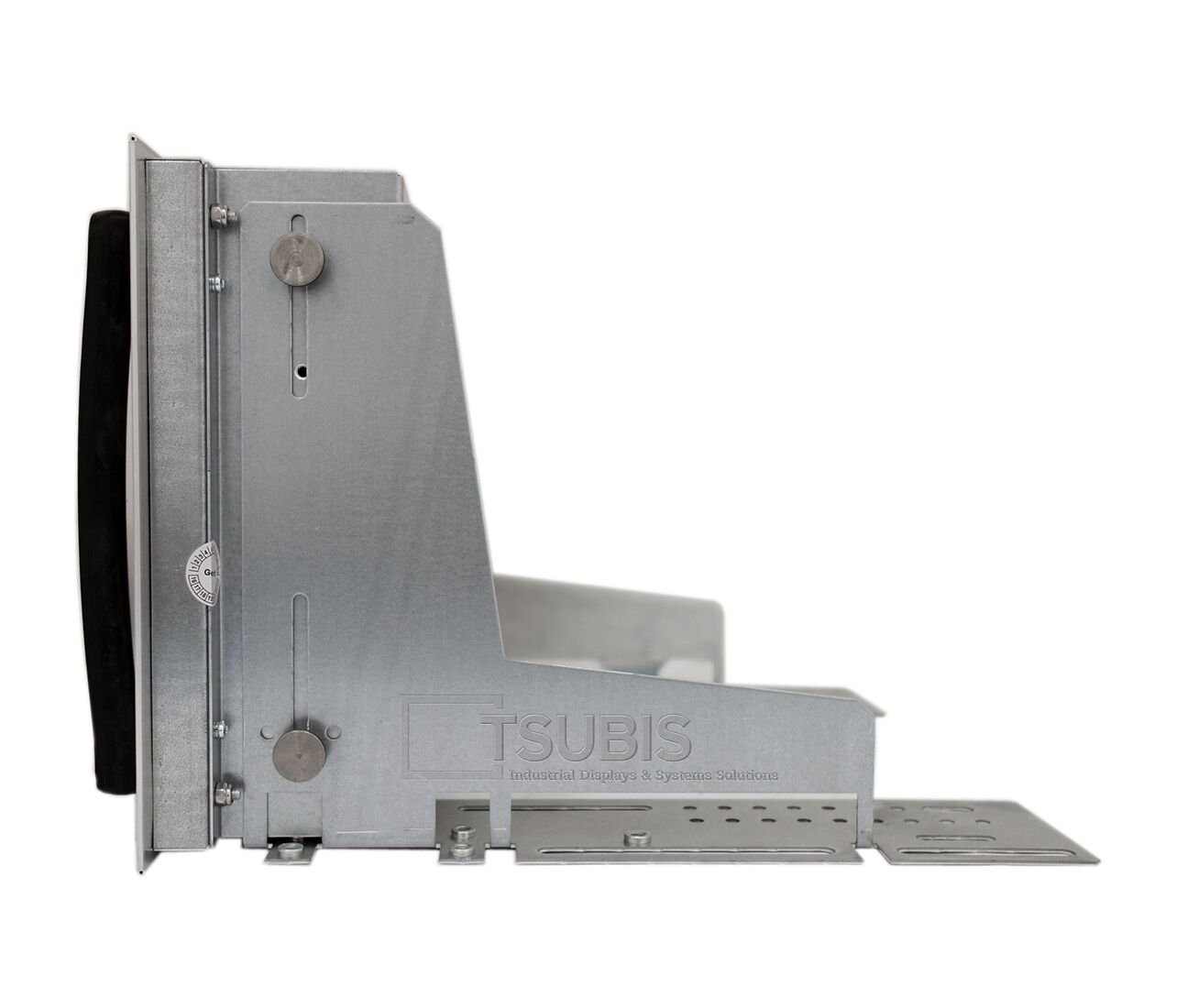

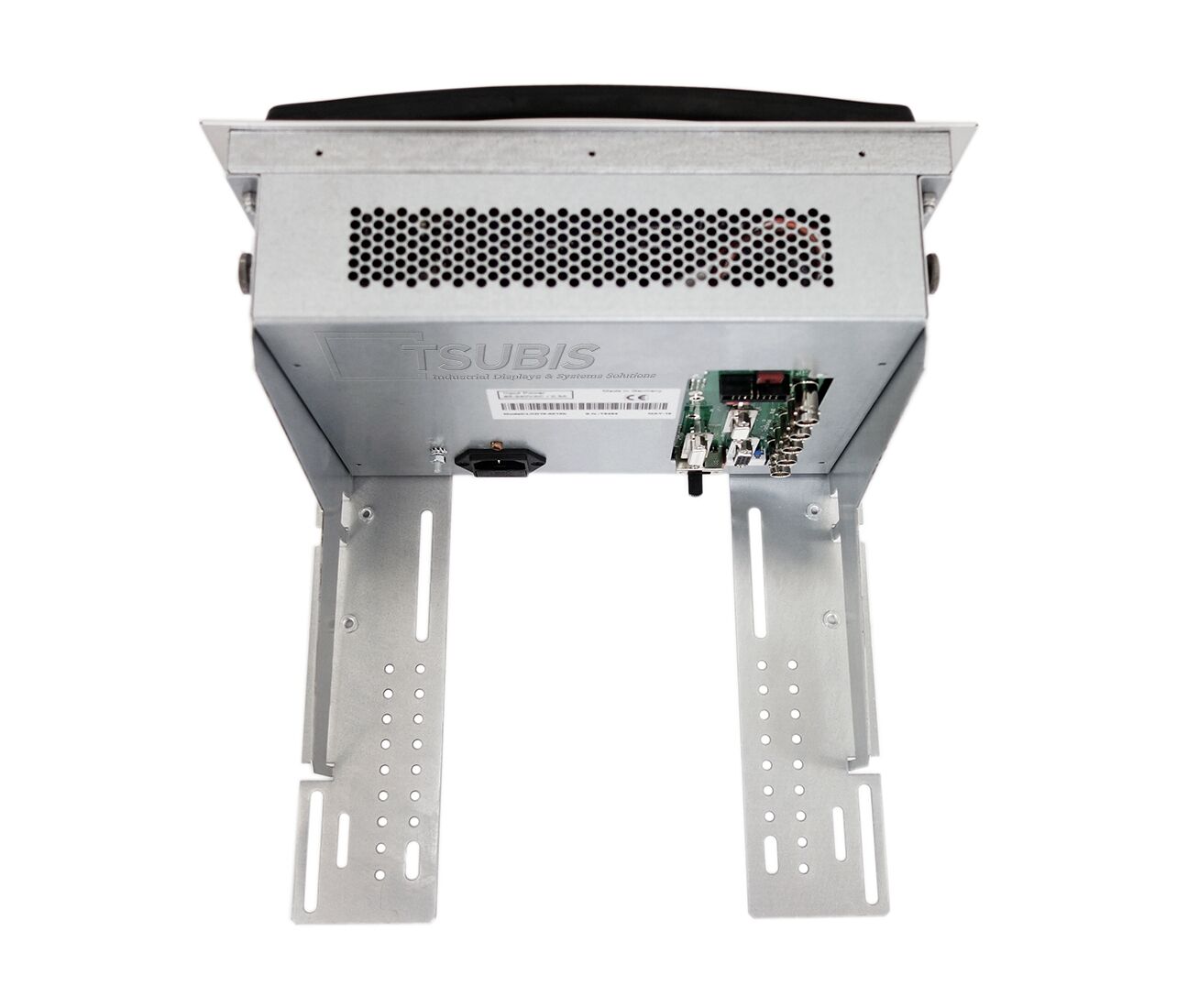

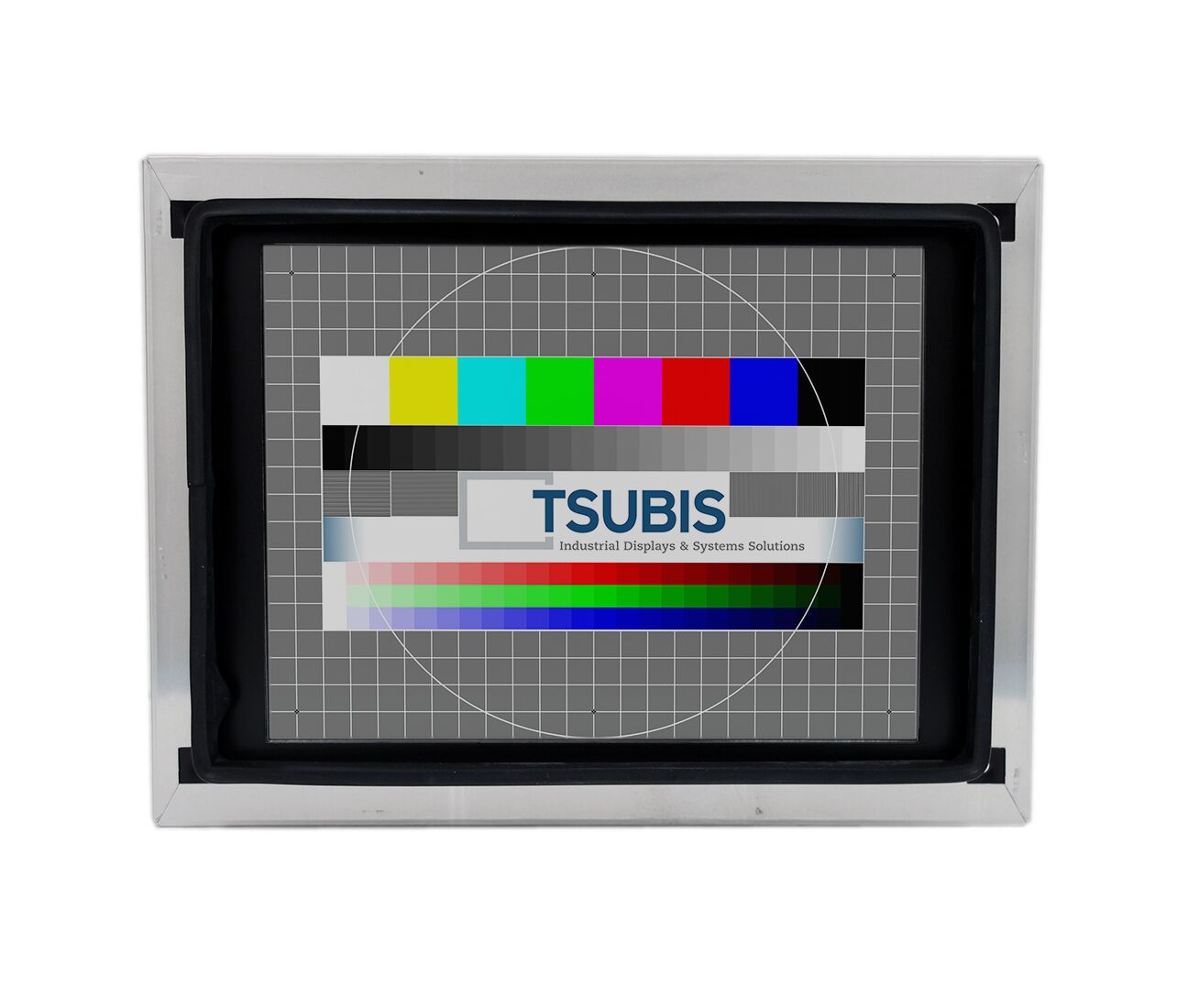

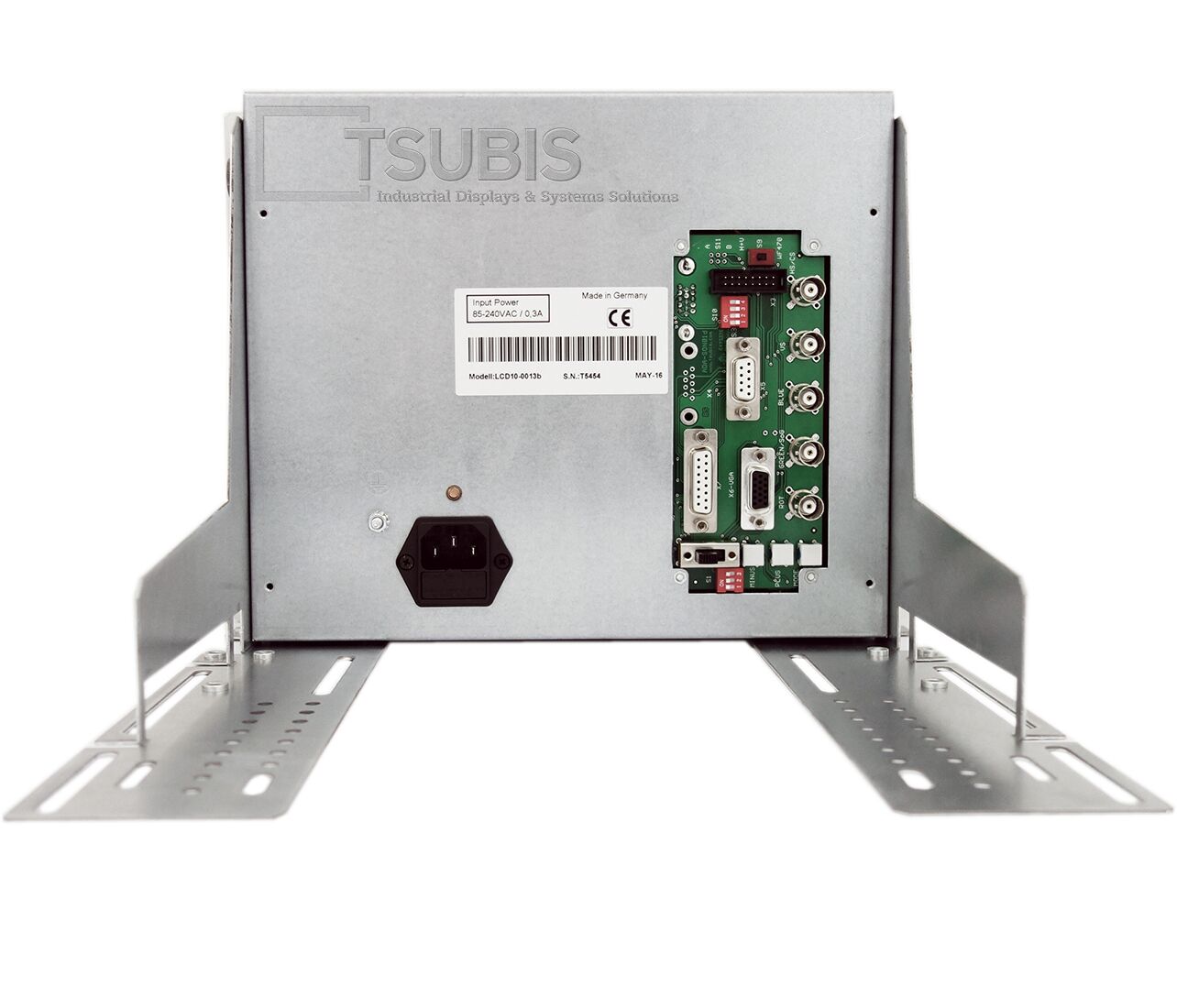

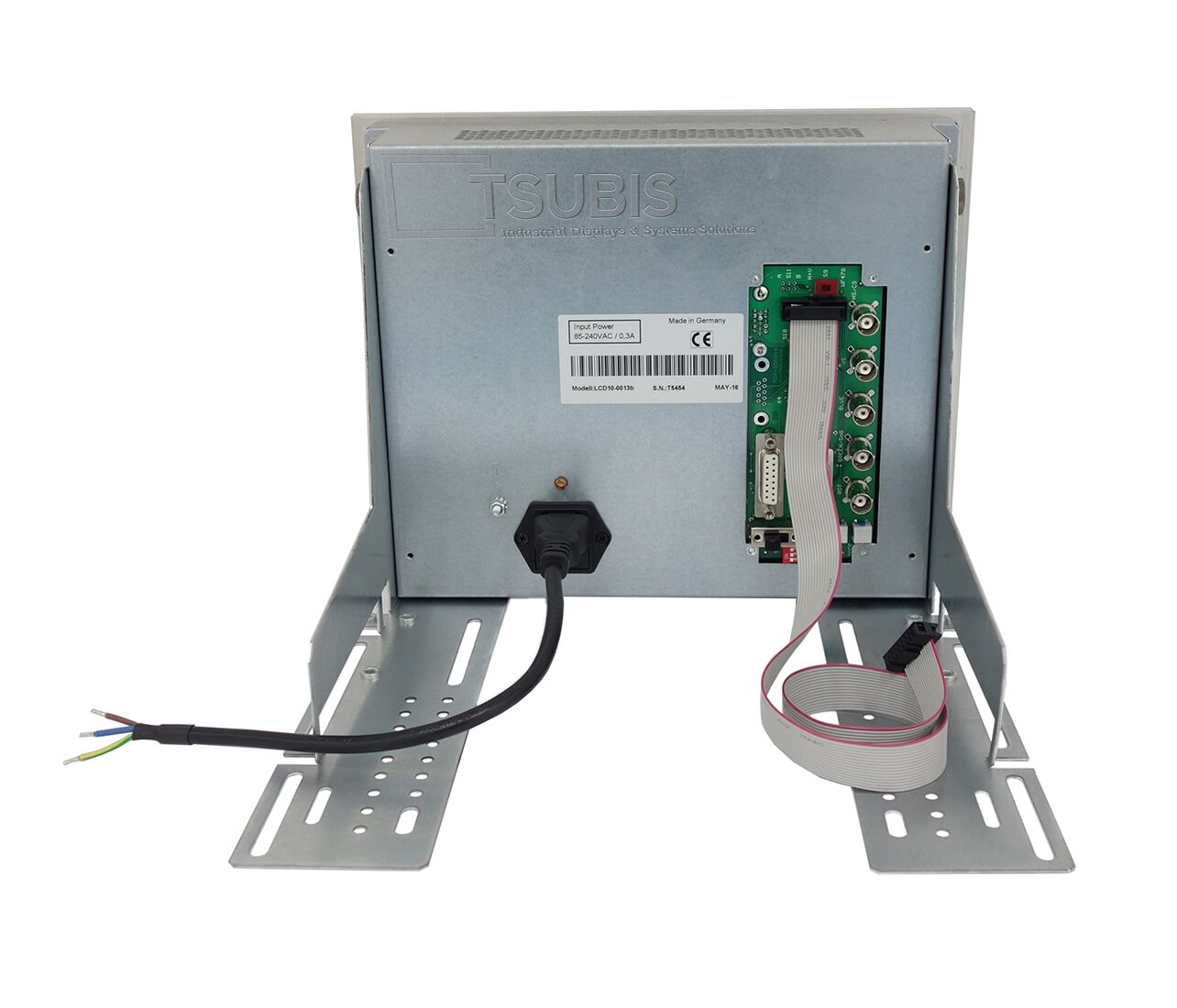

10,4” TFT replacement monitor for SIEMENS SINUMERIK 800/820/850/880

Our LCD10-0013 is a modern 10.4″ TFT LCD monitor that replaces the 12″ CRT monitor fitted to the following Siemens controls:
Siemens Sinumerik 800
Siemens Sinumerik 820
Siemens Sinumerik 820M
Siemens Sinumerik 850
Siemens Sinumerik 880
Siemens Sinumerik 880T
Siemens Sinumerik 880G
(note – a 10.4″ LCD gives the same display area as a 12″ CRT)
Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps.

  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LCD10-0013
SKU: LCD10-0013 Categories: , ,
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/siemens-sinumerik-en/replacement-monitor-for-siemens-sinumerik-800-820-850-880/ Replacement monitor for Siemens Sinumerik 800/820/850/880 2019-01-25 18:11:59 <strong>10,4'' TFT replacement monitor for SIEMENS SINUMERIK 800/820/850/880</strong> Our LCD10-0013 is a modern 10.4" TFT LCD monitor that replaces the 12" CRT monitor fitted to the following Siemens controls: Siemens Sinumerik 800 Siemens Sinumerik 820 Siemens Sinumerik 820M Siemens Sinumerik 850 Siemens Sinumerik 880 Siemens Sinumerik 880T Siemens Sinumerik 880G (note – a 10.4" LCD gives the same display area as a 12" CRT) Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps.
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LCD10-0013
 Frank Reinecke Blog post

10,4” TFT LCD replacement monitor for colored 12” CRT monitor.

  • Manufacturer: SIEMENS SINUMERIK
  • Steuerung: 800/820/850/880/880T/820M/880G
  • Mechanical version: Chassis with Curvature incl. protective screen
  • Input signal: 16pol., 3x BNC
  • Power supply: 85-240V AC
  • Siemens Monitor Codes:
    • 6FC3561-1AC-Z
    • 6FC3801-0AC-Z
    • 6FC3561-1AC-Z-F
    • 6FC3261-1AC-Z
    • 6FC3988-7AM20
    • 6FC3986-3AU (RGB)
    • 6FC3986-7AG
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/siemens-sinumerik-en/replacement-monitor-for-siemens-sinumerik-800-820-850-880/ Replacement monitor for Siemens Sinumerik 800/820/850/880 2019-01-25 18:11:59 <strong>10,4'' TFT replacement monitor for SIEMENS SINUMERIK 800/820/850/880</strong> Our LCD10-0013 is a modern 10.4" TFT LCD monitor that replaces the 12" CRT monitor fitted to the following Siemens controls: Siemens Sinumerik 800 Siemens Sinumerik 820 Siemens Sinumerik 820M Siemens Sinumerik 850 Siemens Sinumerik 880 Siemens Sinumerik 880T Siemens Sinumerik 880G (note – a 10.4" LCD gives the same display area as a 12" CRT) Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps.
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LCD10-0013
 Frank Reinecke Blog post

pdf Datenblatt LCD10-0013
