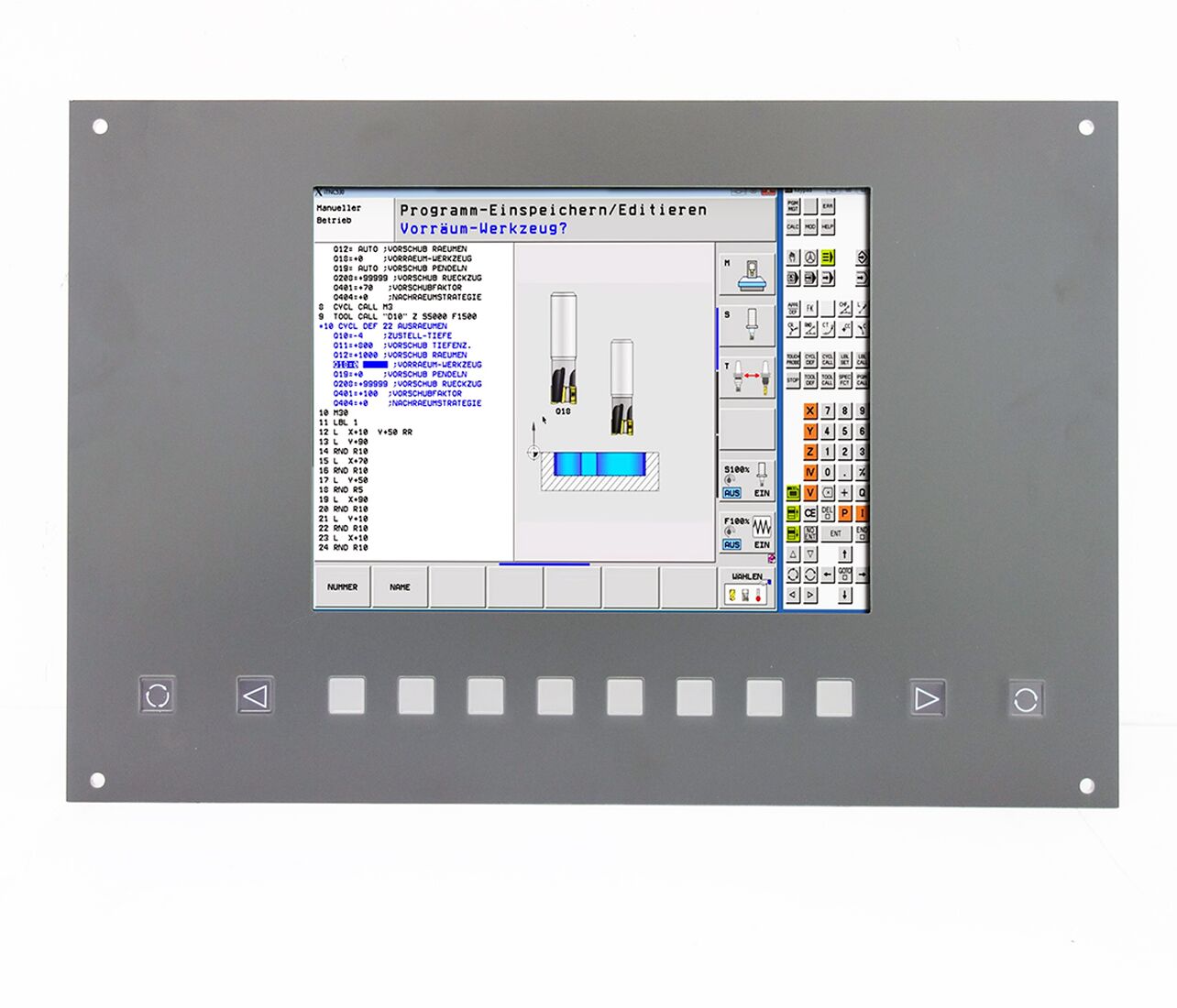

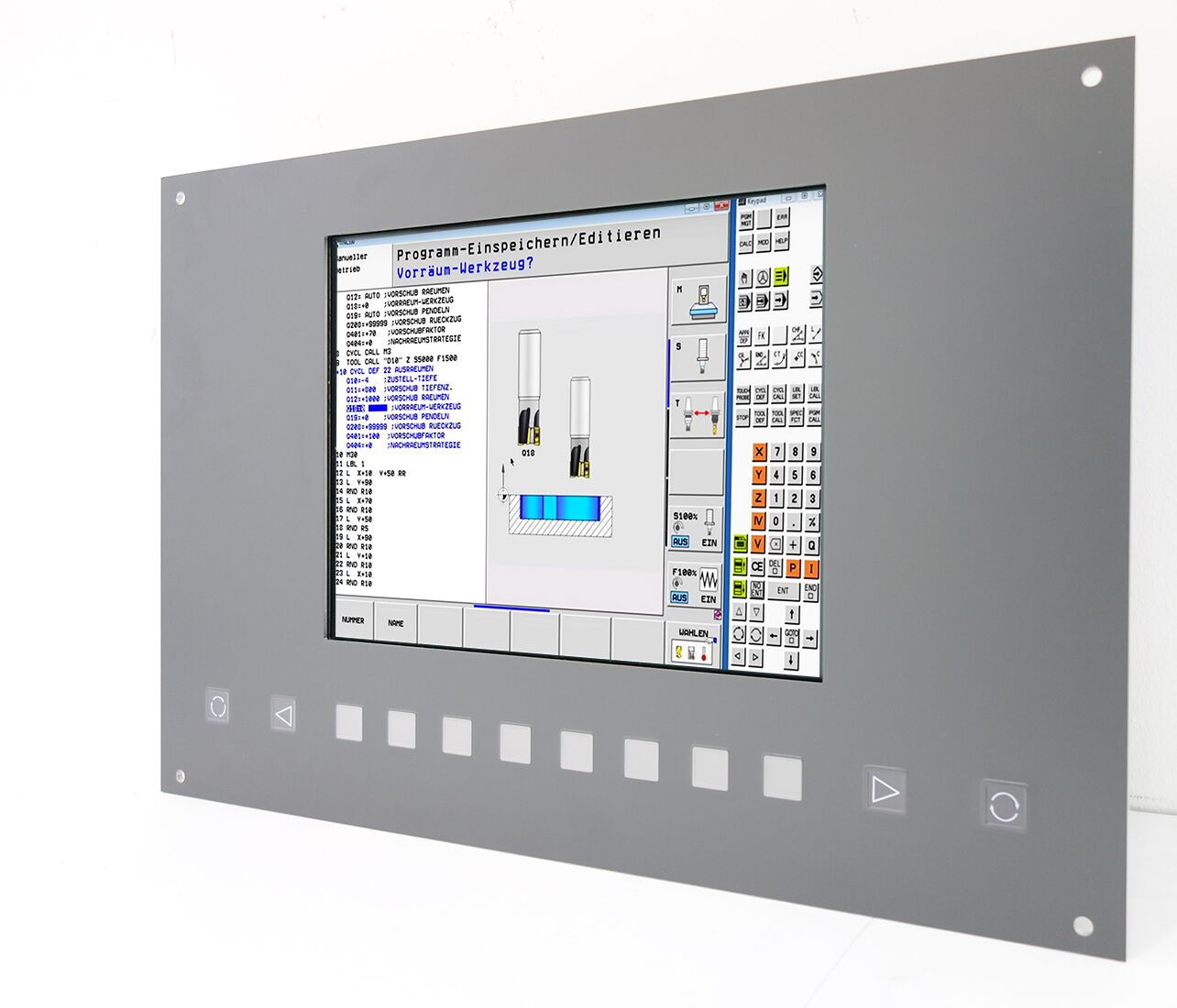

10,4” TFT replacement monitor for BF120 front plate with keyboard.
This Heidenhain BF120 monitor is a modern 10.4″ colour TFT LCD replacement display for the original 10.4″ colour LCD monitor that was fitted to the Heidenhain TNC410M, TNC416, TNC426M, TNC430M controllers.
HEIDENHAIN Monitor Codes:
Id.Nr. 313 506-02
BF 120, BF 129 Monitor
10,4” TFT industrial monitor with integrated keyboard as replacement for 10,4” TFT monitor BF120 / BF129.
- Manufacturer: Heidenhain
- Control: TNC 410M, TNC 416, TNC 426M, TNC 430M
- Mechanical version: Front plate inklusive keyboard
- Input signal: HD D-SUB 62-pin / 3-row
- Power supply: 24V DC
- Heidenhain Monitor Codes: BF120-Id.Nr. 313 506-02
