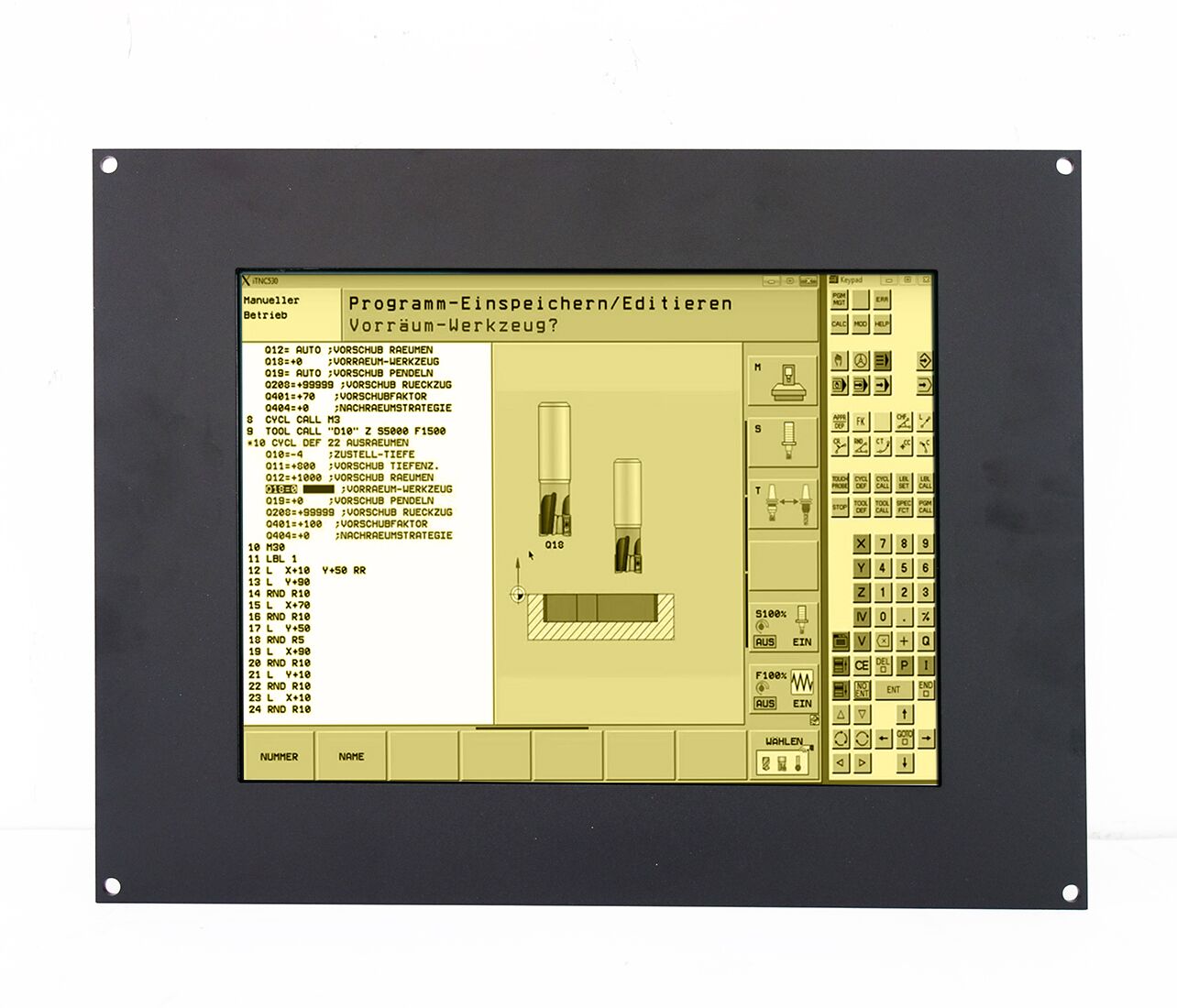

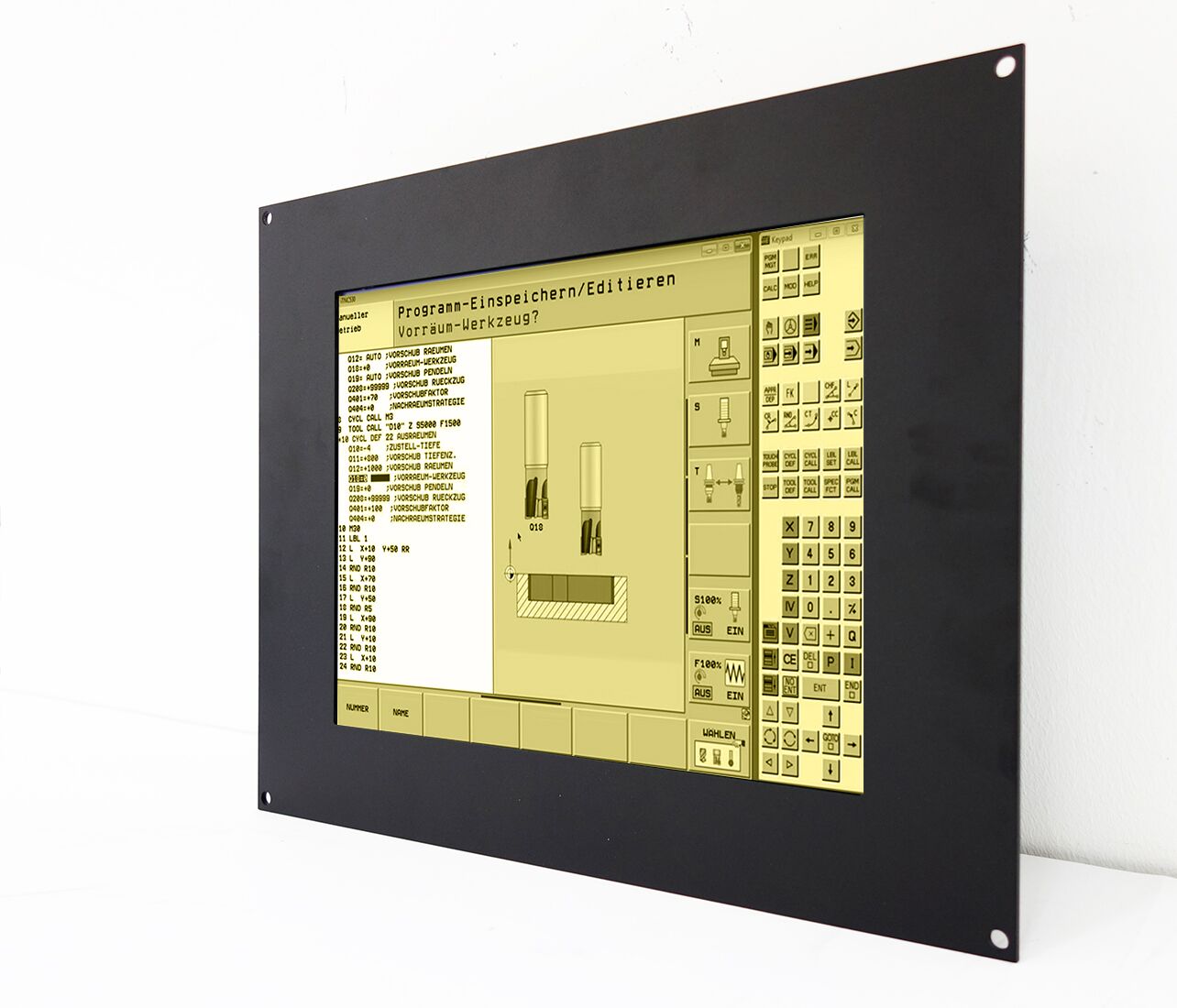

12,1″ TFT replacement monitor for HEIDENHAIN BE411, BE411B, BE411F.
This Heidenhain monitor is a modern 12.1″ colour TFT LCD replacement display for the original 12″ monochrome CRT monitor that was fitted to the Heidenhain TNC155, TNC155B, TNC155Q controllers.
HEIDENHAIN Monitor Code:
Id.Nr. 375401-21
Id.Nr. 226 917 01
Id.Nr. 345 541-02
BE 411, BE 411B, BE 411F Monitor
2,1” replacement monitor for 12” CRT monitor (monochrom yellow) BE 411/ BE 411B/ BE 411F.
- Manufacturer: Heidenhain
- Control: TNC 155
- Mechanical version: Front plate with protective screen

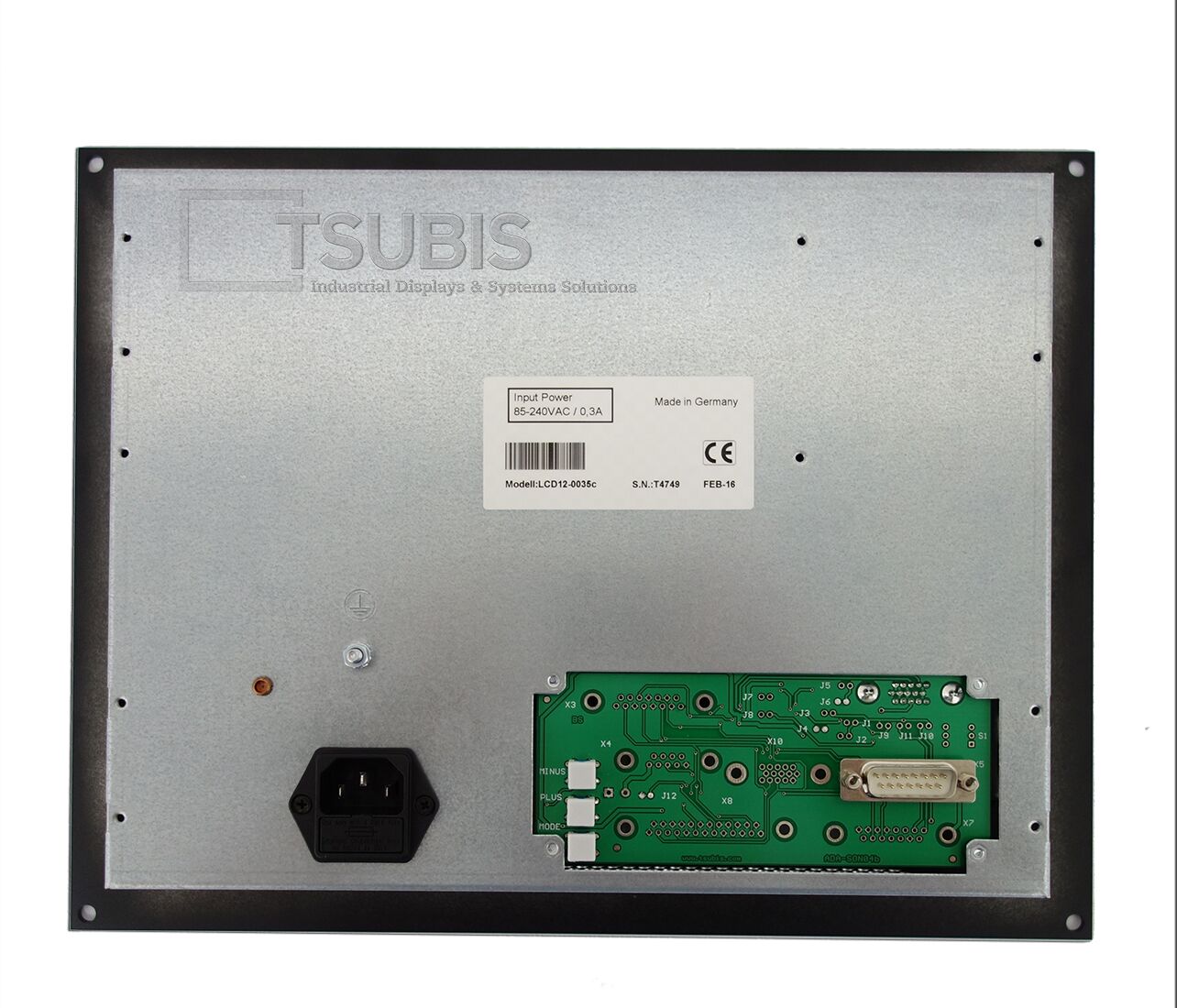

- Input signal: 9 pol. 2 row D-SUB connector
- Front Panel (WxH): 350 x 274 mm
- Power supply: 85-240V AC
- Heidenhain Monitor Code:
- Id.Nr. 375401-21
- Id.Nr. 226 917 01
- Id.Nr. 345 541-02
