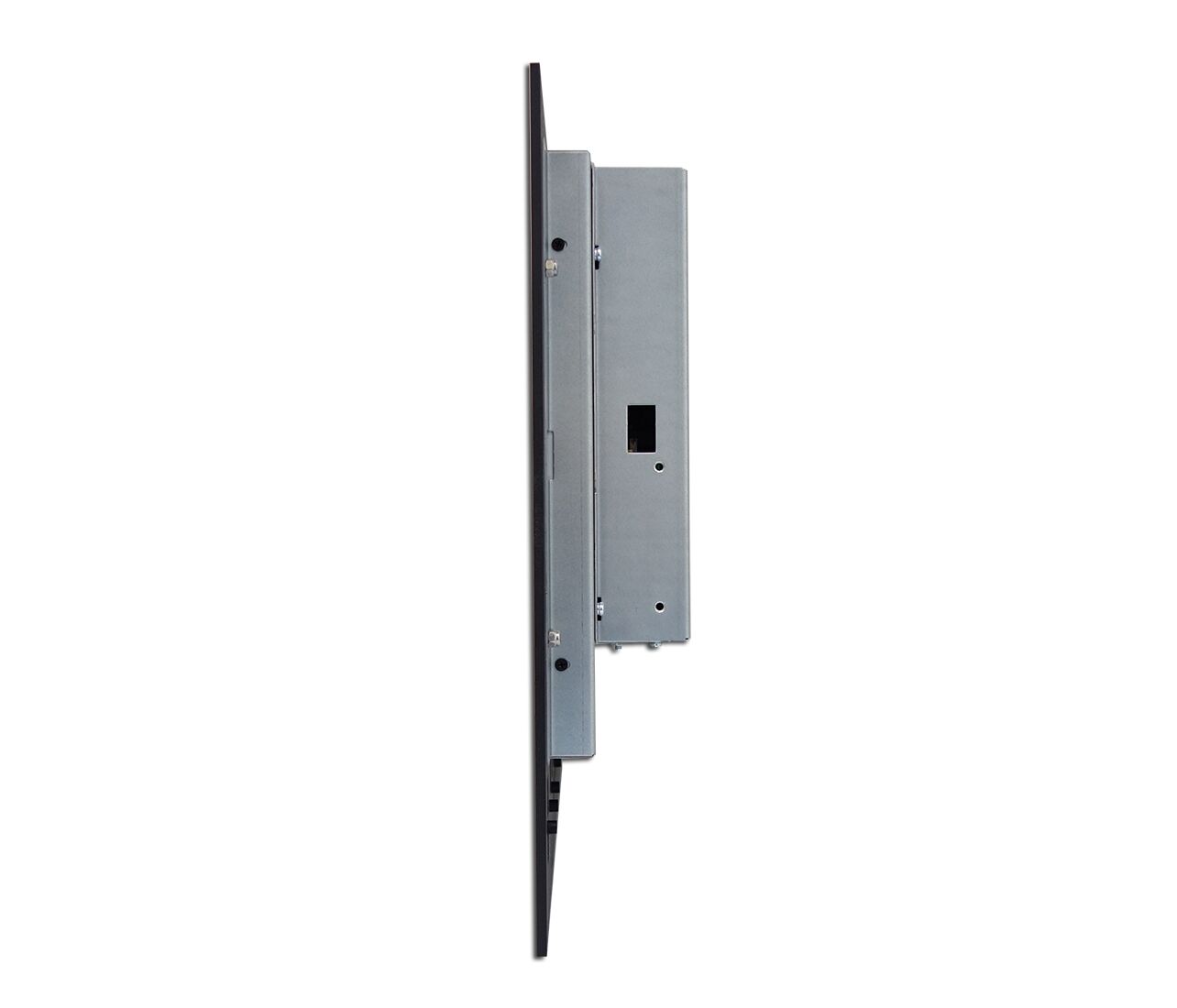

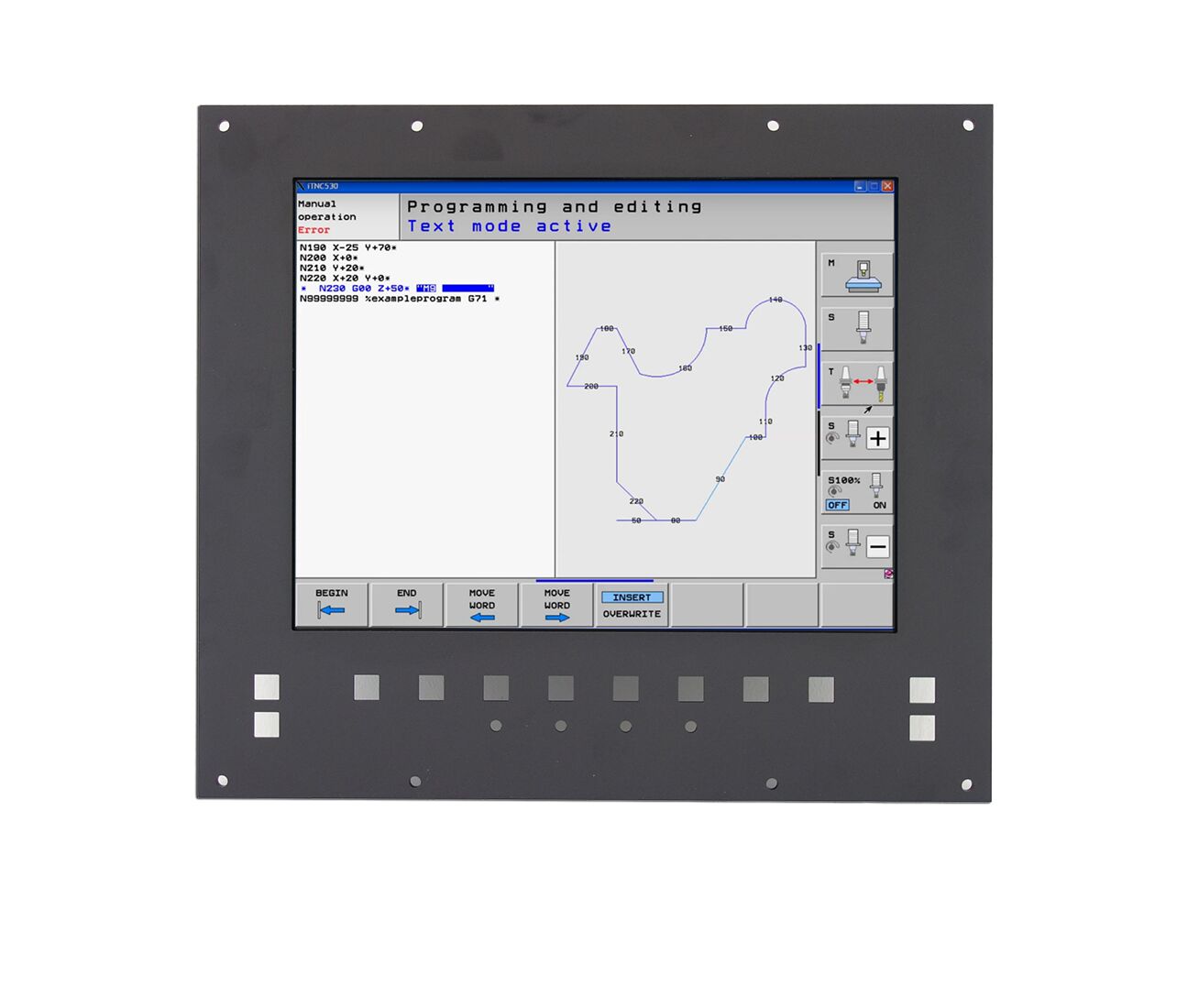

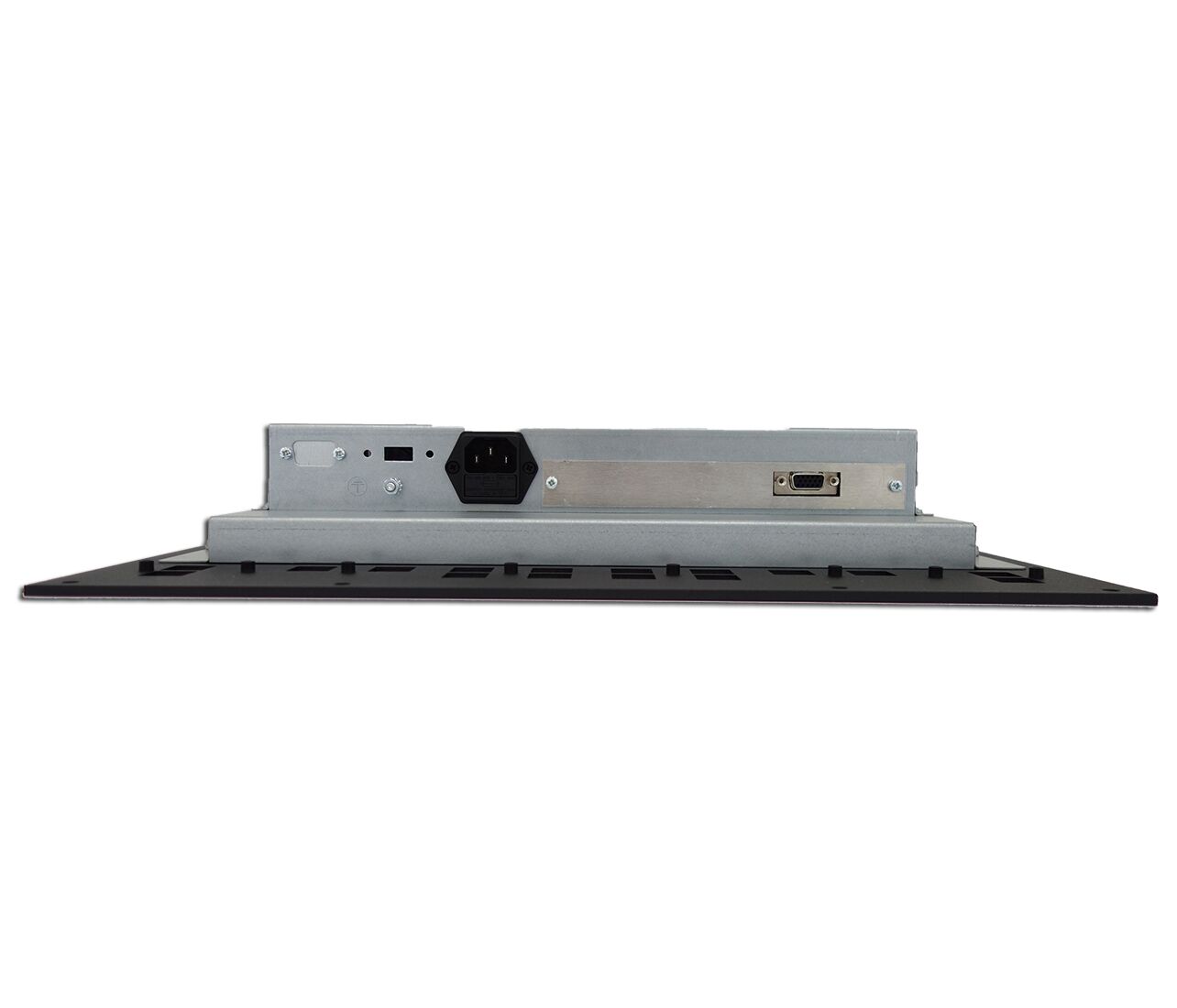

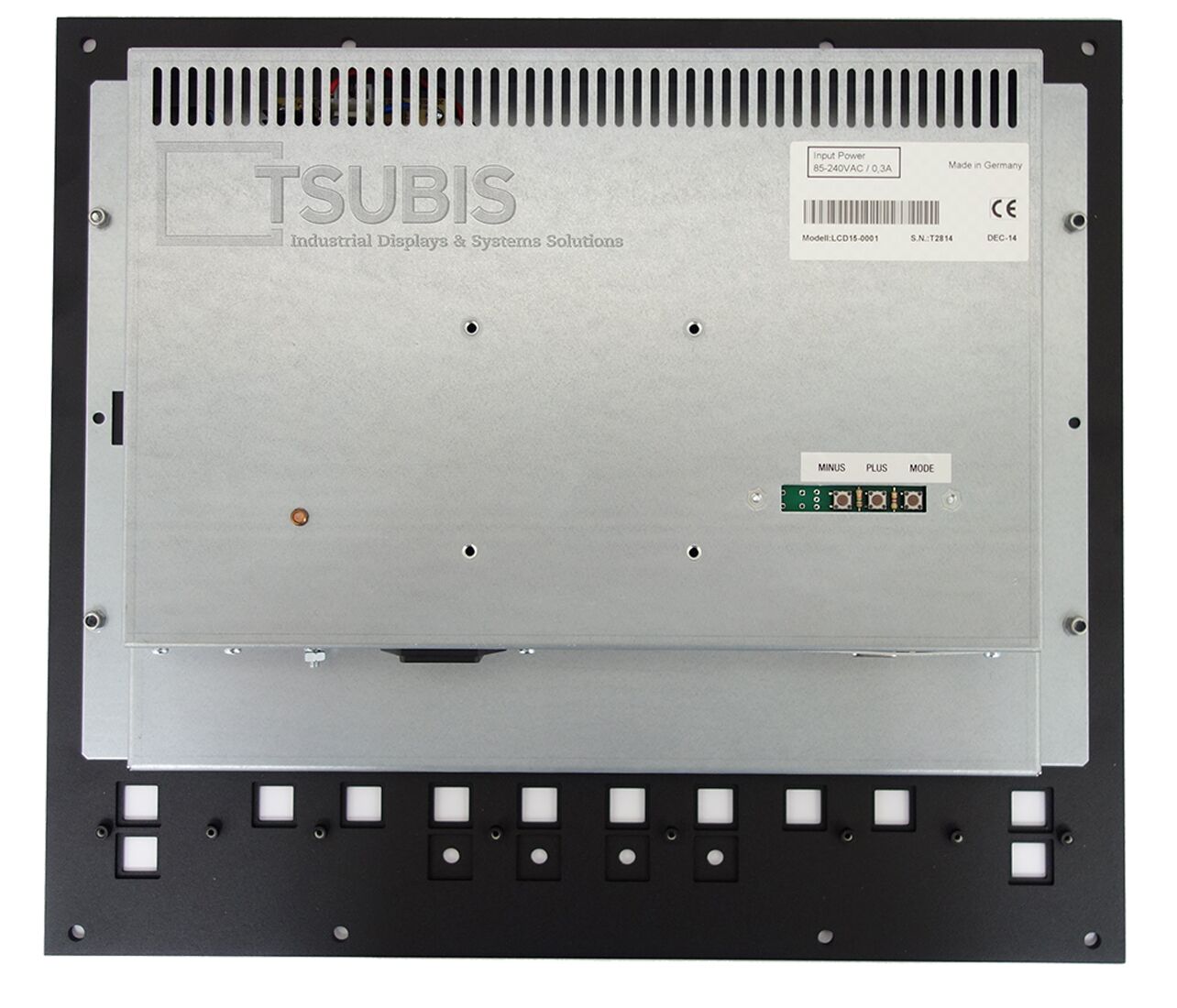

15,0″ TFT replacement monitor for HEIDENHAIN BC120 (front plate without keyboard).
This Heidenhain BC120 monitor is a modern 15″ colour TFT LCD replacement display for the original 15″ colour CRT monitor that was fitted to the Heidenhain TNC 407,TNC 410M, TNC 410 C / P, TNC 416, TNC 426m, and TNC 430 PB controllers.
replaces the HEIDENHAIN Monitor BC120:
Id.Nr. 313 037-01
Id.Nr. 391 268-03
BC 120 Monitor
15” TFT industrial monitor (without keyboard) as replacement for 15” CRT/TFT monitor BC120.
- Manufacturer: Heidenhain
- Control: TNC 407, TNC 410, TNC 416, TNC 426, TNC 426PB, TNC 430, Mill Plus
- Color-Monitor Heidenhain Modell BC120
- Mechanical version: Front plate without keyboard
- Input signal: 15 pol. HD-SUB connector
- Front Panel (WxH): 400 x 350,5 mm
- Power supply: 85-240V AC
- Heidenhain Monitor Codes: Id.Nr. 313 037-01 Id.Nr. 391 268-03
