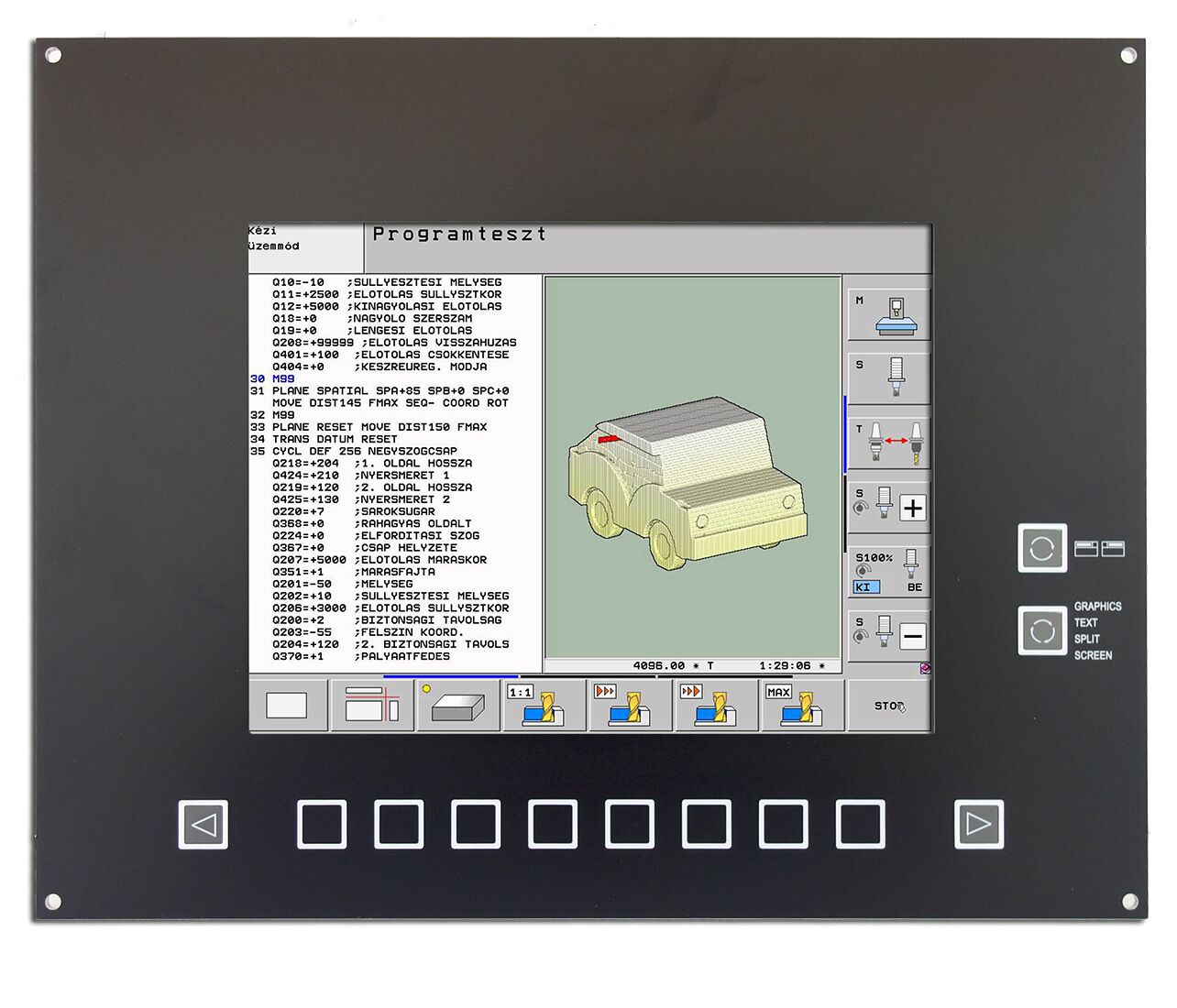

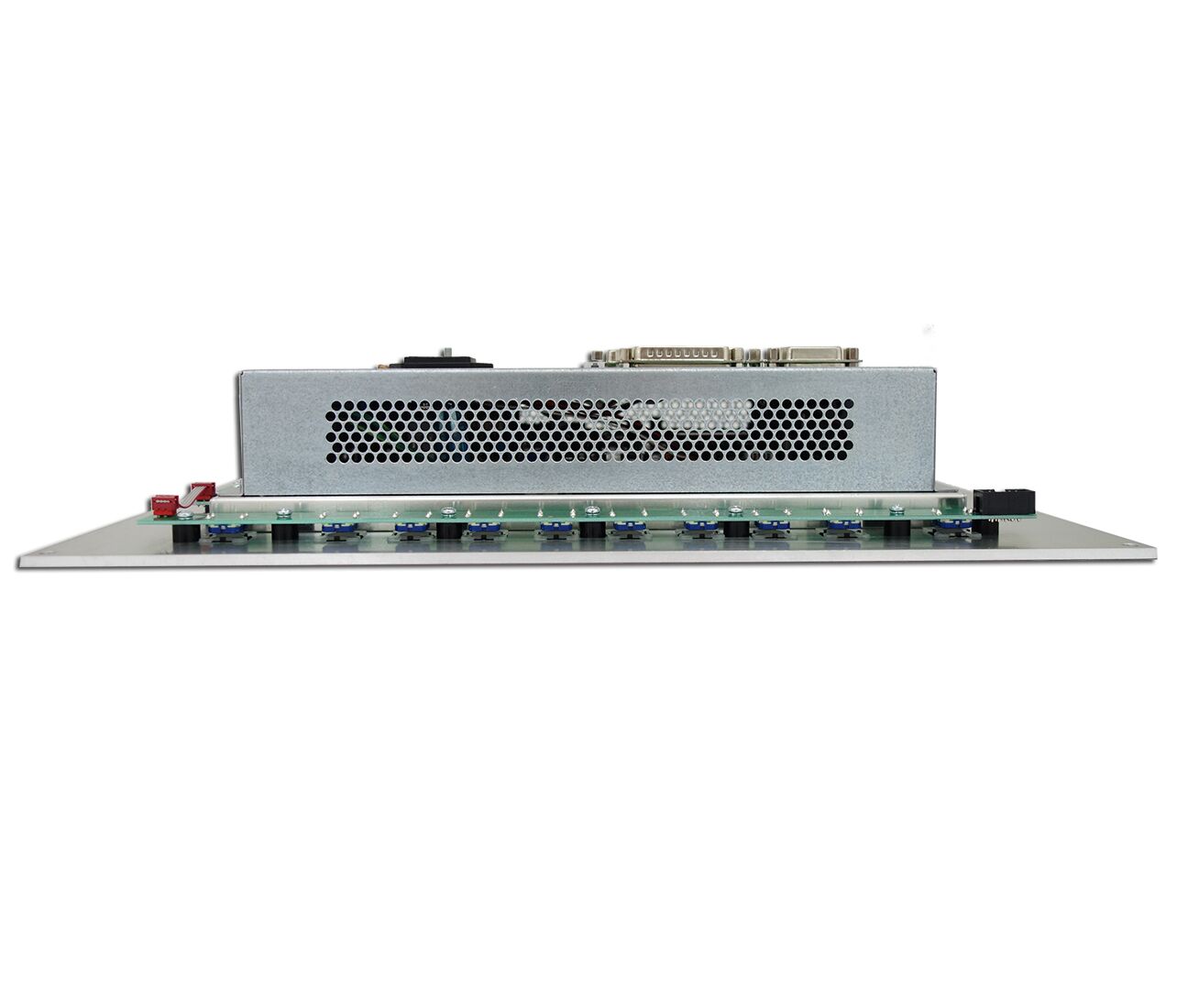

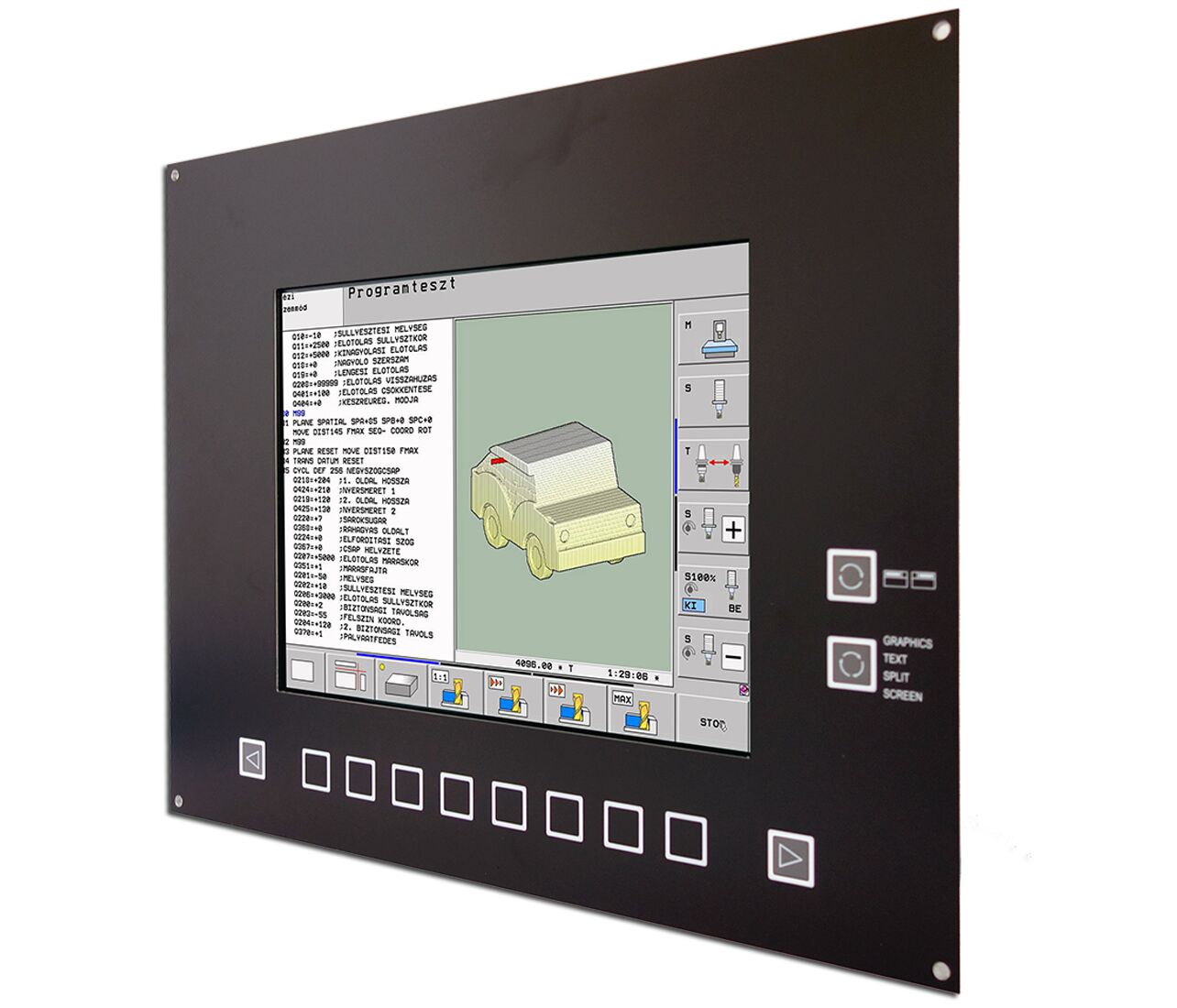

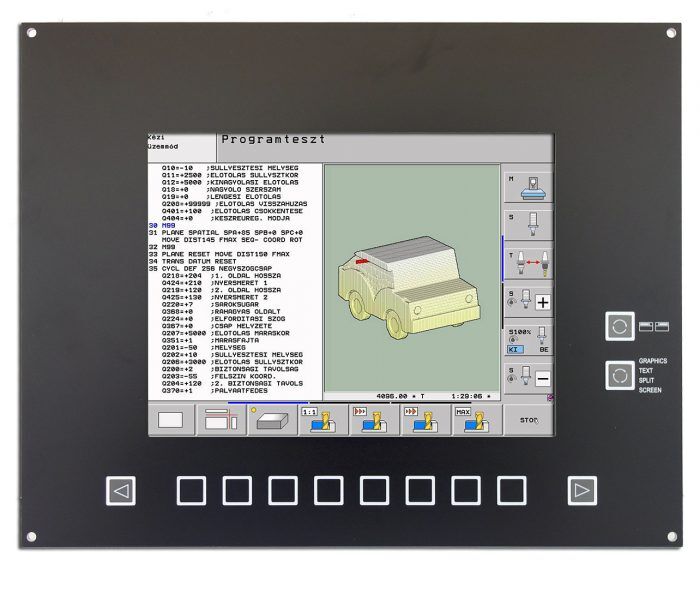

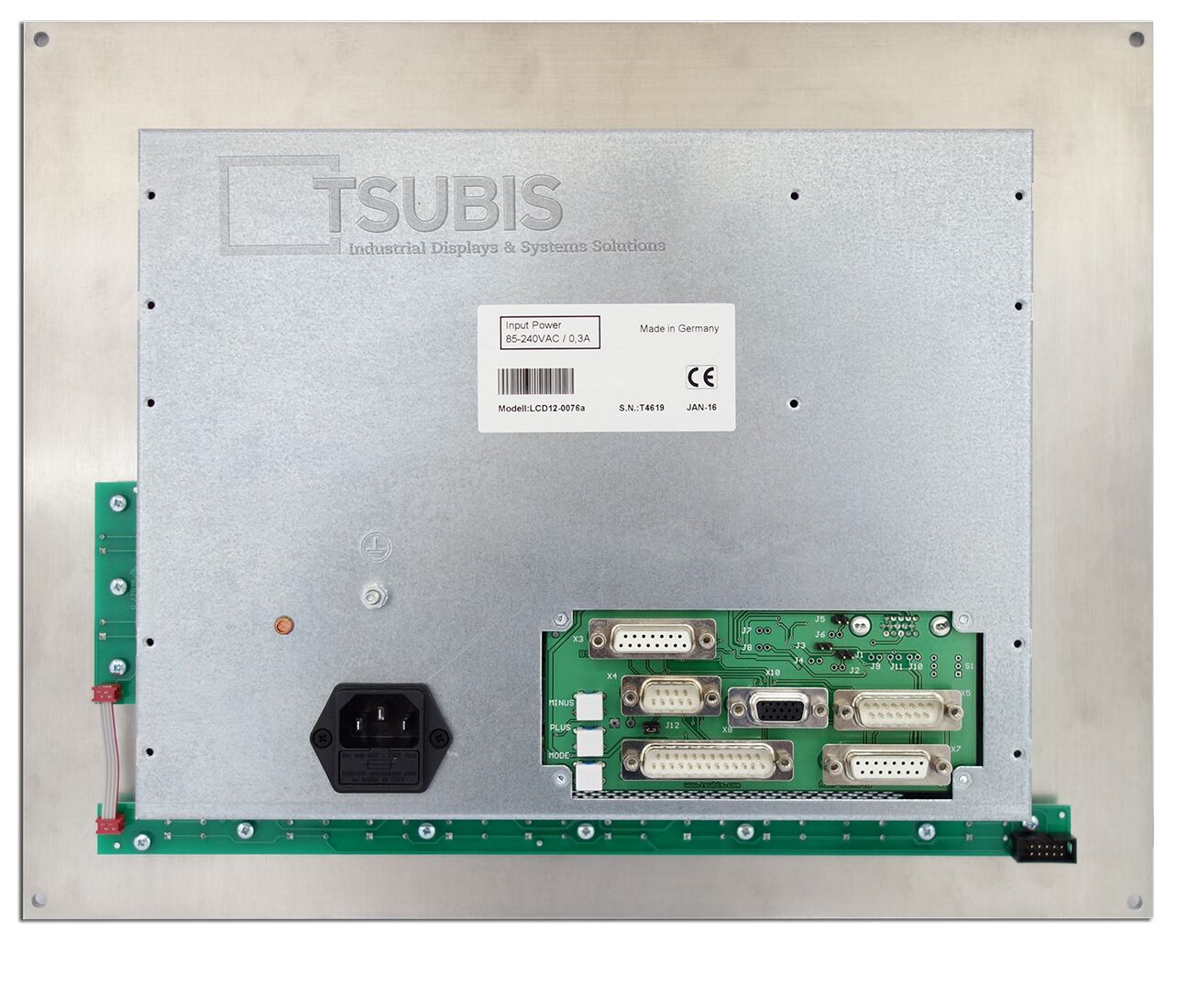

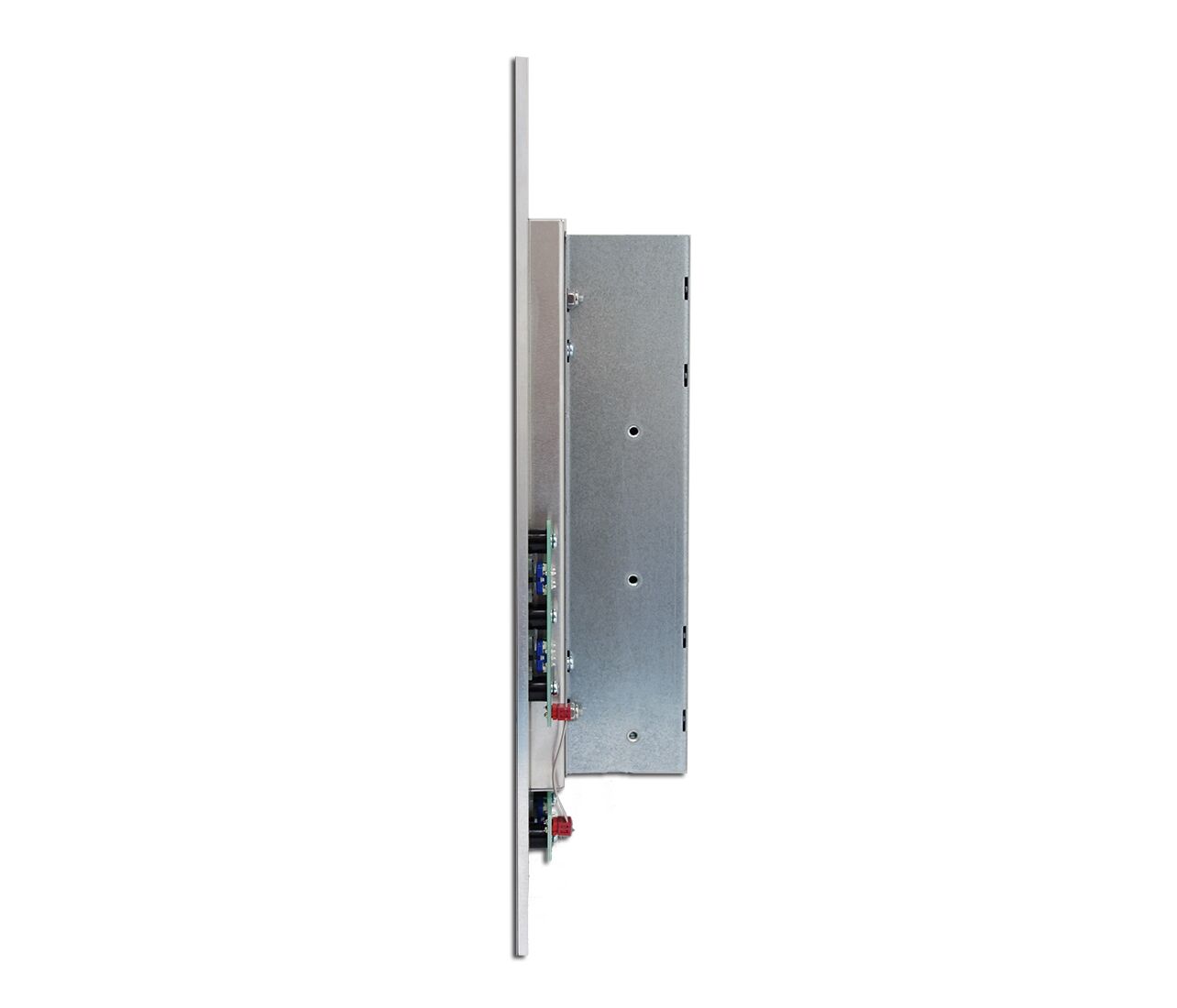

12,1″ TFT replacement monitor for HEIDENHAIN BC110, BC110B, BC10BF front plate with keyboard.
This Heidenhain BC110 monitor is a modern 12.1″ colour TFT LCD replacement display for the original 14″ colour CRT monitor that was fitted to the Heidenhain TNC 406/407, TNC 415, TNC 425, TNC 426 controllers.
HEIDENHAIN Monitor Codes:
Id.Nr. 367 957-01
Id.Nr. 260 520-01
Id.Nr. 374 964-21
Id.Nr. 254 740-01
BC 110, BC 110B, BC 110BF Monitor (Front plate Version)
12,1” TFT Idustrial monitor with integrated keyboard as replacement for 14” CRT monitor BC110/BC110B/BC110BF.
- Manufacturer: Heidenhain
- Control: TNC 360, TNC 406, TNC 407, TNC 415, TNC 425, TNC 426, TNC 430
- Mechanical version: Front plate inklusive keyboard
- Input signal: D-SUB connector 15-pin / 2-row
- Keyboard connector: post connector 10-pin / 2-row
- Dimensions (WxH): 249 x 188 mm
- Power supply: 85-240V AC
- Heidenhain Monitor Codes: ID.Nr. 367 957-01 ID.Nr. 260 520-01 ID.Nr. 374 964-21 ID.Nr. 254 740-01
