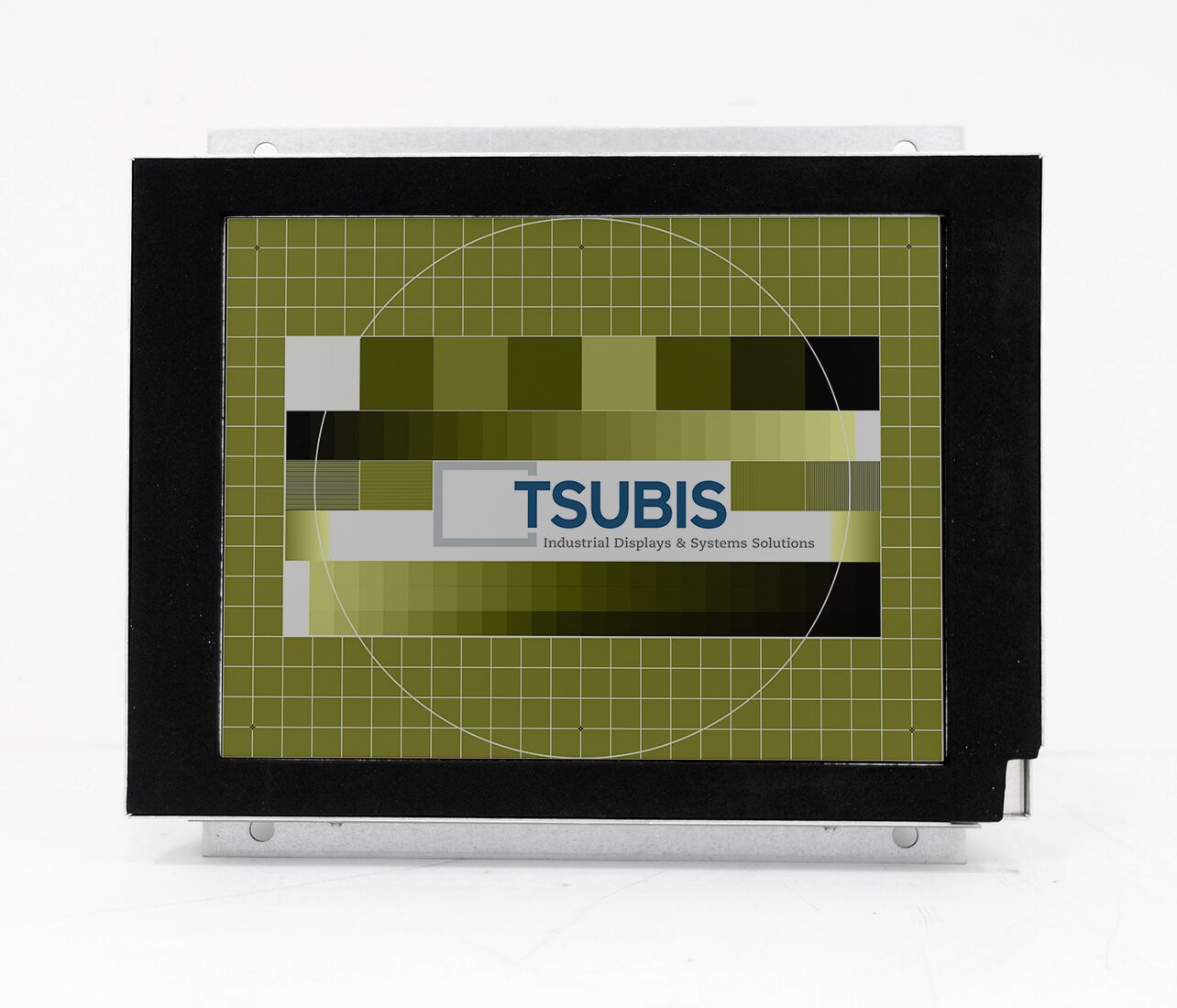

LCD84 0079 FANUC 6T 6B 6M 0 0M 0T 6 6MB 6BT 11 11M 15 M 11T 1 1

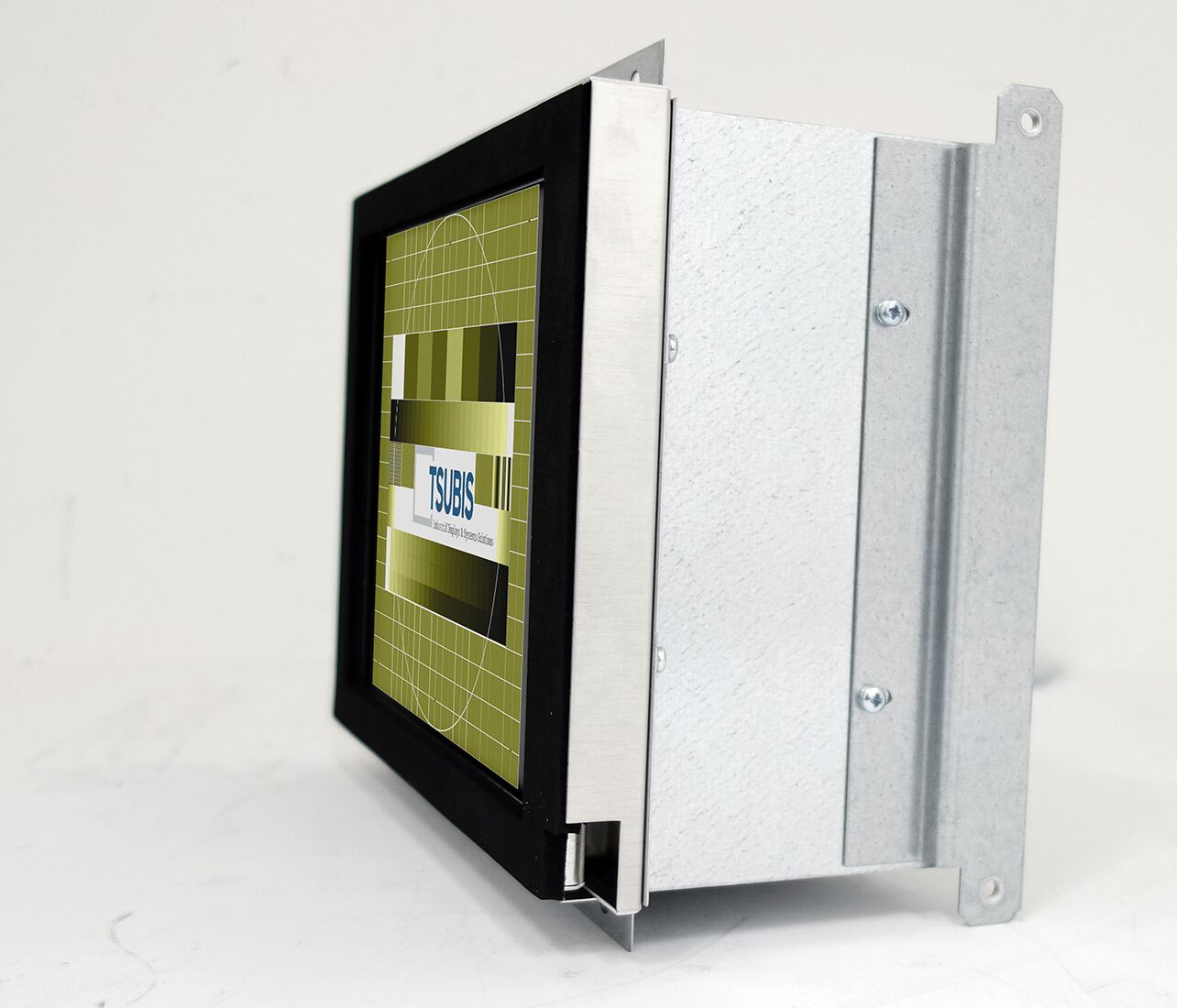

LCD84 0079 FANUC 6T 6B 6M 0 0M 0T 6 6MB 6BT 11 11M 15 M 11T 2 1

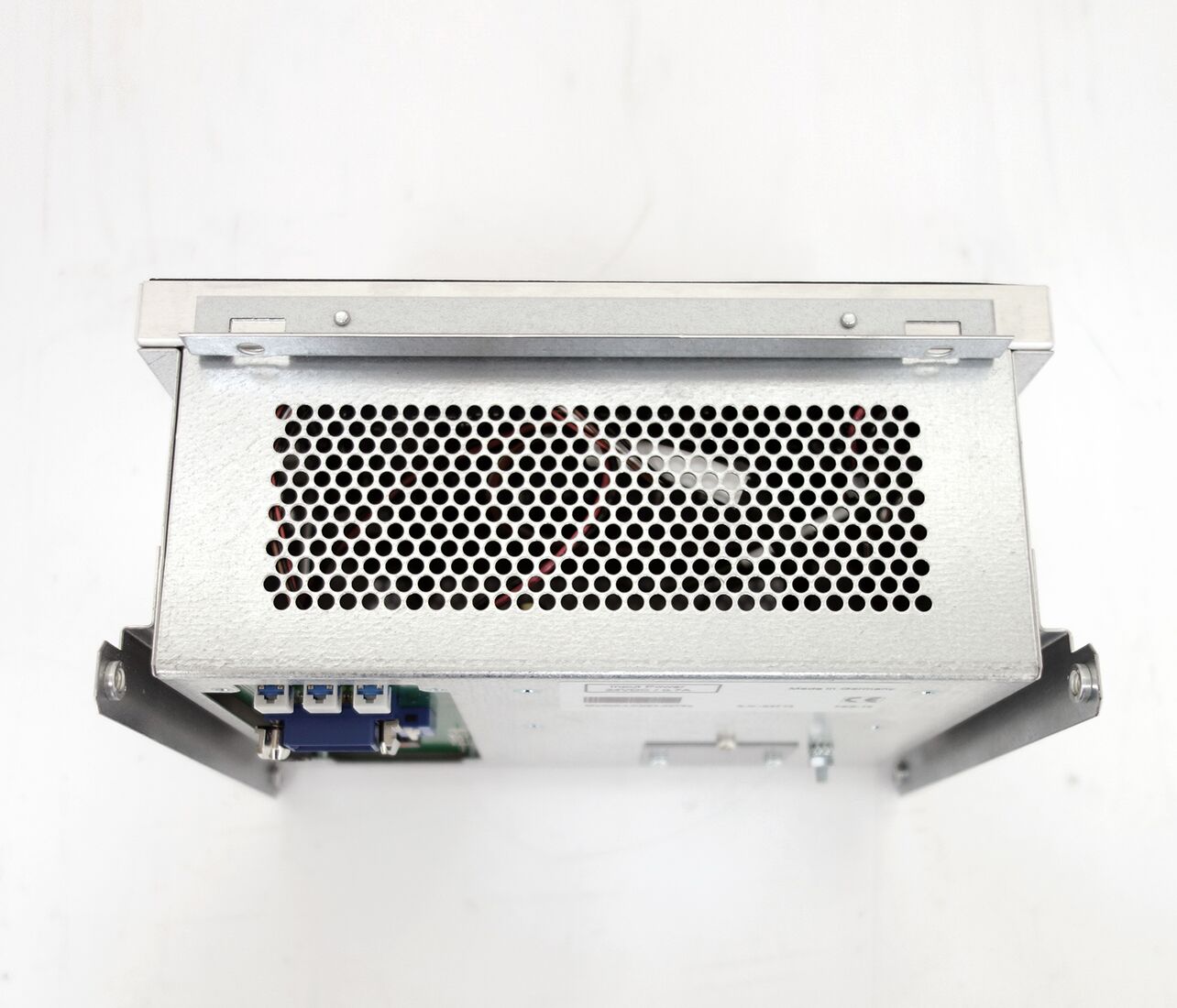

LCD84 0079 FANUC 6T 6B 6M 0 0M 0T 6 6MB 6BT 11 11M 15 M 11T 3 1

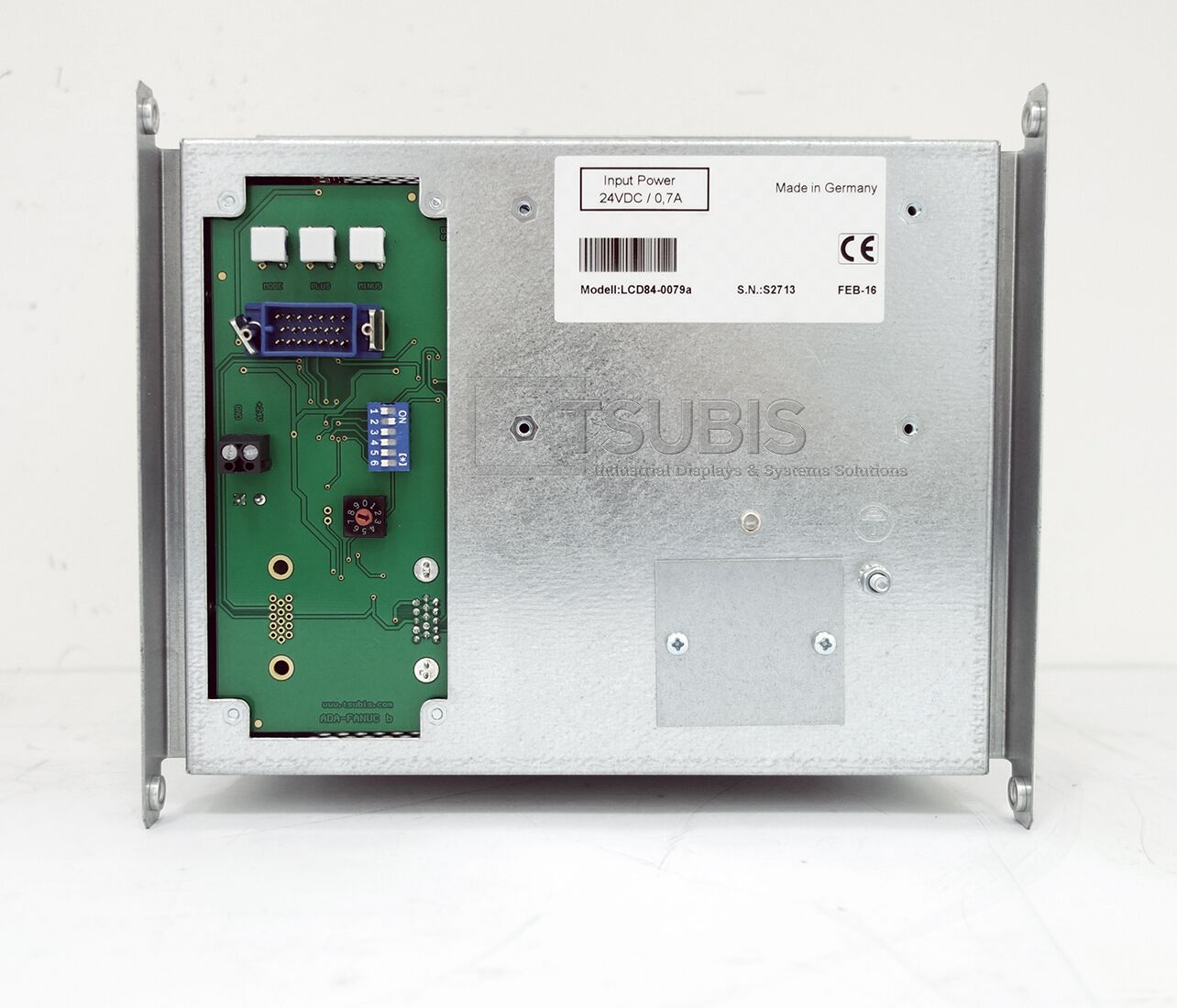

LCD84 0079 FANUC 6T 6B 6M 0 0M 0T 6 6MB 6BT 11 11M 15 M 11T 4 1

Replacement monitor for FANUC A61L-0001-0071, A61L-0001-0072, A61L-0001-0076, A61L-0001-0079, A61L-0001-0086

FANUC monitor spare part for 9“ monochrome on CNC machines

This Fanuc A61L-0001-0072 monitor is a modern 8.4″ monochrome TFT LCD replacement display for the original 9″ monochrome CRT monitor that was fitted to the Fanuc 0, 0M, 0T, 6, 6MB, 6BT, 6T, 6B, 6M11, 11M, 11T controllers.
Fanuc Monitor-Codes:
A61L-0001-0071
A61L-0001-0072
A61L-0001-0076
A61L-0001-0079
A61L-0001-0086
A61L-0001-0092
A61L-0001-0093
For the video connection, just plug in your existing video cable. Our LCD monitor is fitted with the same blue Honda connector.

Availability: in stock
Shipping of goods within 24 hours after order entrance

Email us about LCD84-0079

SKU: LCD84-0079 Categories: Spare parts CNC & PLC, Replacement monitors, FANUC

Description
Downloads

8,4” TFT LCD replacement monitor for Fanuc 9” CRT Monitor (monochrom).

Manufacturer: FANUC
Control: System 6T,6B,6M,0, 0M, 0T, 6, 6MB, 6BT, 11, 11M,15-M, 11T
Monitor Hersteller Codes: D9MM-11A, MDT947B1A, MDT947B-1B, TX-901AB, KF-M7099H
Mechanical version: Chassis
Input signal: 20 pol. Honda connector blue
Power supply: 24 V DC
CRT Units: A02B-0120-C051/TAR A02B-0120-C041/TAR A02B-0210-C111, A02B-0091-C052
Fanuc Monitor Codes: A61L-0001-0071,A61L-0001-0072, A61L-0001-0076, A61L-0001-0079, A61L-0001-0086, A61L-0001-0092, A61L-0001-0093
