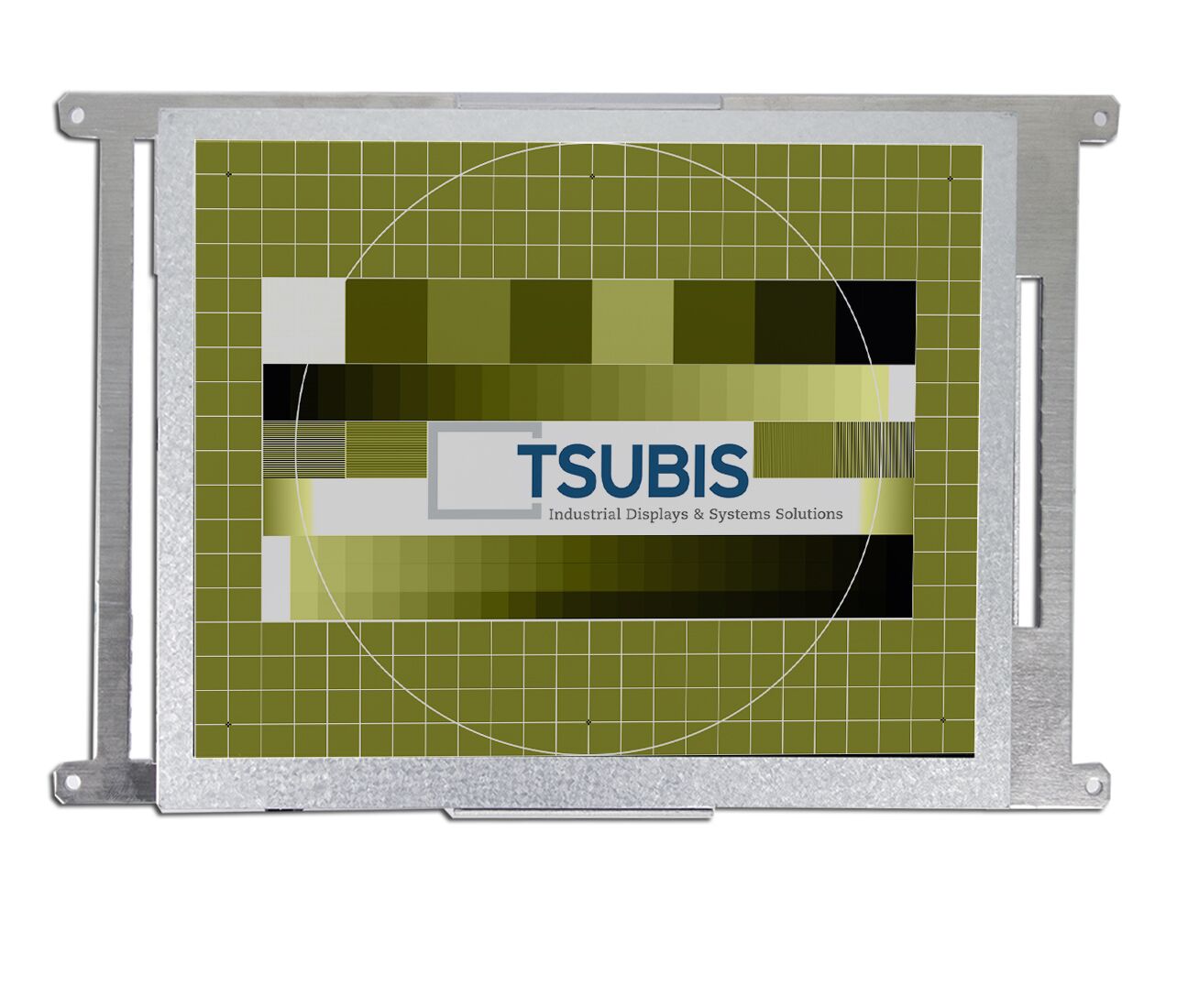

8,4” TFT Monitor as a replacement for ENGEL / KEBA LJ089MB2S01
This 8.4″ industrial Monitor replaces the EL-Displays Sharp LJ640U32 and LJ640U34 in the following ENGEL / KEBA control unit as a control Monitor for injection molding machines.
KEBA Mat. No. 13846, ENGEL Parts No.: 02203-6334
It is compatible with the systems:
Angel EC88 EL , Angel EC100-A02
Angel RC90, Angel RC100-A01

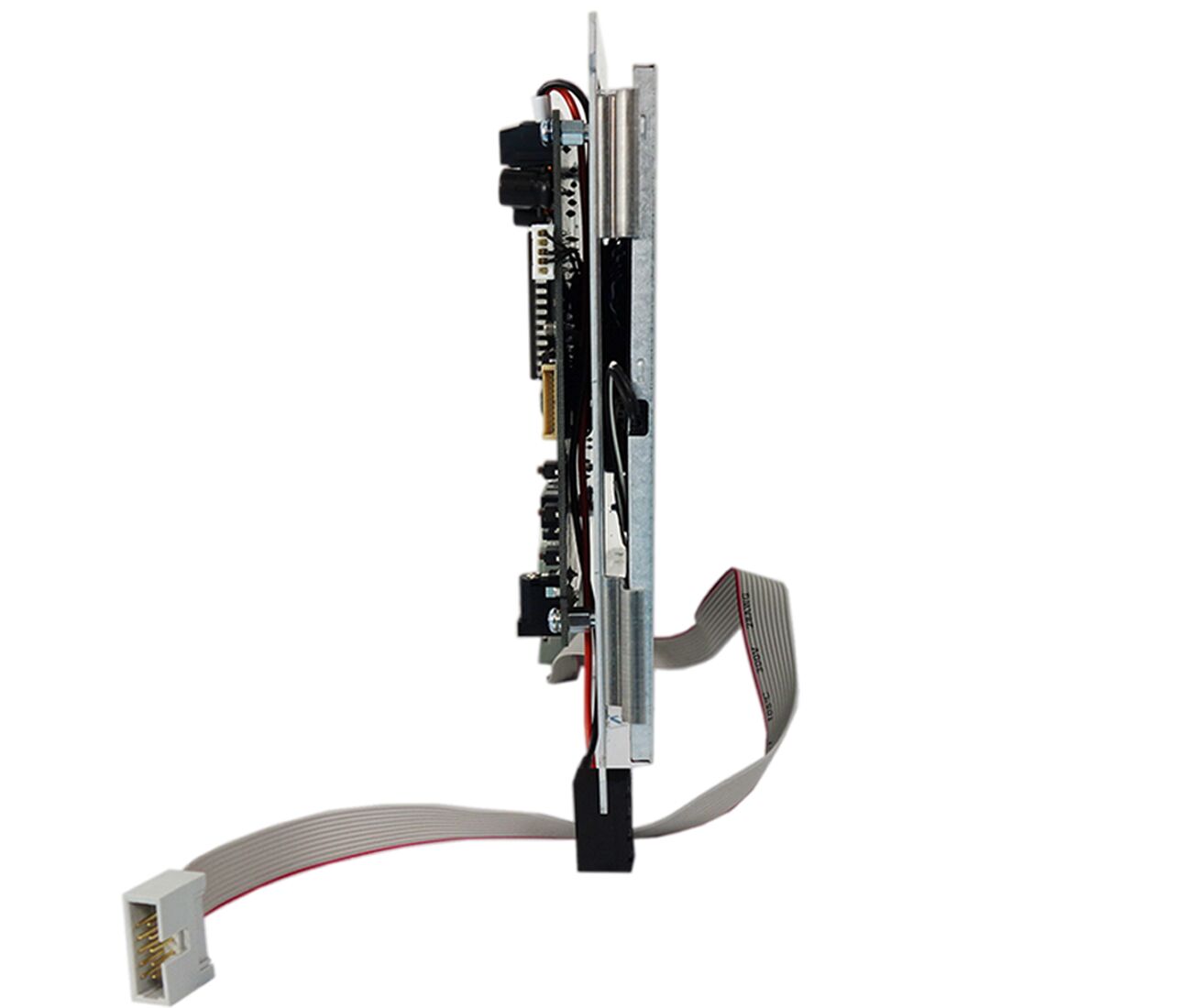

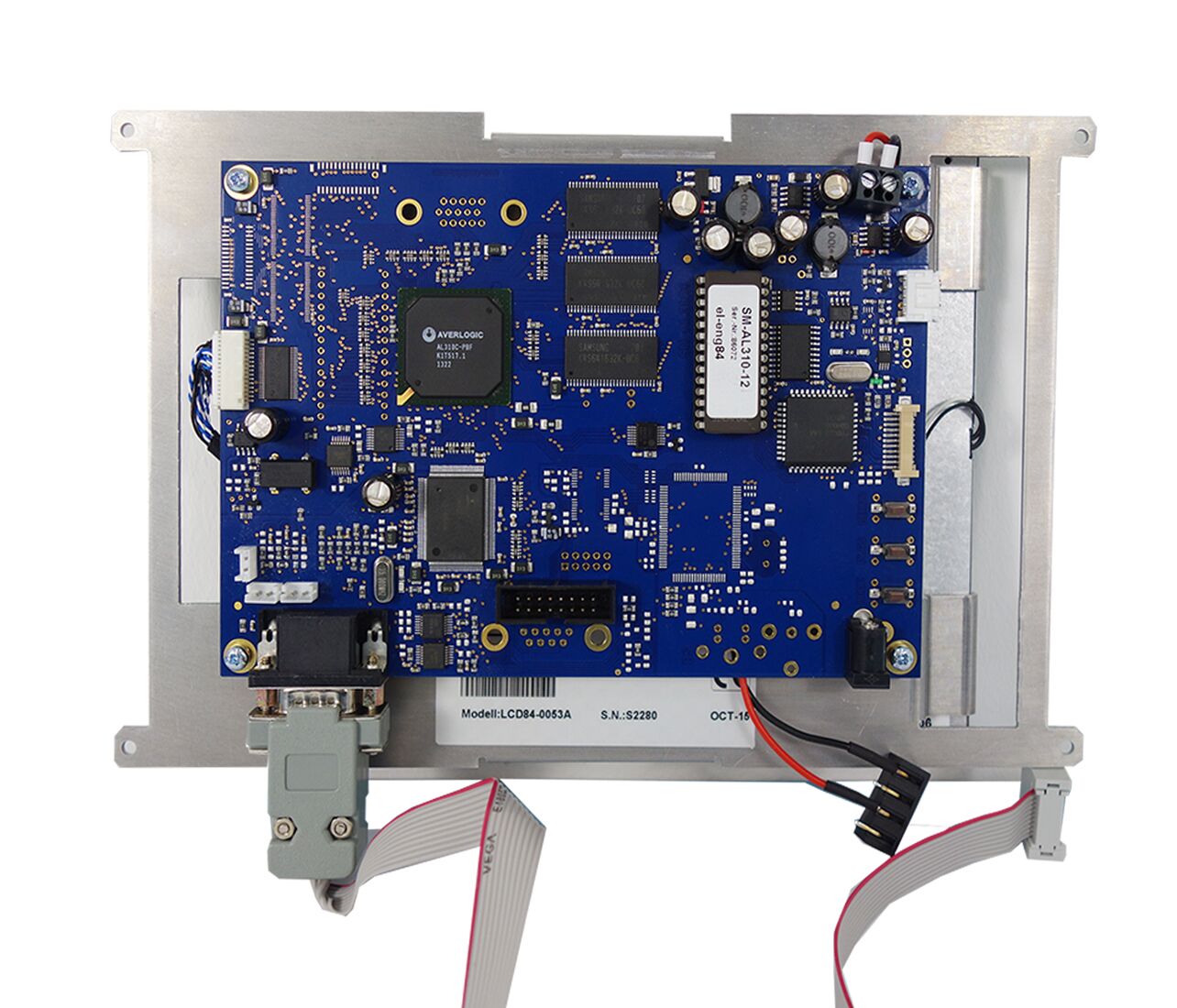

It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications. The video connection is made via the supplied adapter cable (see photo). The 15 pin HD-Sub connector (3 rows of pins) connects to the new monitor, and the 10 pin header connector attaches to your machine controller. The monitor operates from a 12 VDC supply via the supplied power cable (see photo).
