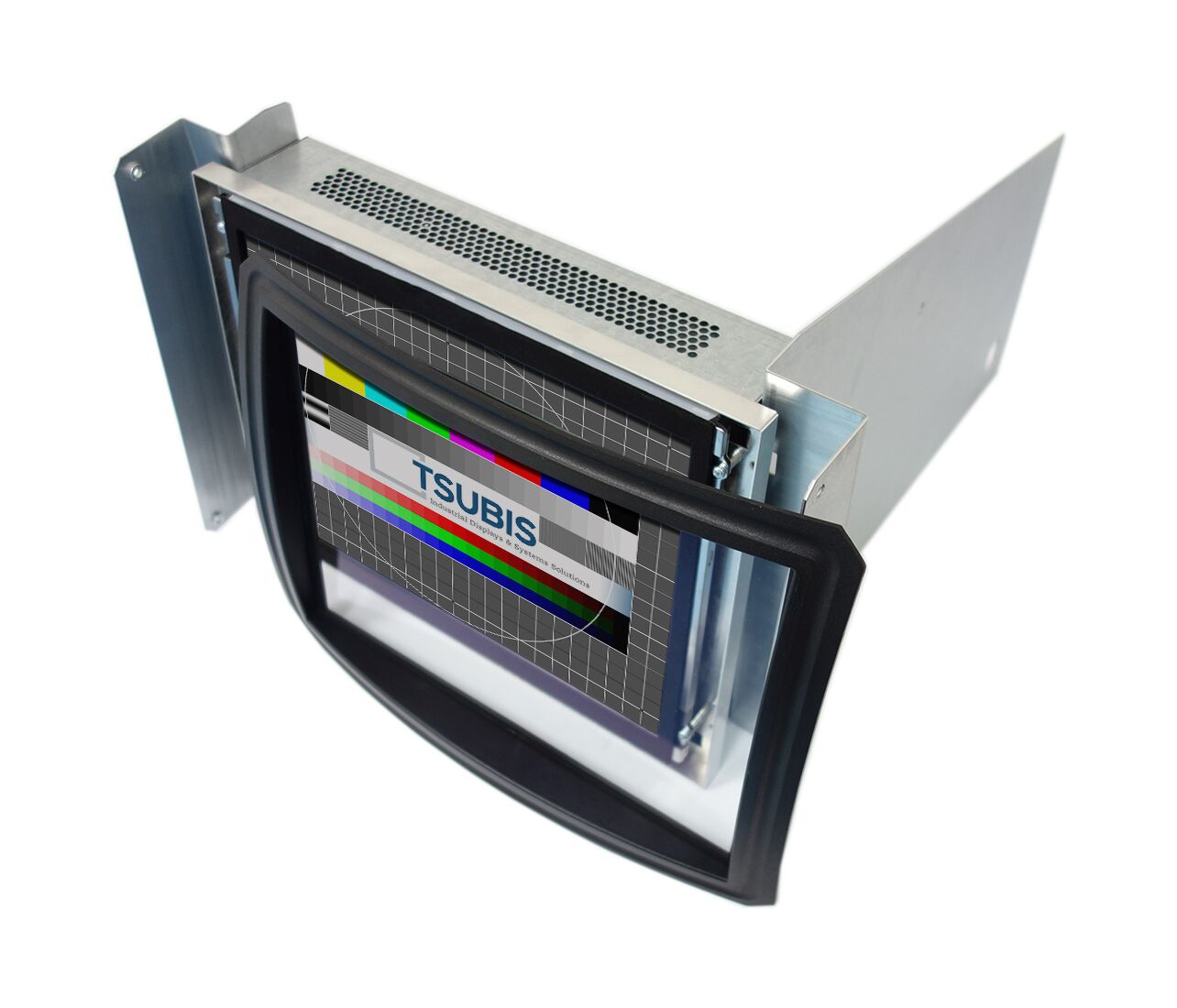

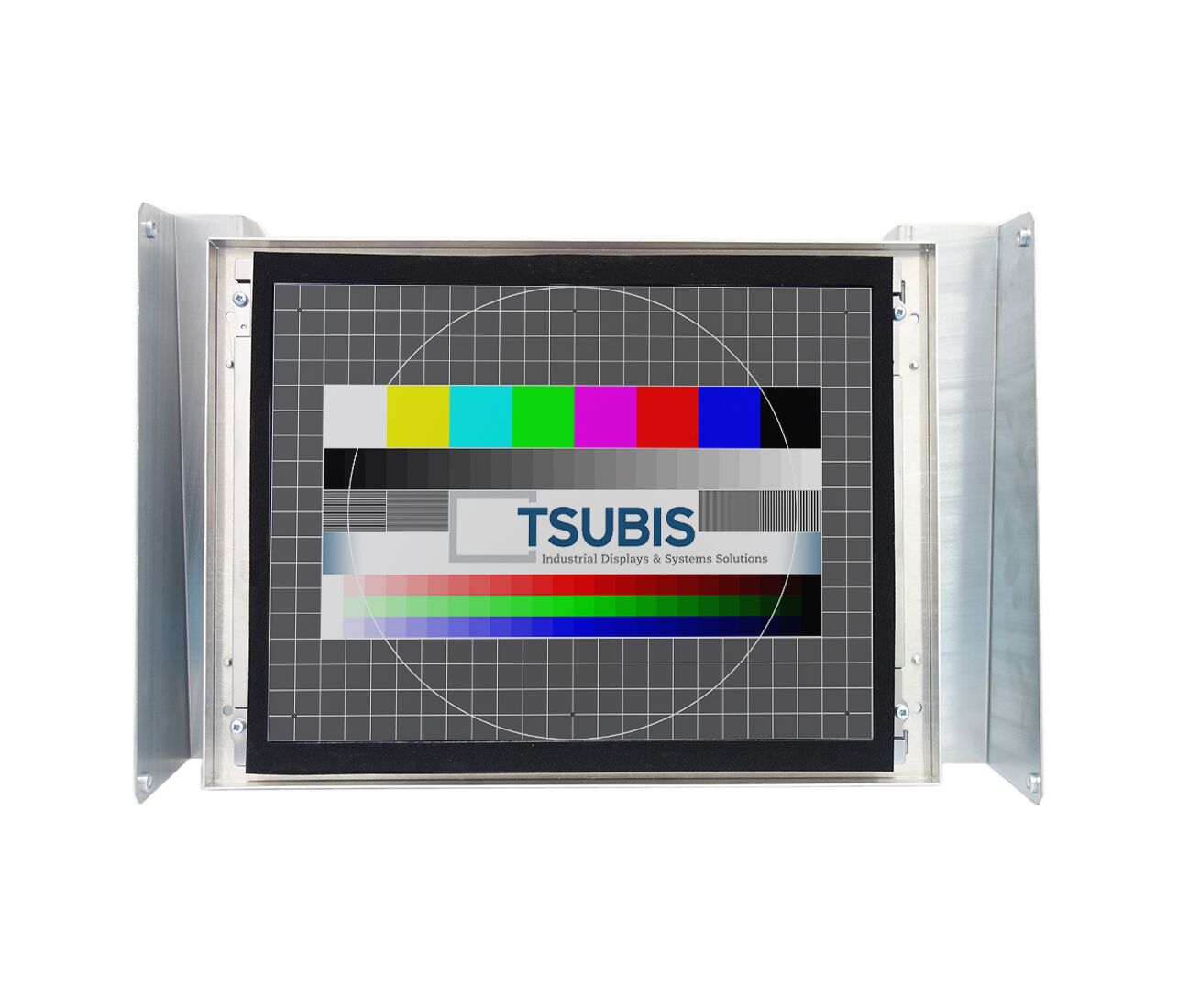

12,1” TFT replacement monitor for DECKEL MAHO MILL PLUS
This 12.1″ TFT LCD monitor is a replacement for the original 14″ monochrome CRT that is fitted to the Deckel Maho Mill Plus. Please note that a 12.1″ TFT LCD gives the same viewing area as a 14″ CRT.

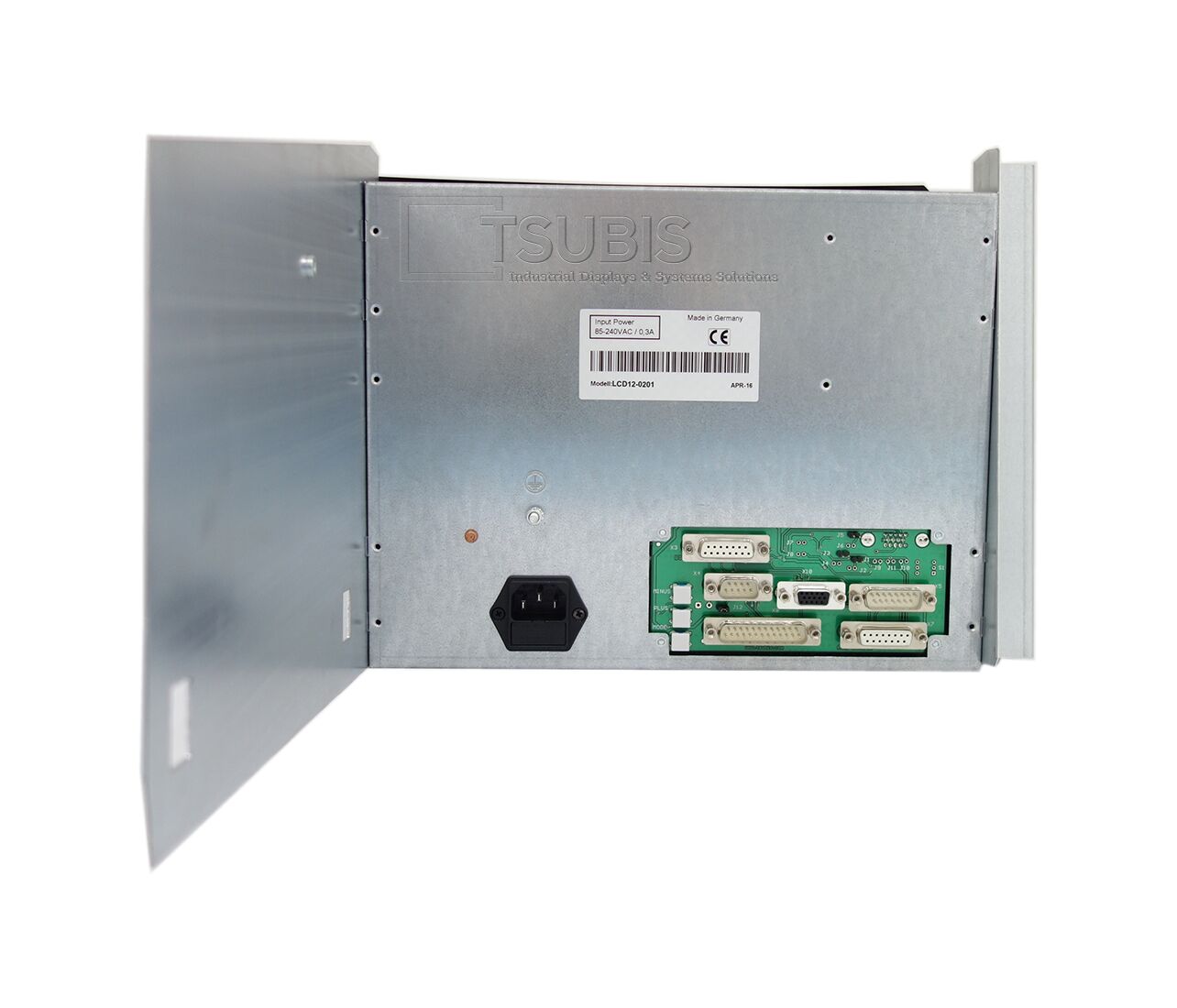

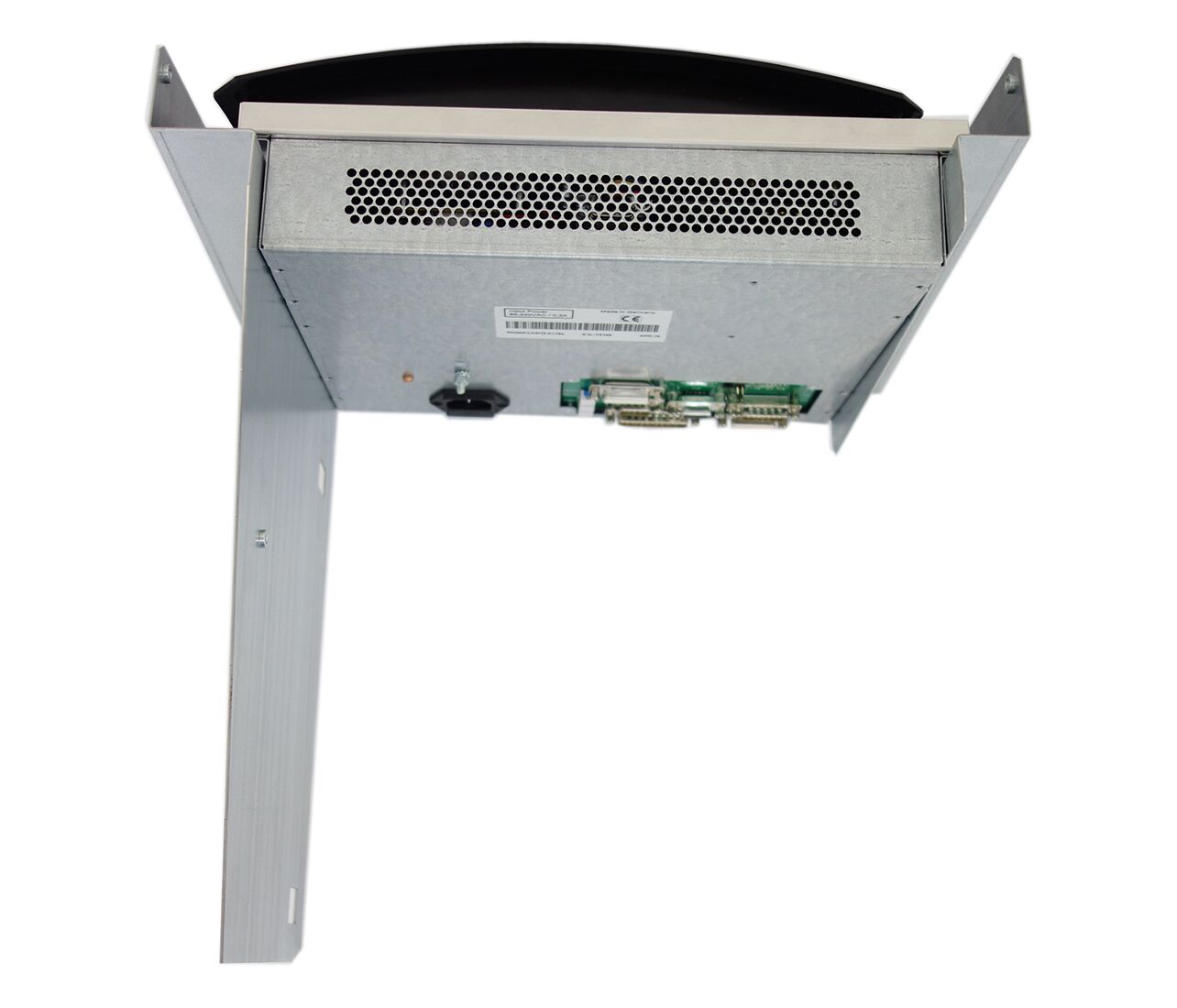

It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old CRT and fit the new LCD monitor using the supplied side mounting brackets. There is no need for modifications. The video connection is made via a 15 pin (3 row) D-sub cable or 15 pin (2 row) D-sub connector. The monitor operates from a 85-240 VAC supply.
