Replacement monitor for Charmilles Roboform and Robofil

Replacement monitor for Charmilles Roboform and Robofil

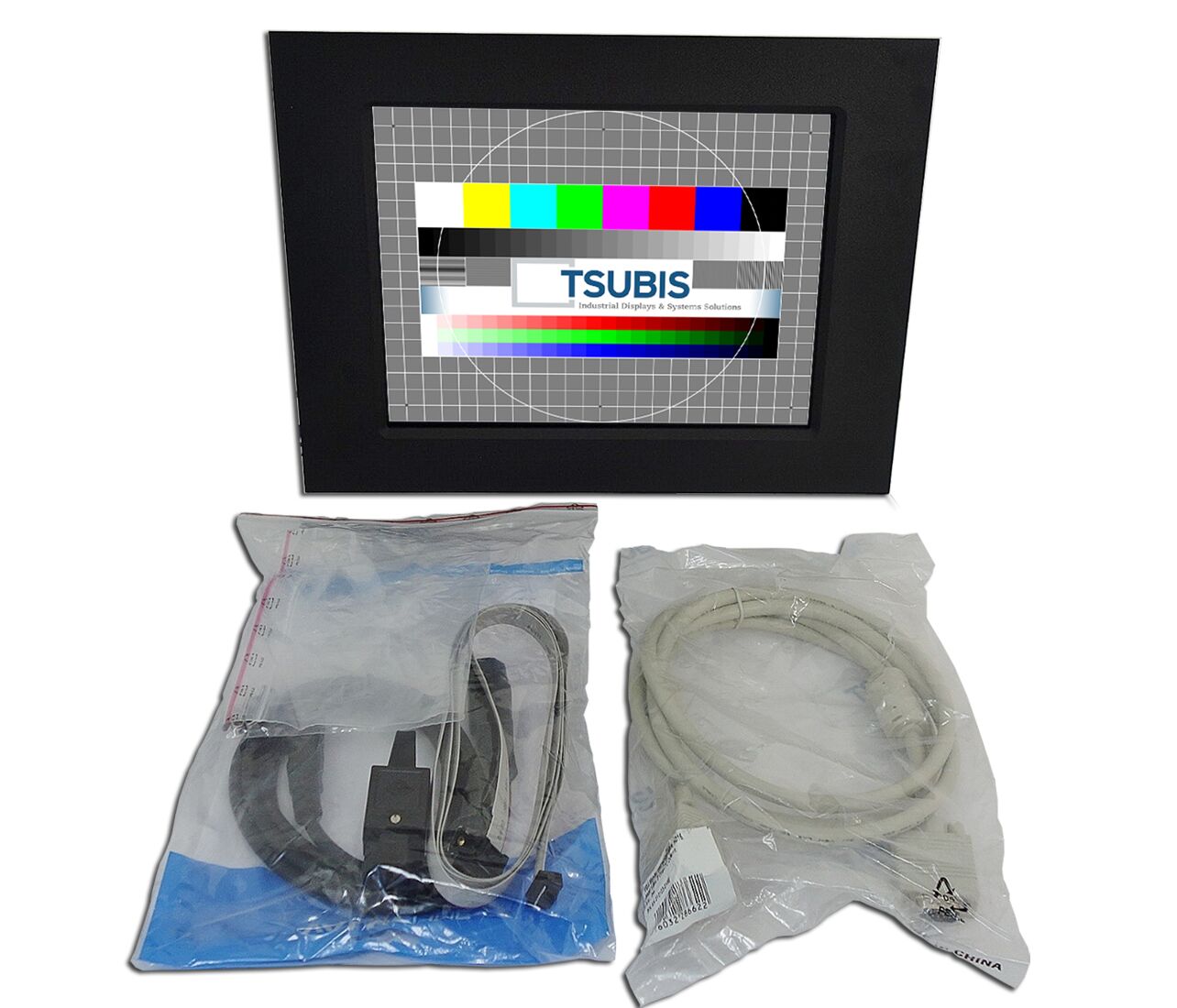

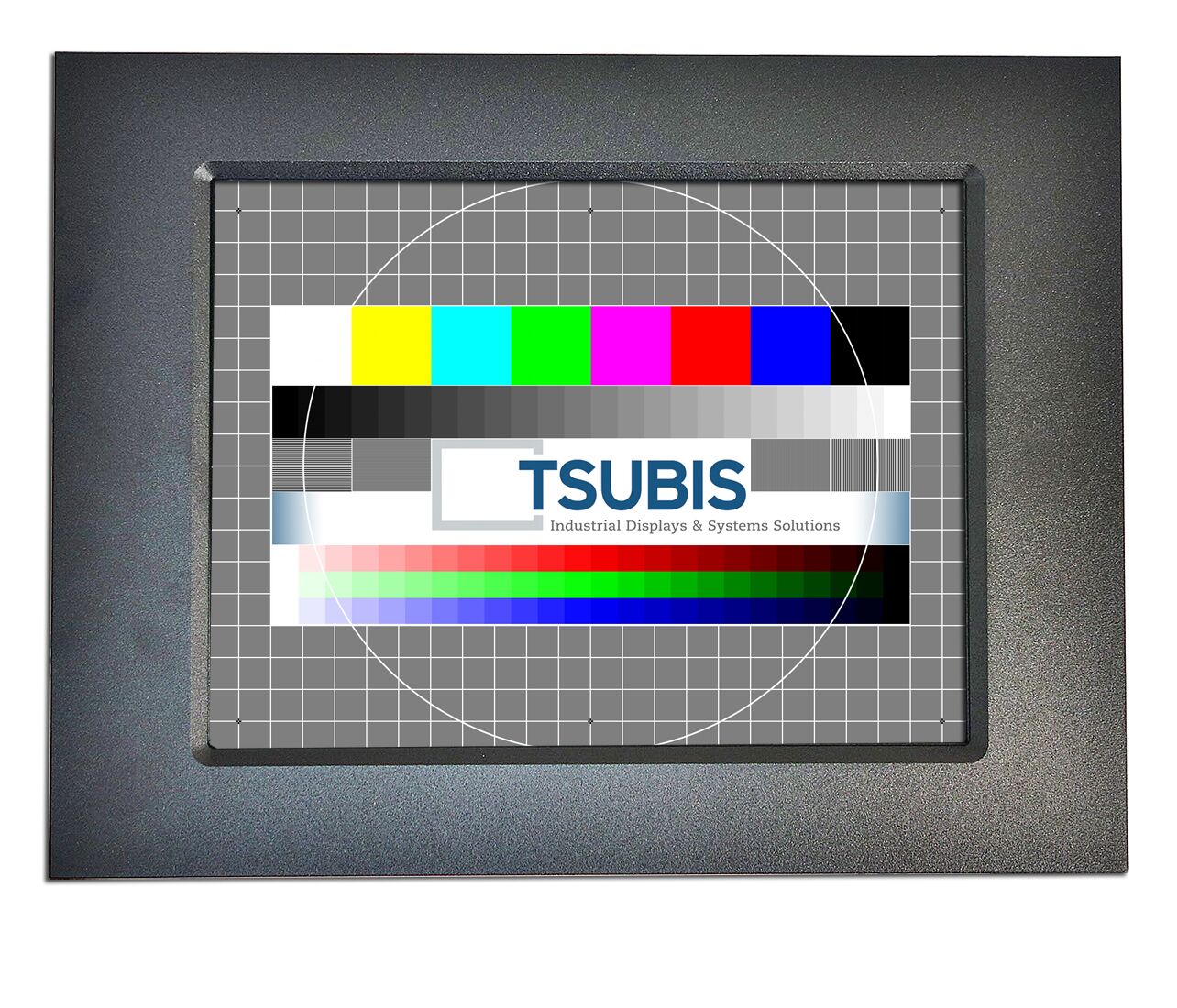

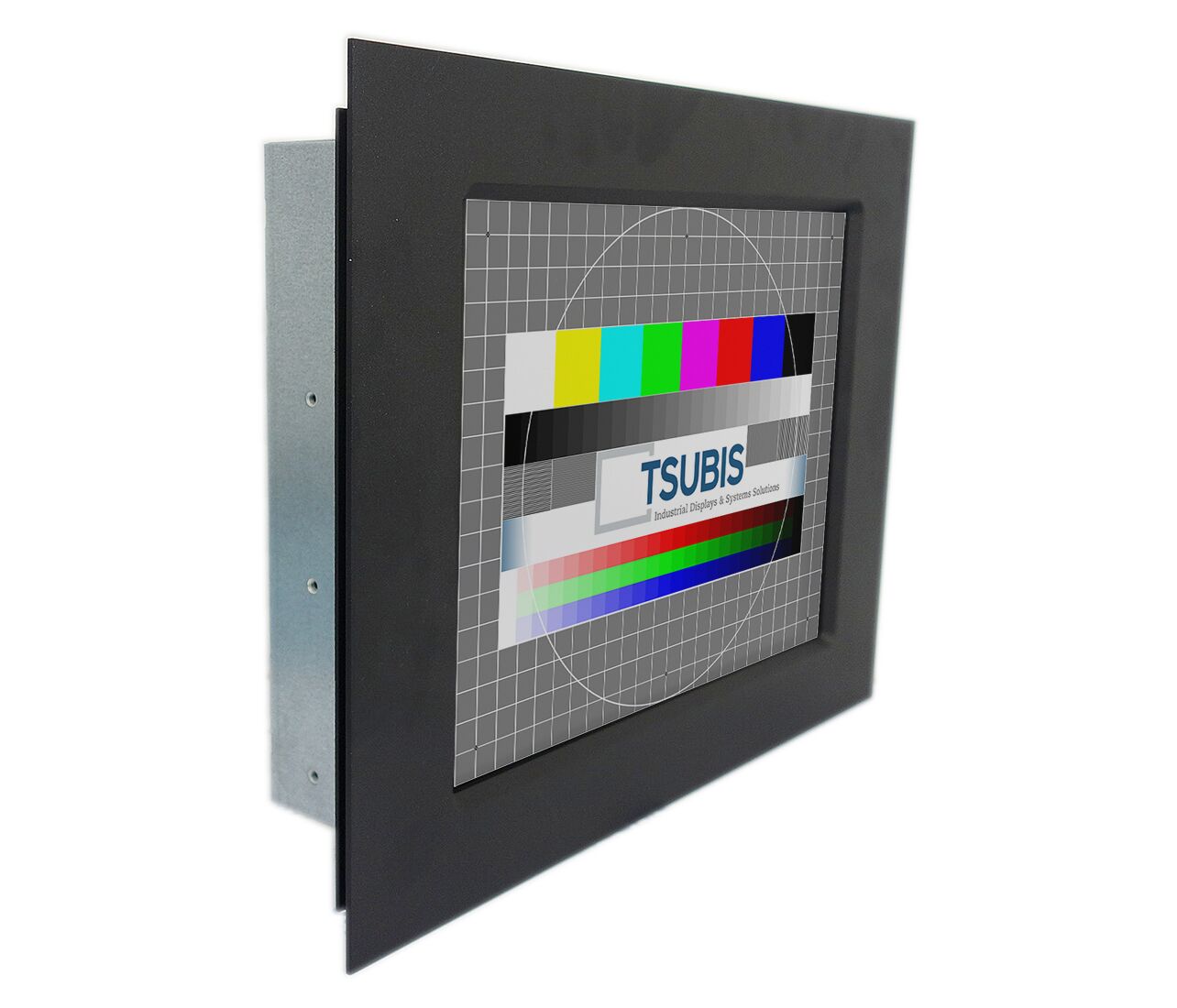

12,1” TFT replacement monitor for CHARMILLES, ROBOFORM and ROBOFIL.

This Charmilles Robofil 2020 monitor is a modern 12.1″ colour TFT LCD replacement display for the original 14″ colour CRT monitor that was fitted to the Roboform 30/ 31/35/40/41/50/51/54/55, Roboform 20/20A/22/200/400, Roboform 2000/4000/2400/810, Robofil 290/290 AWT/295/300/310/510, Robofil 2020/2030/4020/4030/6020 controllers.
Original monitor: Charmilles Robofill 14″ CRT
Controller: Charmilles Roboform 30/ 31/35/40/41/50/51/54/55, Roboform 20/20A/22/200/400, Roboform 2000/4000/2400/810, Robofil 290/290 AWT/295/300/310/510, Robofil 2020/2030/4020/4030/6020
Examples or compatible Monitor Codes: PRIMELCO PRI1451CLR04, LUCIUS BAER CC14VAO-CH, 26S14M003 Monitor, CRT ASSY 14″ colour, LUCIUS BAER CC14V

  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
SKU: LCD12-0033 Categories: , ,
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/charmilles-en/replacement-monitor-for-charmilles-roboform-and-robofil/ Replacement monitor for Charmilles Roboform and Robofil 2019-01-25 18:00:56 <strong>12,1'' TFT replacement monitor for CHARMILLES, ROBOFORM and ROBOFIL.</strong> This Charmilles Robofil 2020 monitor is a modern 12.1" colour TFT LCD replacement display for the original 14" colour CRT monitor that was fitted to the Roboform 30/ 31/35/40/41/50/51/54/55, Roboform 20/20A/22/200/400, Roboform 2000/4000/2400/810, Robofil 290/290 AWT/295/300/310/510, Robofil 2020/2030/4020/4030/6020 controllers. <strong>Original monitor:</strong> Charmilles Robofill 14" CRT <strong>Controller:</strong> Charmilles Roboform 30/ 31/35/40/41/50/51/54/55, Roboform 20/20A/22/200/400, Roboform 2000/4000/2400/810, Robofil 290/290 AWT/295/300/310/510, Robofil 2020/2030/4020/4030/6020 <strong>Examples or compatible Monitor Codes: </strong>PRIMELCO PRI1451CLR04, LUCIUS BAER CC14VAO-CH, 26S14M003 Monitor, CRT ASSY 14" colour, LUCIUS BAER CC14V
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

12,1” TFT LCD industrial monitor as replacement for colored 14” CRT monitor.

  • Manufacturer: CHARMILLES, ROBOFIL, ROBOFORM
  • Control: Roboform 30/ 31/35/40/41/50/51/54/55 Roboform 20/20A/22/200/400 Roboform 2000/4000/2400/810 Robofil 290/290 AWT/295/300/310/510 Robofil 2020/2030/4020/4030/6020SI

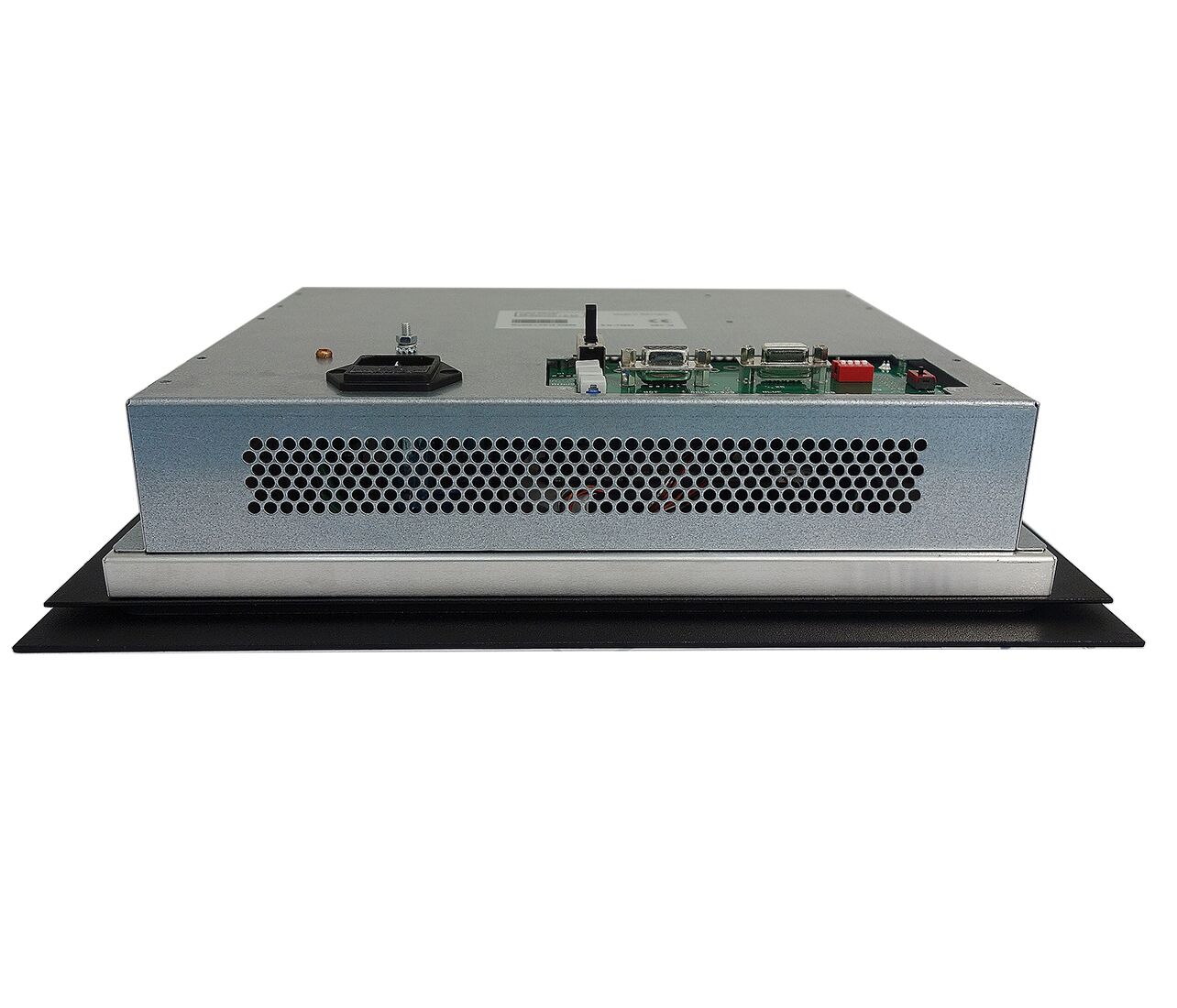

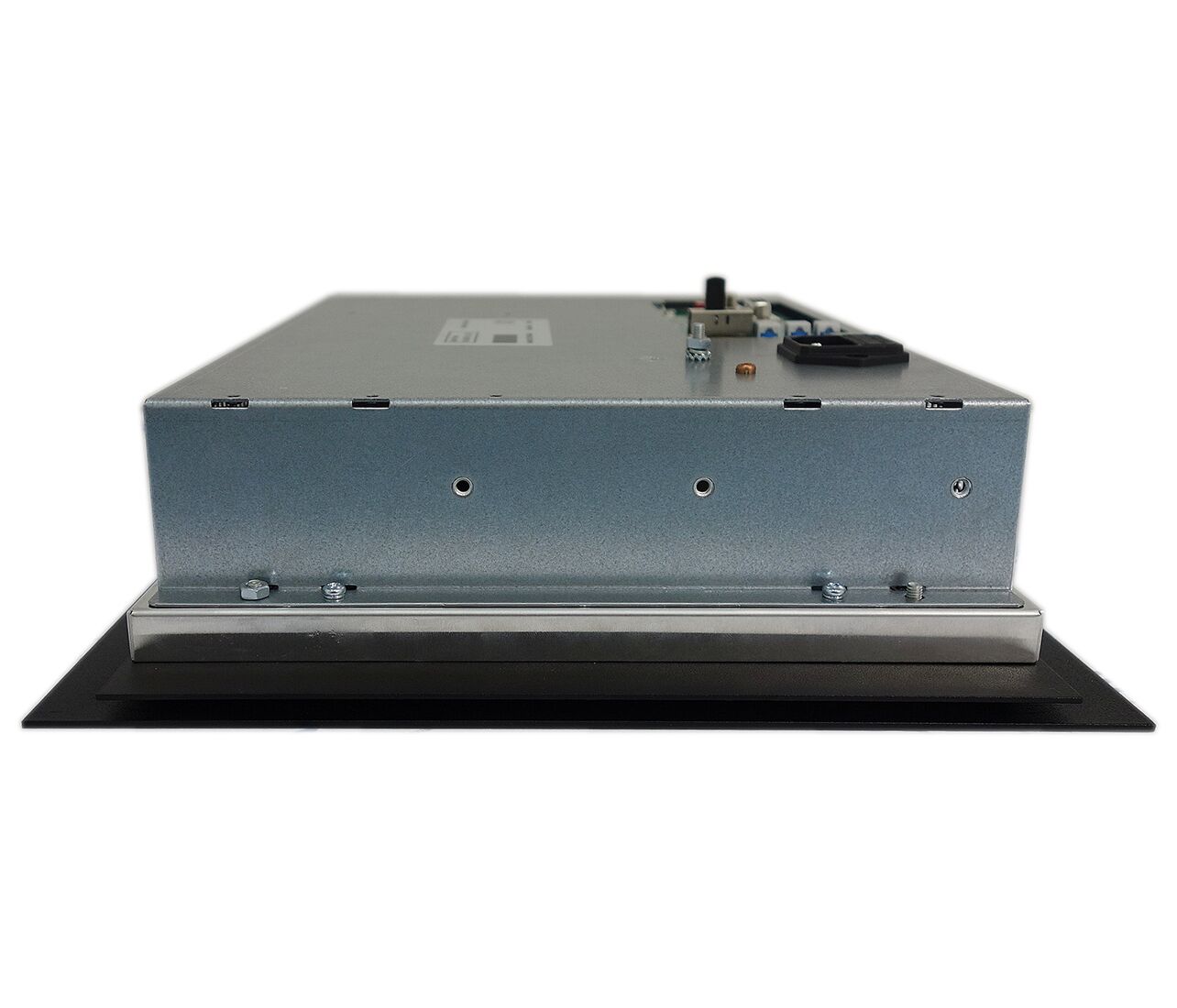

  • Mechanical version: Chassis with double Front plate

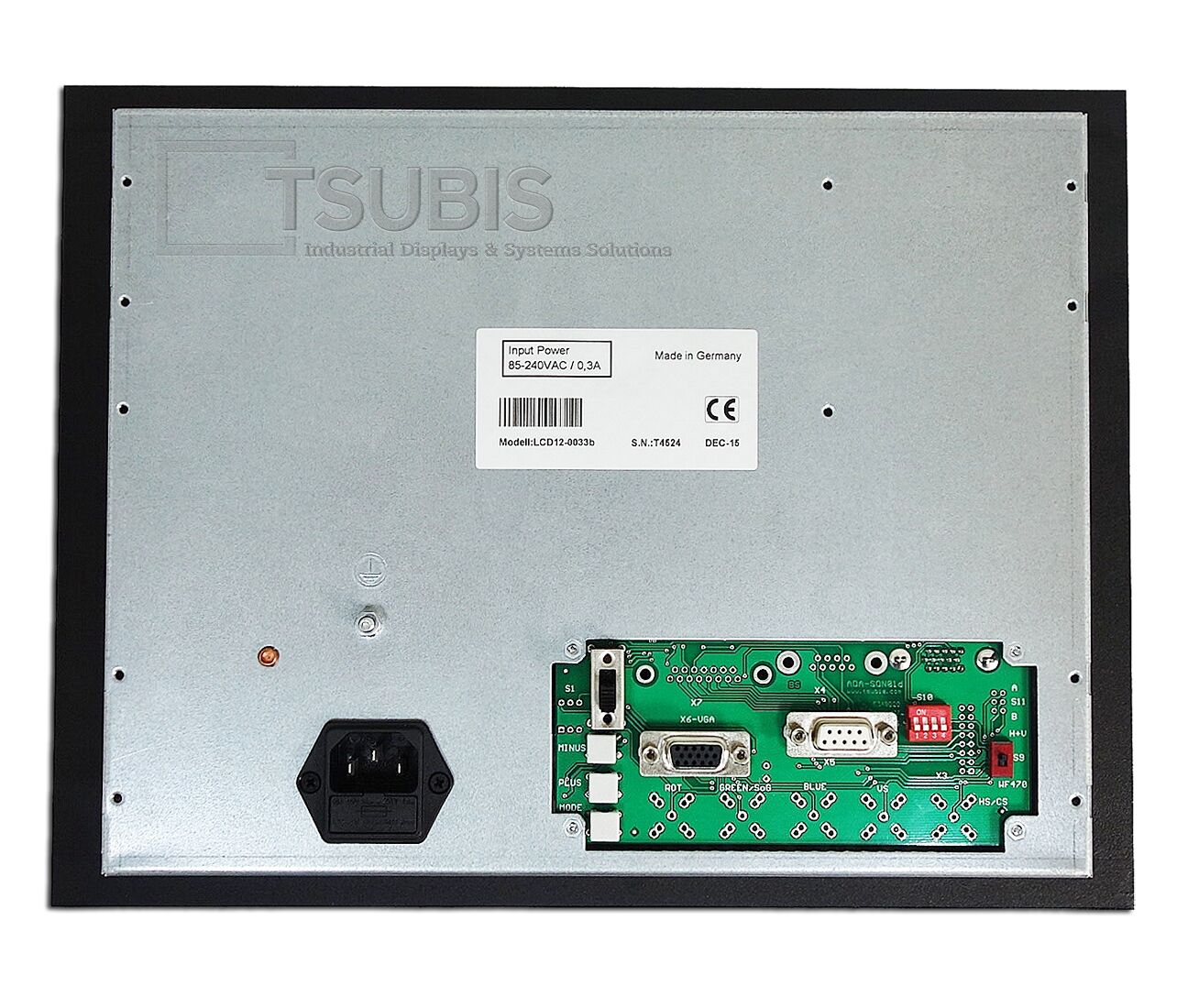

  • Input signal: D-SUB 9-pin 2-row / D-SUB 15-pin 3-row
  • Front Panel (WxH): 344 x 263 mm
  • Power supply: 85-240V AC
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/charmilles-en/replacement-monitor-for-charmilles-roboform-and-robofil/ Replacement monitor for Charmilles Roboform and Robofil 2019-01-25 18:00:56 <strong>12,1'' TFT replacement monitor for CHARMILLES, ROBOFORM and ROBOFIL.</strong> This Charmilles Robofil 2020 monitor is a modern 12.1" colour TFT LCD replacement display for the original 14" colour CRT monitor that was fitted to the Roboform 30/ 31/35/40/41/50/51/54/55, Roboform 20/20A/22/200/400, Roboform 2000/4000/2400/810, Robofil 290/290 AWT/295/300/310/510, Robofil 2020/2030/4020/4030/6020 controllers. <strong>Original monitor:</strong> Charmilles Robofill 14" CRT <strong>Controller:</strong> Charmilles Roboform 30/ 31/35/40/41/50/51/54/55, Roboform 20/20A/22/200/400, Roboform 2000/4000/2400/810, Robofil 290/290 AWT/295/300/310/510, Robofil 2020/2030/4020/4030/6020 <strong>Examples or compatible Monitor Codes: </strong>PRIMELCO PRI1451CLR04, LUCIUS BAER CC14VAO-CH, 26S14M003 Monitor, CRT ASSY 14" colour, LUCIUS BAER CC14V
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

pdf Datenblatt LCD12-0033
