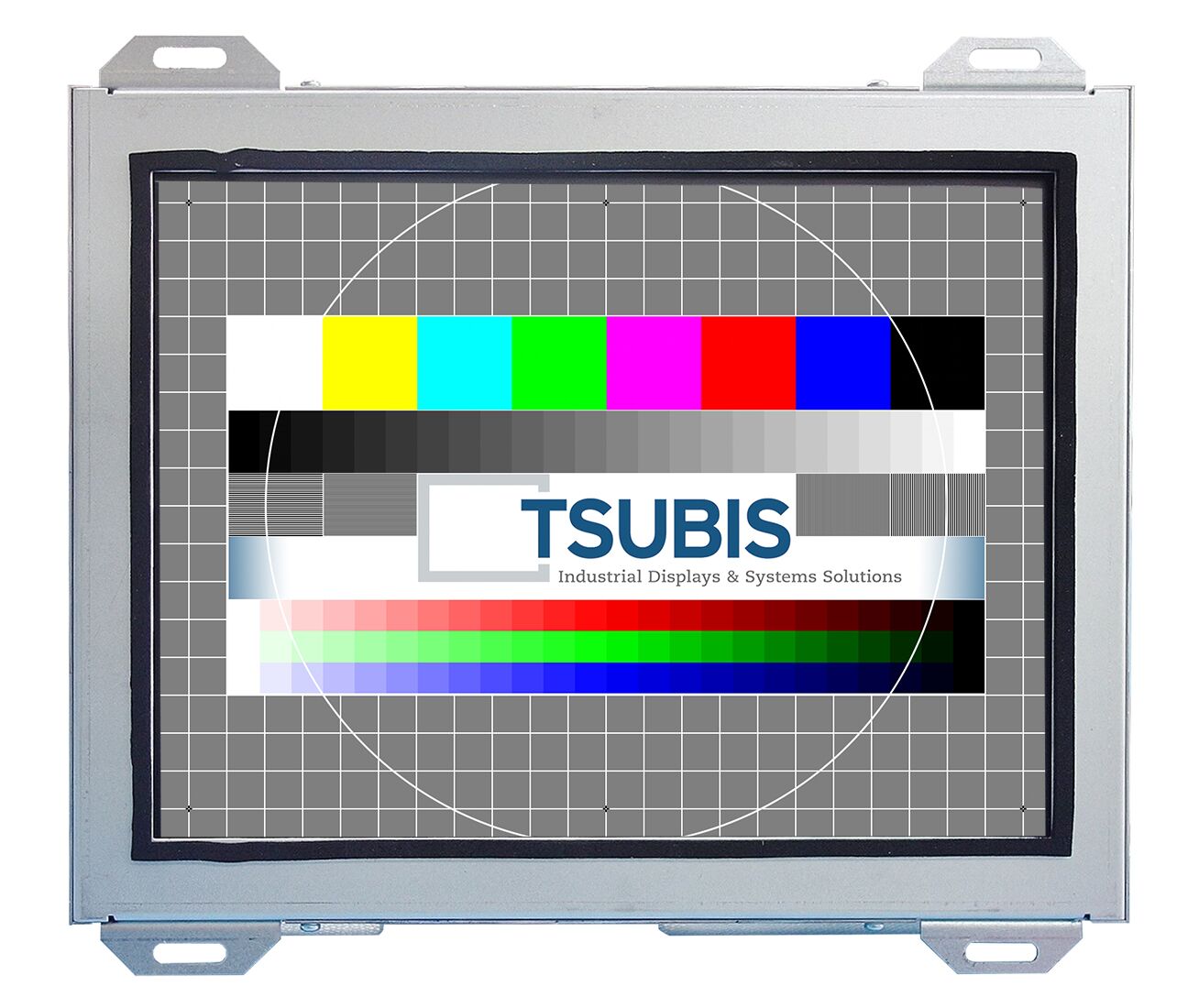

12,1” TFT replacement monitor for HURCO Ultimax 4
With the Hurco Ultimax 4 it is possible to interchange the two displays – meaning you can move the operator display to the graphics display position and vice-versa (unlike the Ultimax 3). It is also possible to operate it with one LCD and one CRT installed in either position, or dual LCDs.
Our replacement Hurco Ultimax 4 monitor is a stand-alone unit, so it can be used to replace the CRT in either position. It is fully compatible, both mechanically and electrically, with the Hurco Ultimax 4 and Hurco Winmax, and the Hurco VMX-24, VMX-30, VMX-42, VTX U and DCX-32.

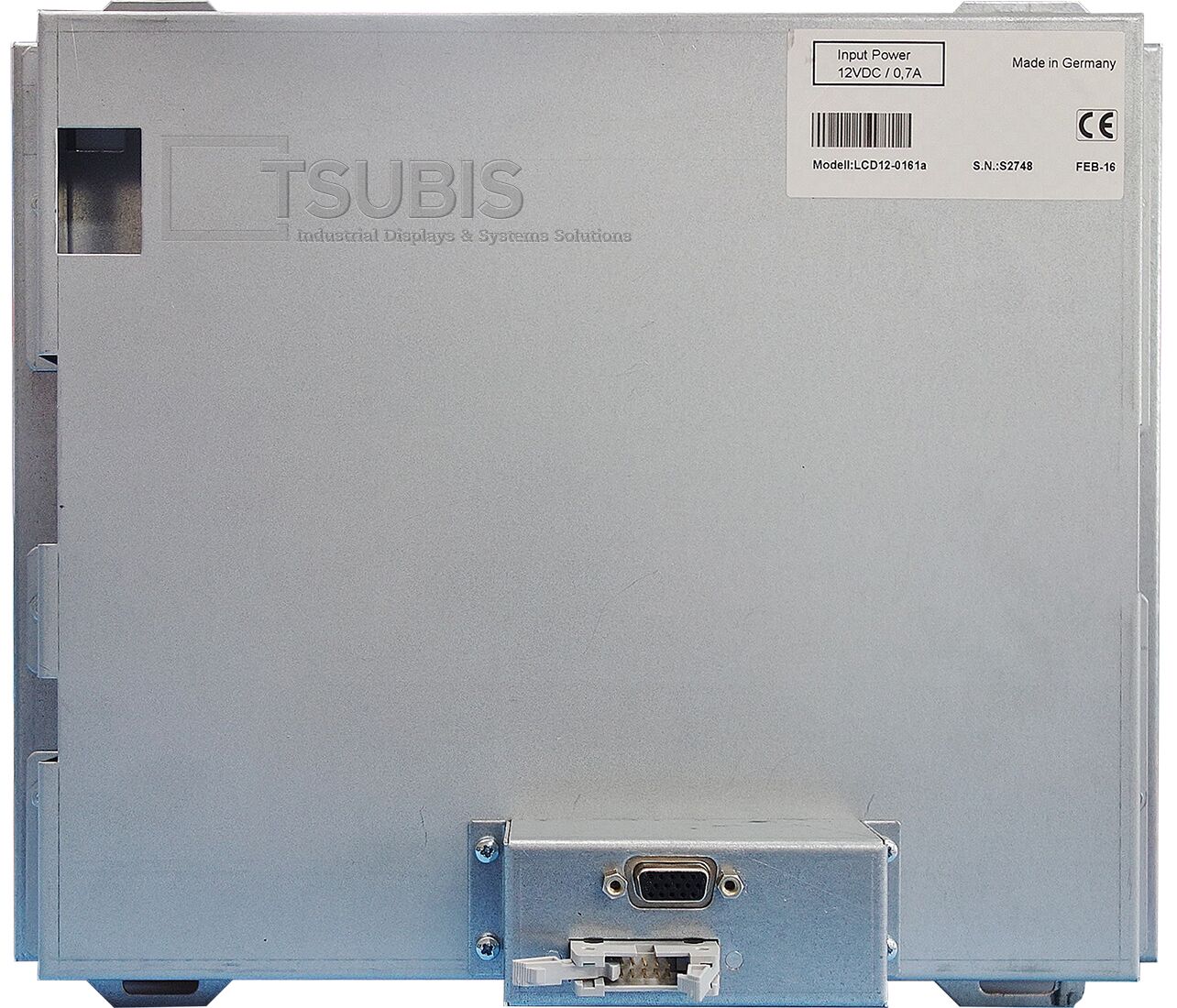

- 10 pin connector for power
- 15 pin D-type connector for the video

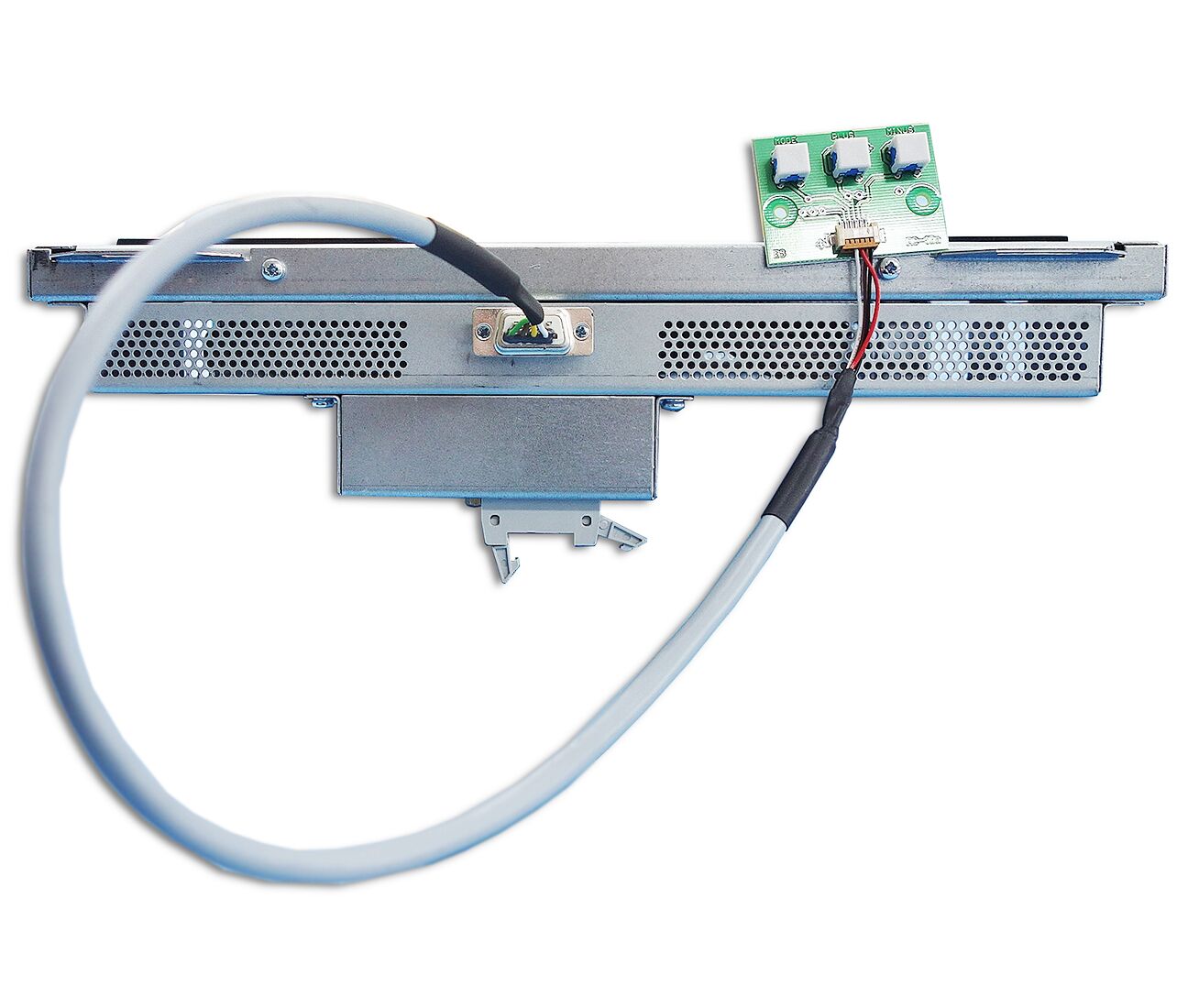

- 9 pin D-type connector for the OSD (On Screen Display) board that we provide with the unit. This allows user adjustment of brightness, contrast, screen size, position, etc.
