Heidenhain BF 150 replacement monitor

BF150 Ersatz Monitor
BF150 Ersatz Monitor 1
BF150 Ersatz Monitor 2
LCD15 134b back 4 1
LCD15 134b back 5 1

Heidenhain BF 150 replacement monitor

15″ TFT LCD industrial monitor (keyboard included) as replacement for 15.1″ LCD Monitor BF150. This Heidenhain monitor is a modern 15″ colour TFT LCD replacement display for the original 15″ colour CRT monitor that was fitted to the Heidenhain  iTNC530. HEIDENHAIN Monitor Codes:

  • IdNr.: 353522-02
  • IdNr.: 353522-03
  • IdNr.: 353522-04

  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LCD15-0134

SKU: LCD15-0134 Categories: , ,
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/heidenhain-en/bf-150-monitor/ Heidenhain BF 150 replacement monitor 2019-01-25 18:30:49 <p><strong>15" TFT LCD industrial monitor (keyboard included) as replacement for 15.1" LCD Monitor BF150.</strong> This Heidenhain monitor is a modern 15" colour TFT LCD replacement display for the original 15" colour CRT monitor that was fitted to the Heidenhain  iTNC530. HEIDENHAIN Monitor Codes:</p> <ul> <li>IdNr.: 353522-02</li> <li>IdNr.: 353522-03</li> <li>IdNr.: 353522-04</li> </ul> <p>
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LCD15-0134
</p> Frank Reinecke Blog post

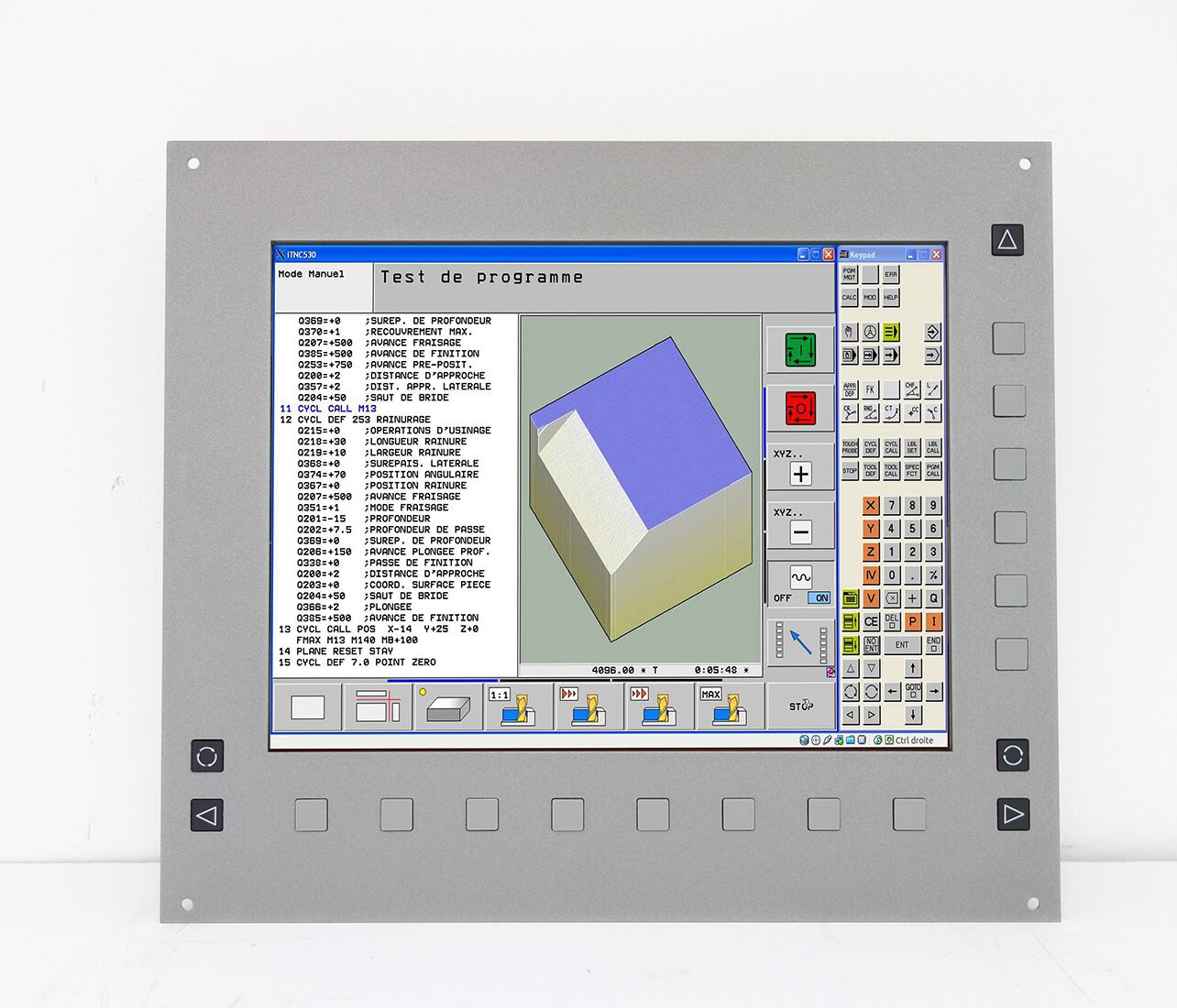

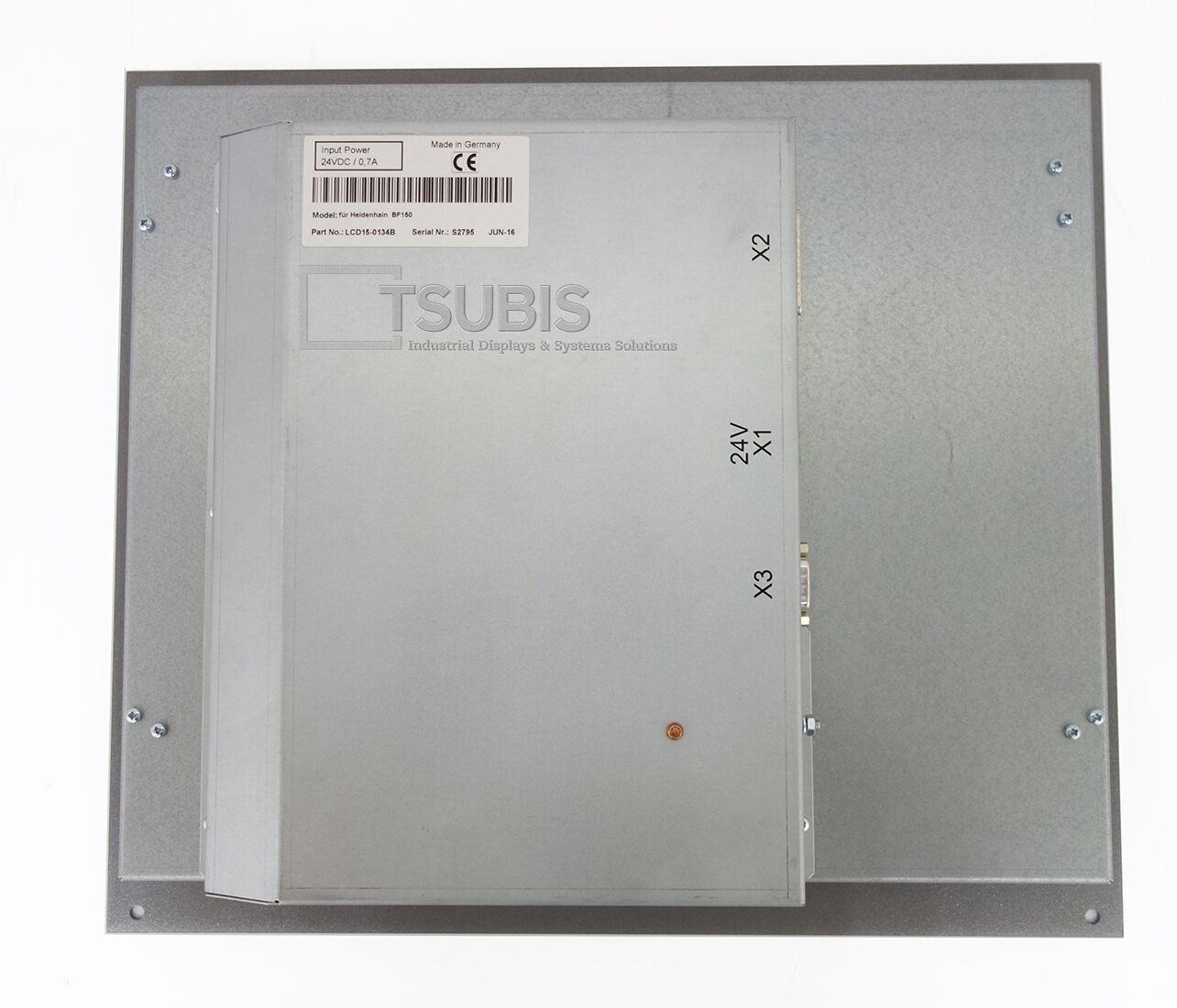

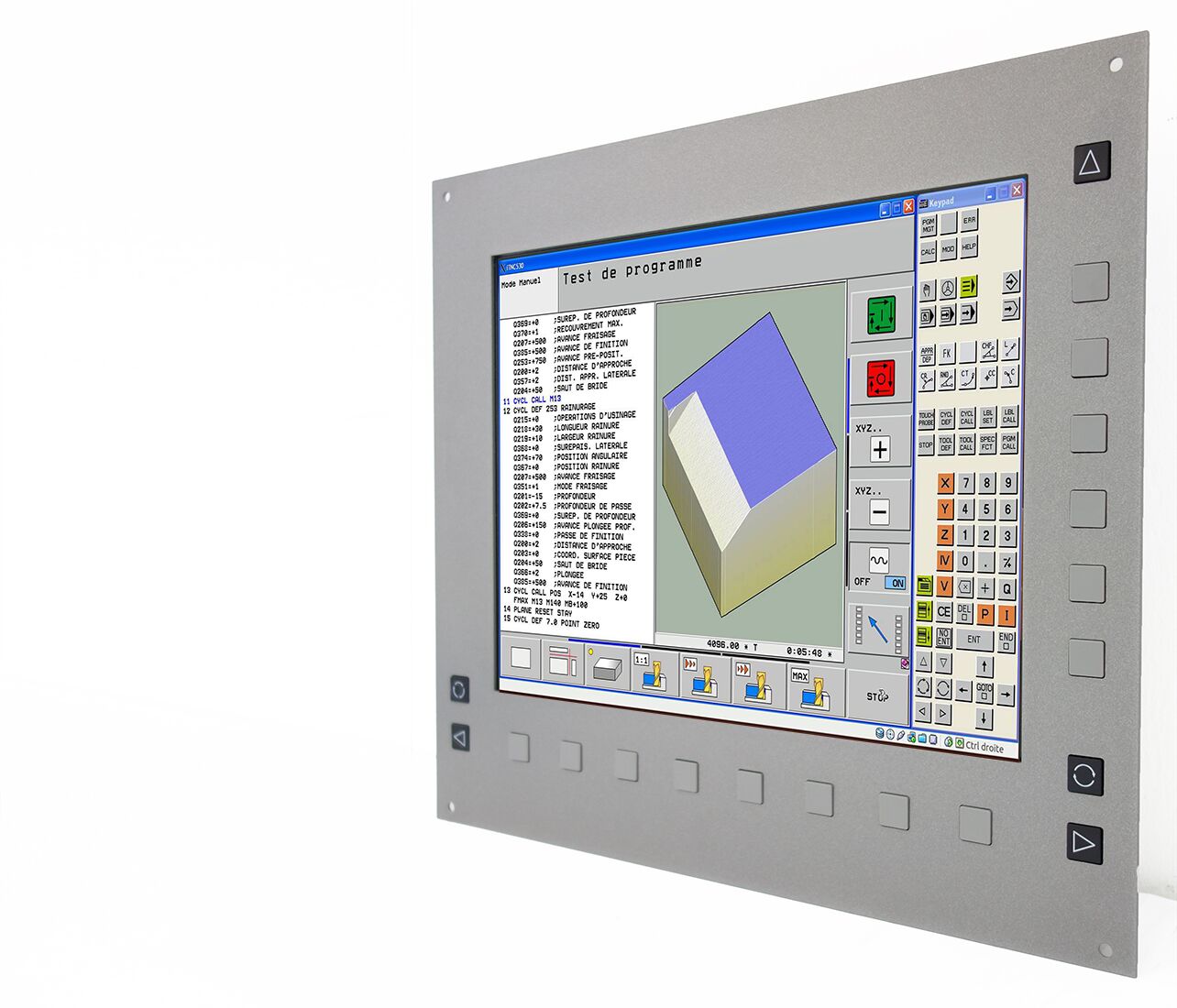

15” TFT industrial monitor with integrated keyboard as replacement for 15” CRT/TFT monitor BF 150 with front plate.

  • Manufacturer: Heidenhain
  • Control:  iTNC530
  • Mechanical version: Front plate inklusive keyboard

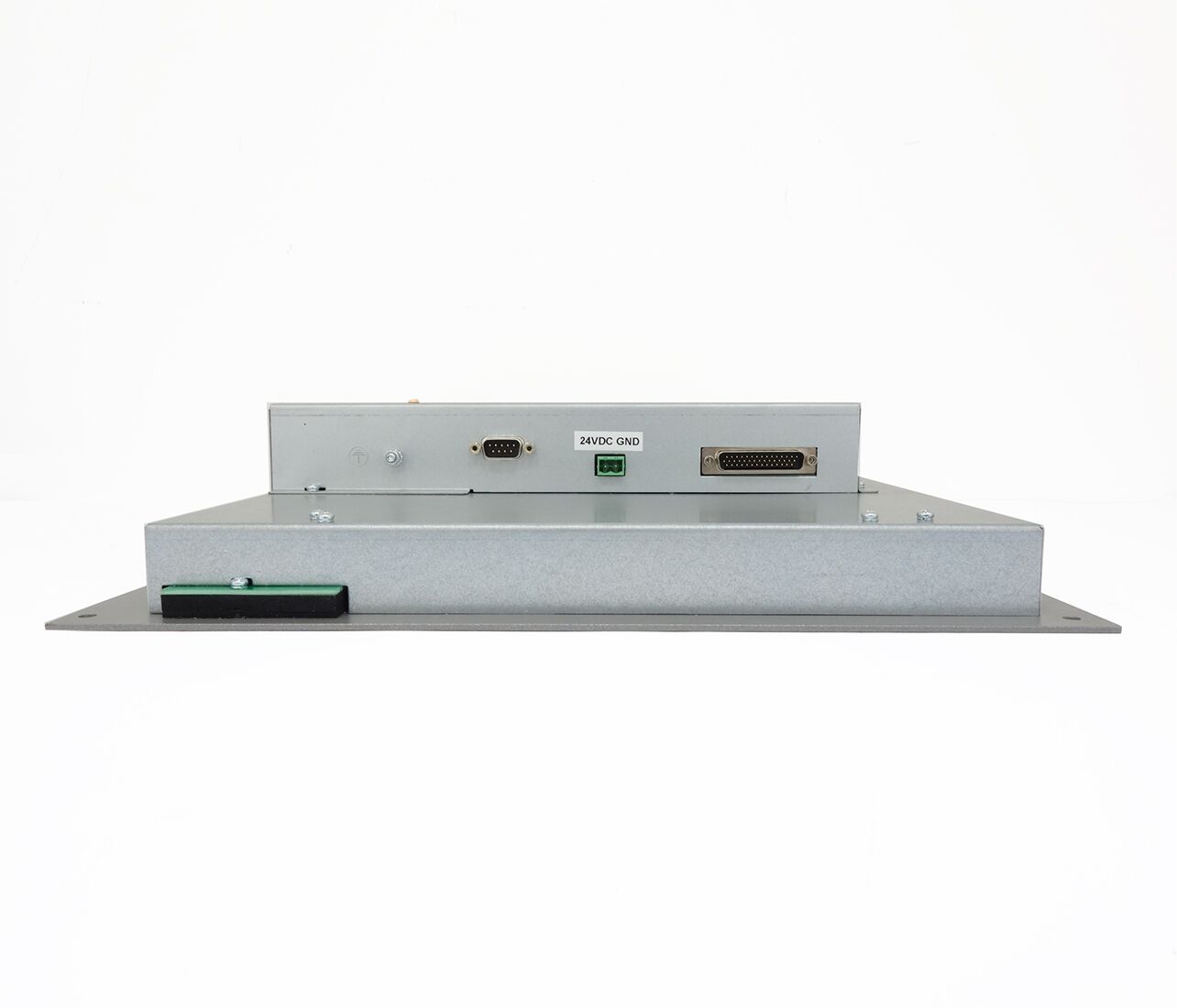

  • Input signal:  HD-SUB connector, 44-pin 3-row
  • Keyboard connector: D-SUB 9-Pin 2-row
  • Front Panel (WxH): 400 x 350 mm
  • Power supply: 24V DC
  • Heidenhain Monitor Codes:
    • Id.Nr.  353522-02
    • Id.Nr.  353522-03
    • Id.Nr.  353522-04
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/heidenhain-en/bf-150-monitor/ Heidenhain BF 150 replacement monitor 2019-01-25 18:30:49 <p><strong>15" TFT LCD industrial monitor (keyboard included) as replacement for 15.1" LCD Monitor BF150.</strong> This Heidenhain monitor is a modern 15" colour TFT LCD replacement display for the original 15" colour CRT monitor that was fitted to the Heidenhain  iTNC530. HEIDENHAIN Monitor Codes:</p> <ul> <li>IdNr.: 353522-02</li> <li>IdNr.: 353522-03</li> <li>IdNr.: 353522-04</li> </ul> <p>
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LCD15-0134
</p> Frank Reinecke Blog post

pdf Datenblatt LCD15-0134
