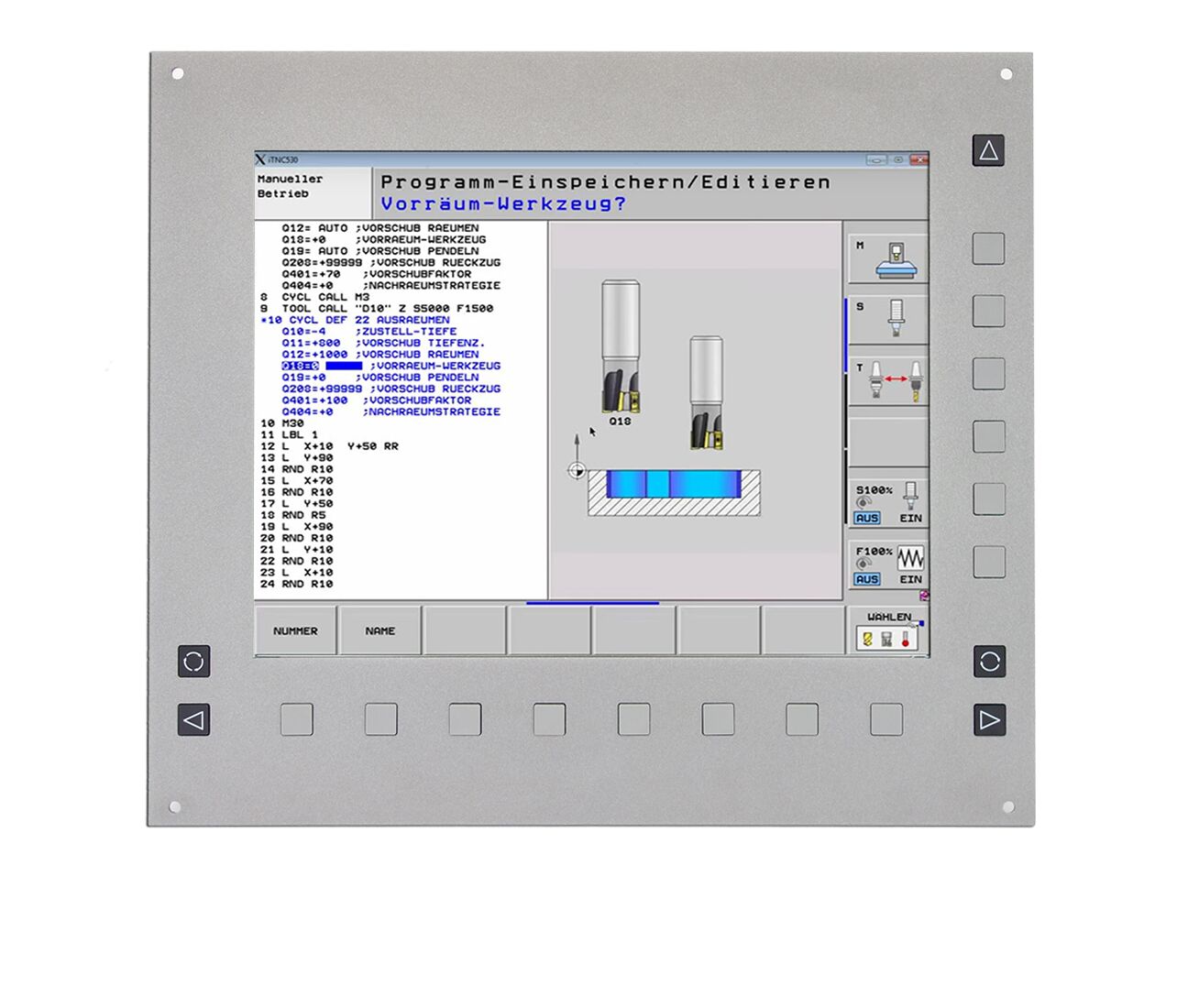

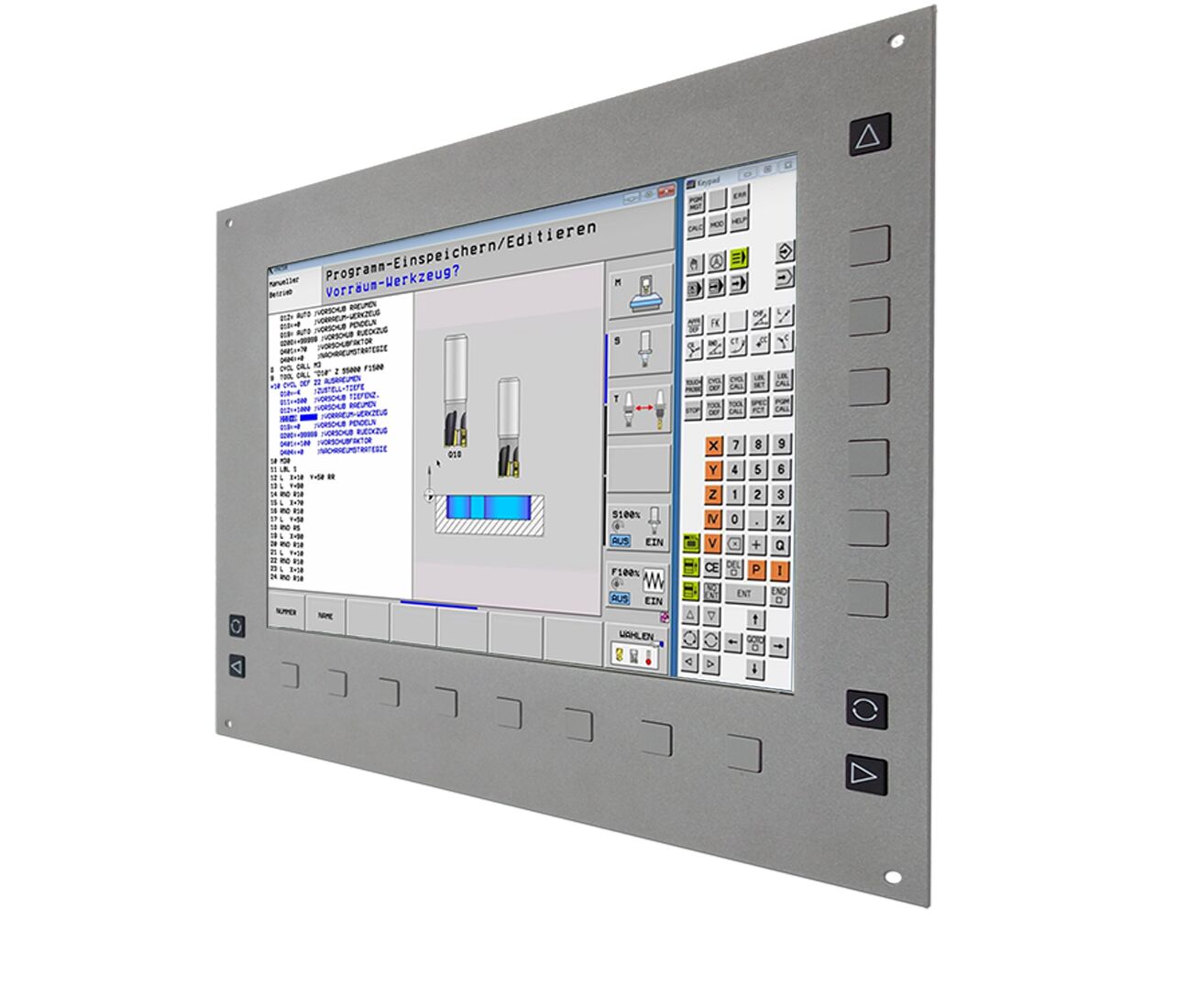

15″ TFT industrial monitor as replacement for 15″ CRT/TFT Monitor BC120/BC120F/BC125 front plate with keyboard.
This Heidenhain monitor is a modern 15″ colour TFT LCD replacement display for the original 15″ colour CRT monitor that was fitted to the Heidenhain TNC 407/410/416/426/430, Mill Plus VME, MillPlus M LE412M, and MillPlus IT LE422M controllers.
HEIDENHAIN Monitor Codes:
IdNr.: 391 268-03
IdNr.: 313 037-01
BC 120, BC 120F, BC 125 Monitor
15” TFT industrial monitor with integrated keyboard as replacement for 15” CRT/TFT monitor BC120, BC120F and BC125.
- Manufacturer: Heidenhain
- Control: TNC 407, TNC 410, TNC 416, TNC 426, TNC 426PB, TNC 430, Mill Plus
- Mechanical version: Front plate inklusive keyboard

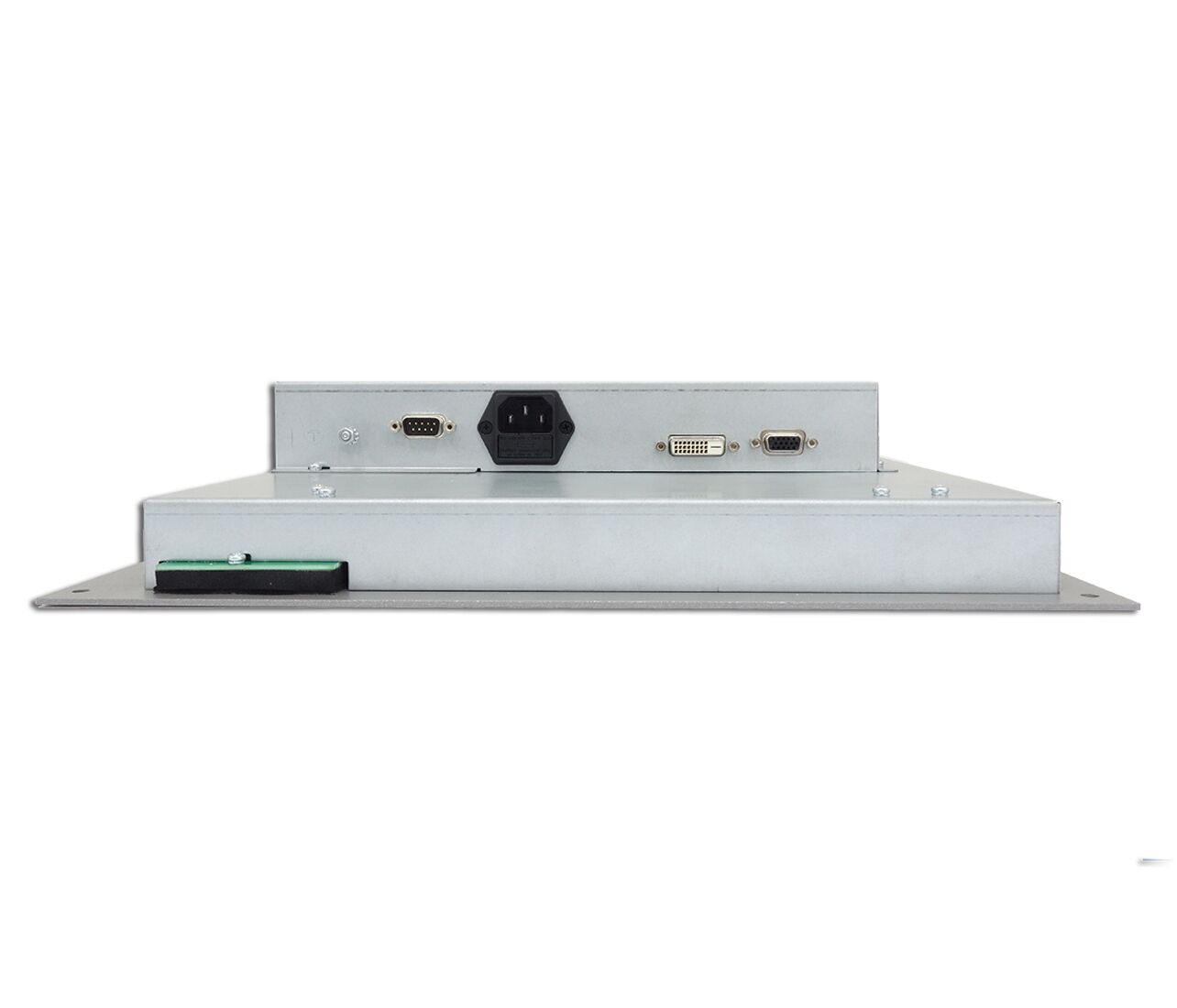

- Input signal: 15 pol. HD-SUB connector
- Keyboard connector: D-SUB 9pin / 2-row
- Front Panel (WxH): 400 x 350,5 mm
- Power supply: 85-240V AC
- Heidenhain Monitor Codes:
- Id.Nr. 313 037-01
- Id.Nr. 391 268-03
