12,1” TFT replacement monitor for ENGEL for CC90,CC80,EC88

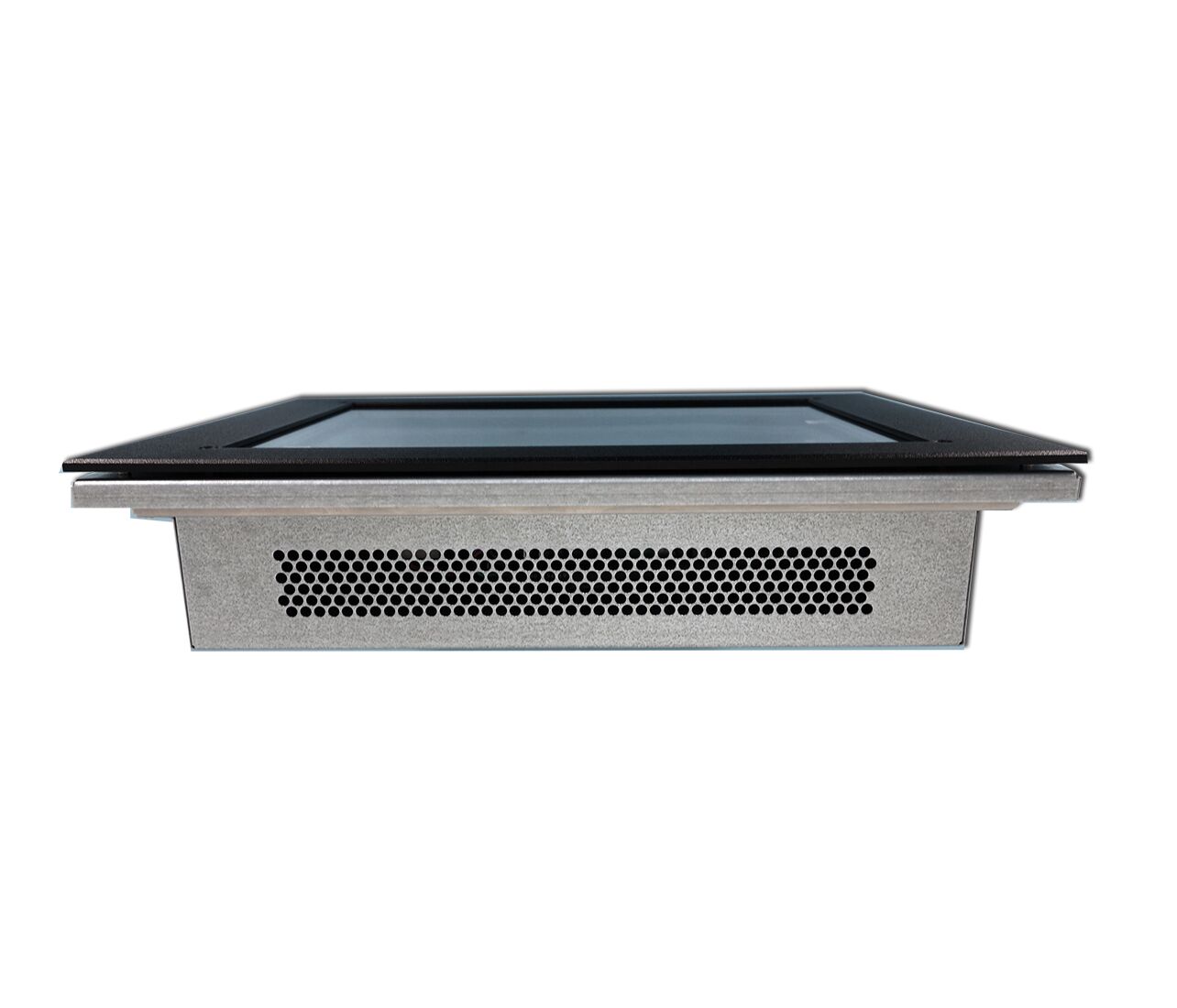

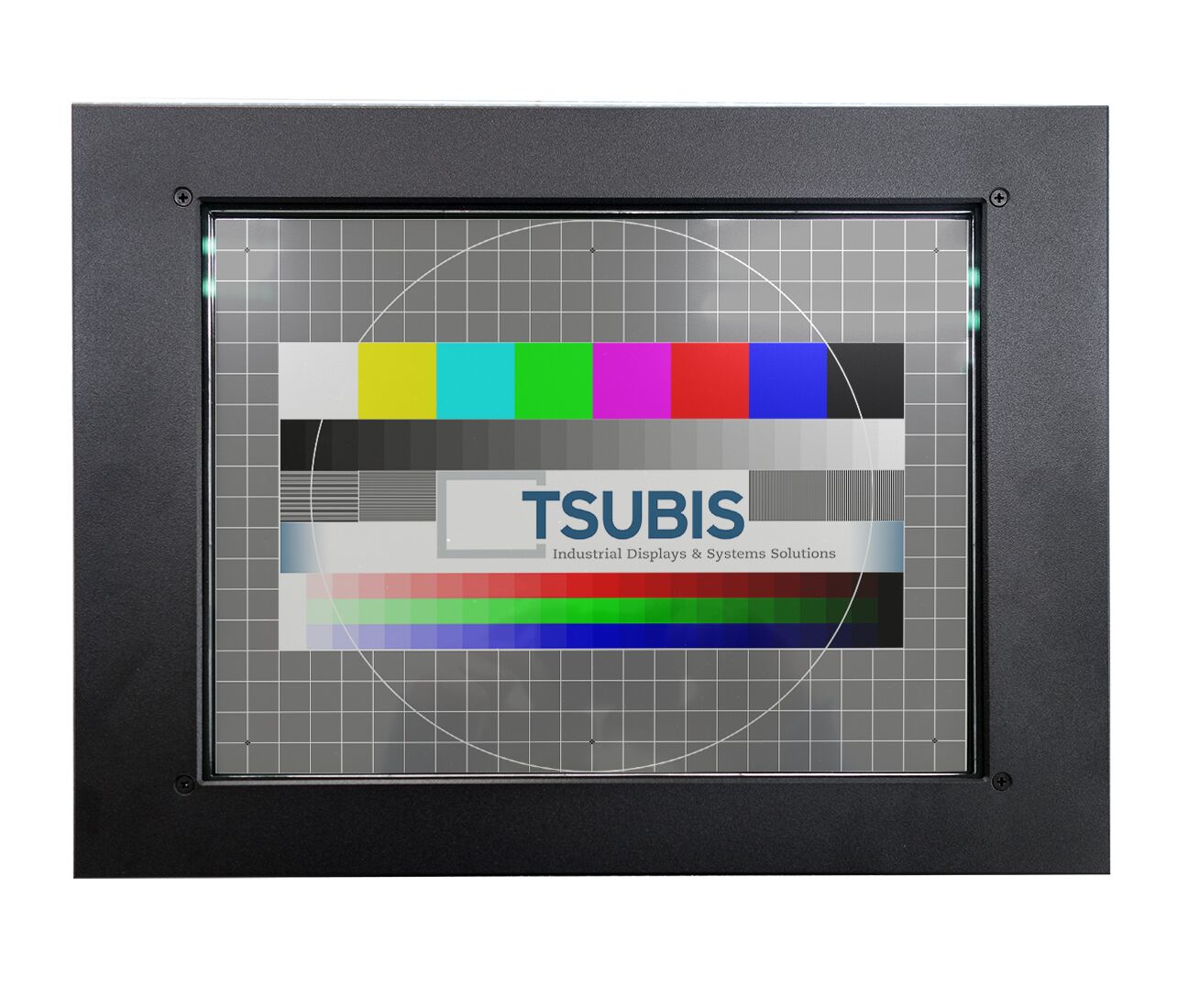

This 12.1″ TFT LCD industrial monitor replaces the 12″ and 14″ CRT displays that are fitted to Engel injection molding machines using the Engel CC90, Engel CC80, Engel BUHL, Engel EC88 controllers.

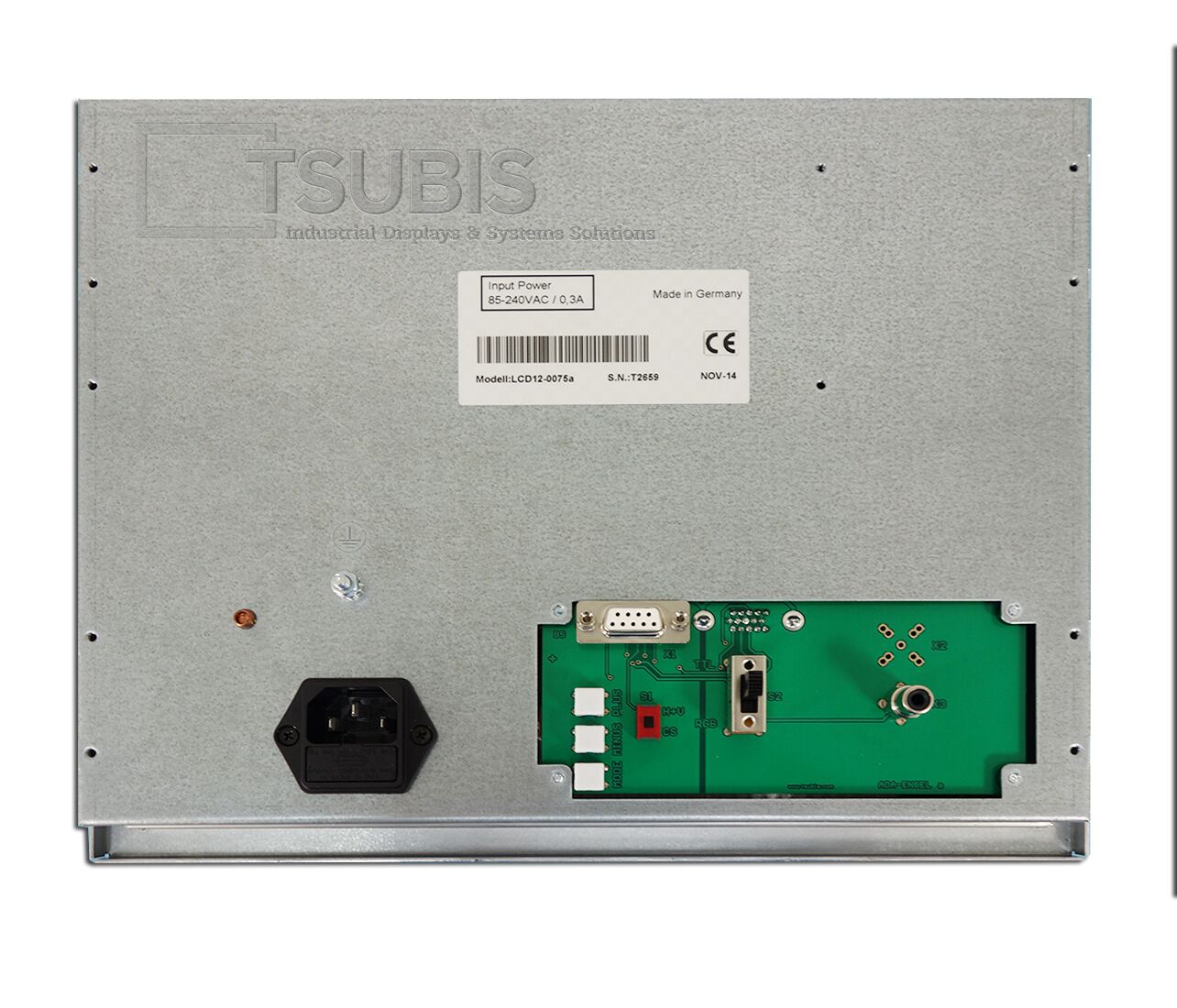

It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications. The video connection is made via a 9 pin D-sub connector, and it operates from a 85-240 volts AC power using a standard IEC (kettle-type) mains connector. A re-wirable IEC connector is supplied with the monitor.
