Replacement monitor for Agiematic CD, Agiecut D100

Replacement monitor for Agiematic CD, Agiecut D100

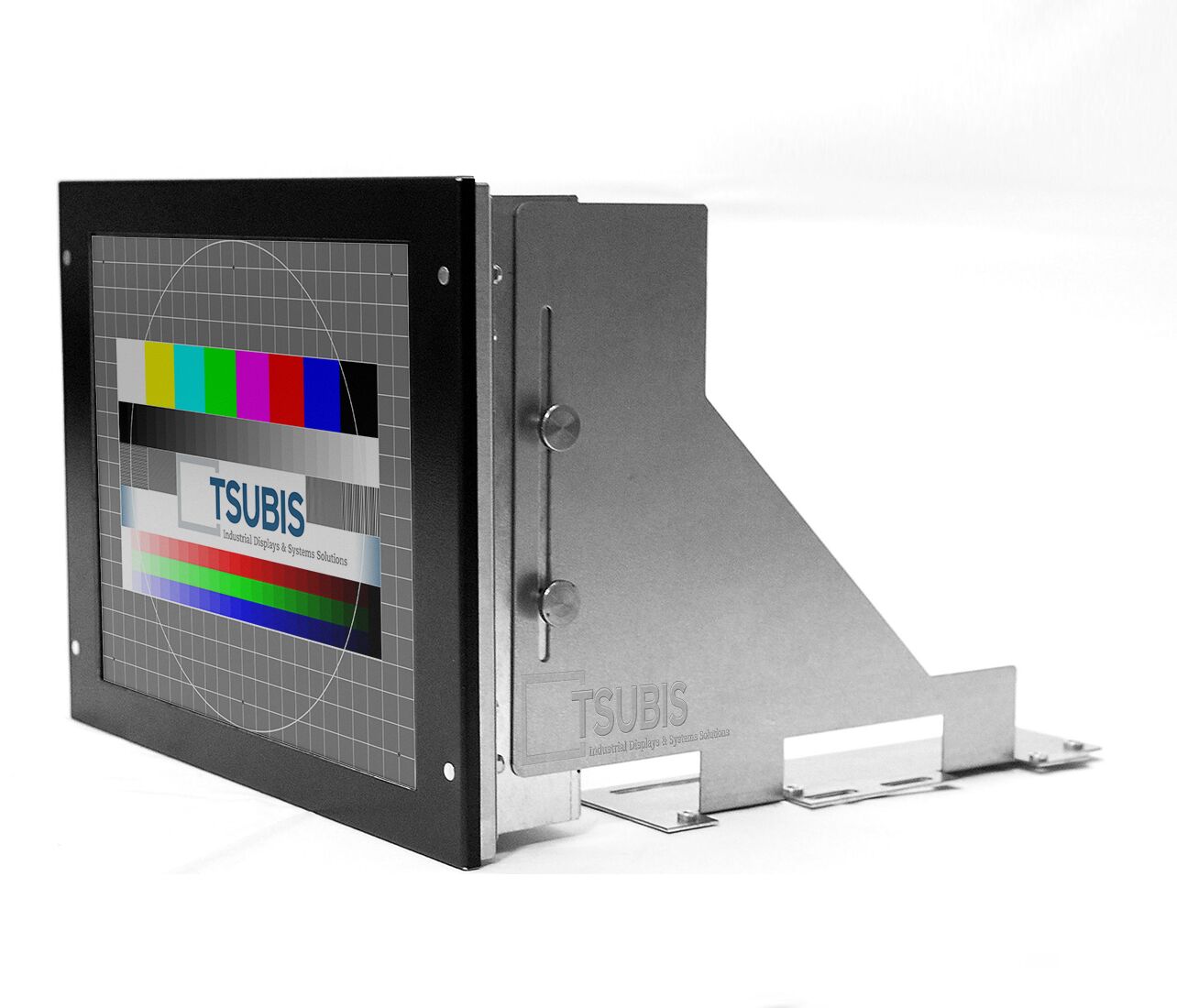

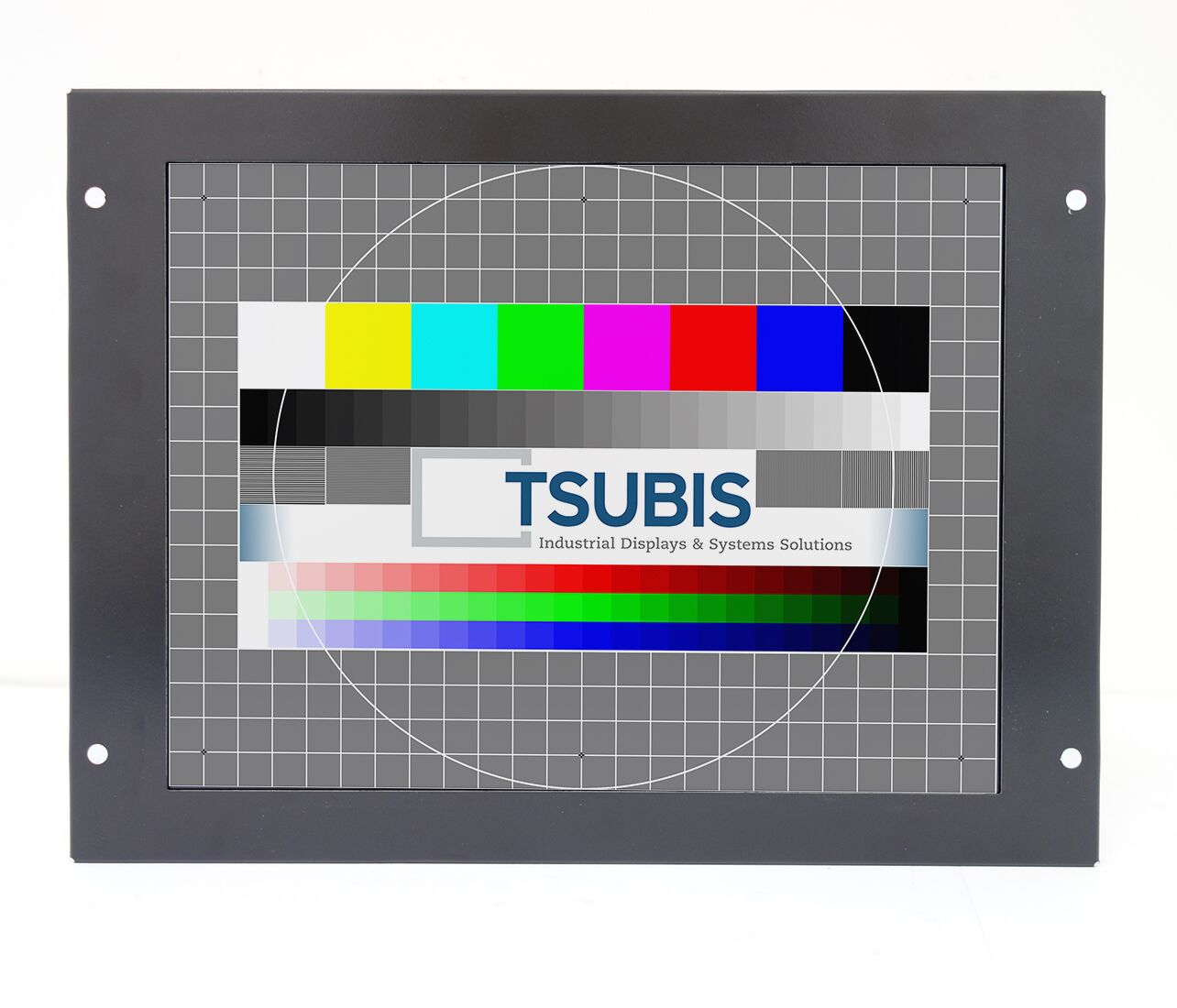

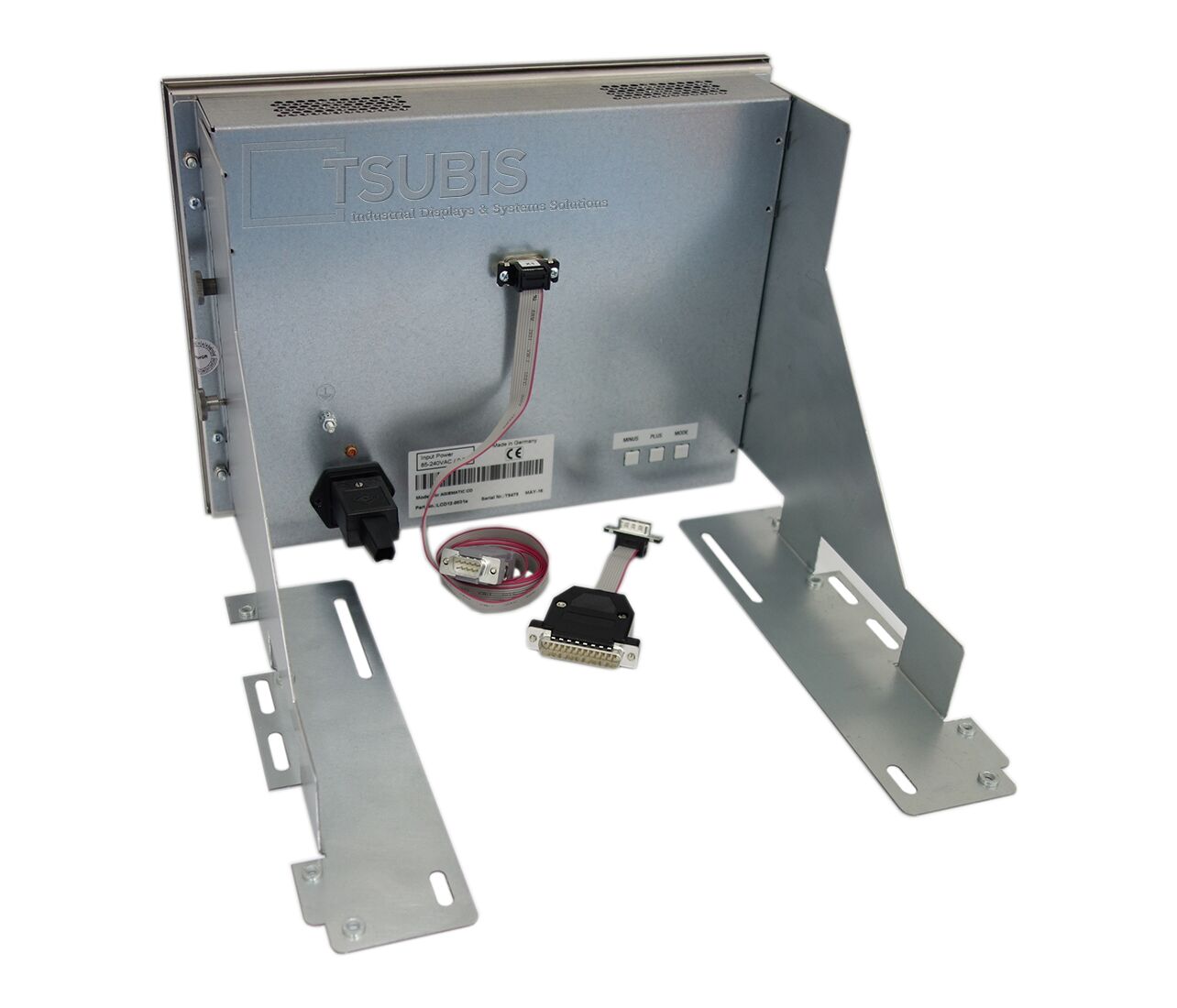

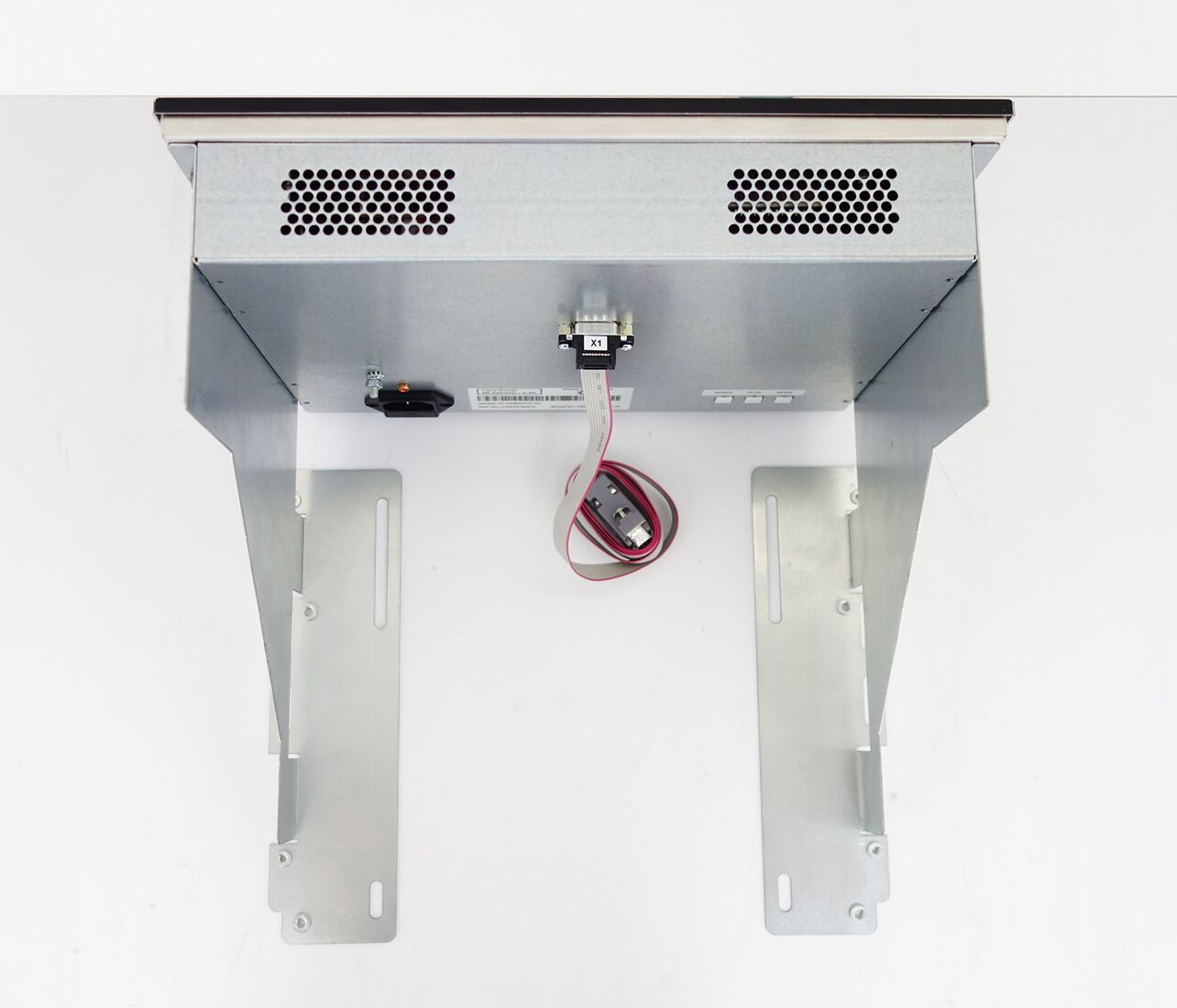

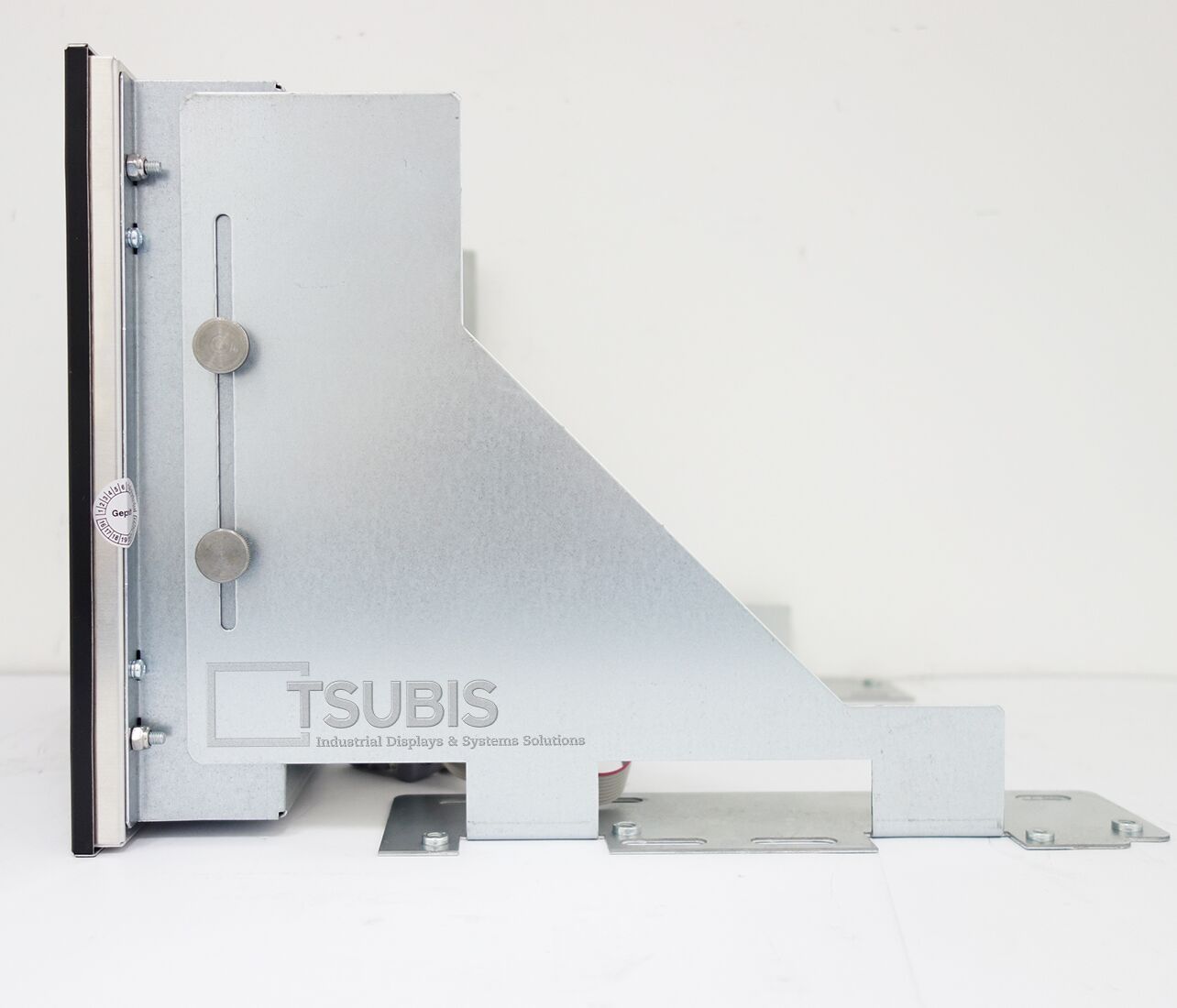

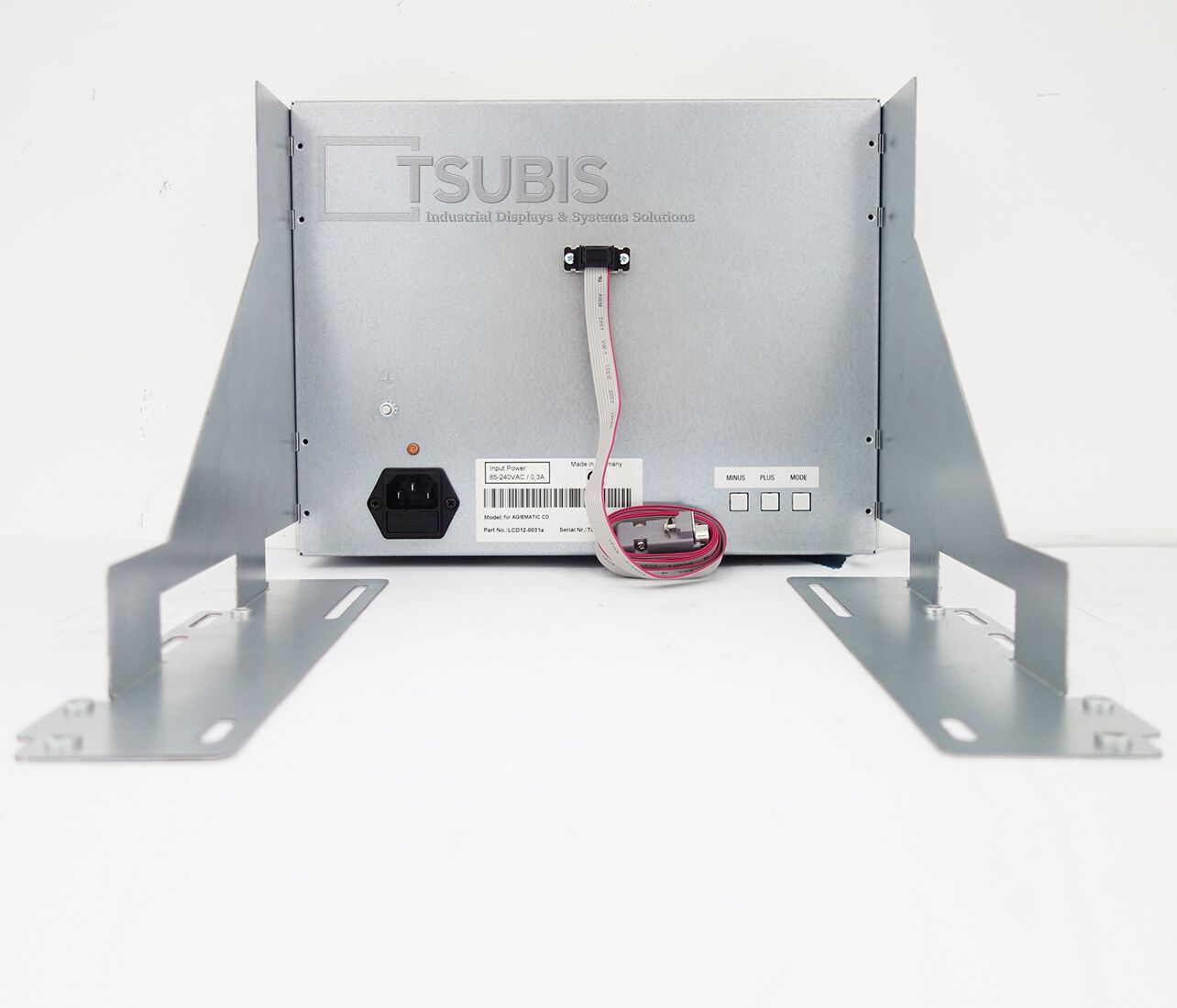

12,1” TFT replacement monitor for AGIE Agiematic cd, Agiecut D100.

This 12.1″ industial monitor replaces colour 14″ CRT monitors fitted to the AGIECUT 100D 300D wire eroding EDM machines. Used with the AGIEMATIC CD controller.
The replacement monitor was specially developed to be electronically and mechanically compatible to the original AGIEMATIC CD controller and can therefore be swapped out easily with a view “Plug & Play” steps.

  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
SKU: LCD12-0031 Categories: , ,
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/agie-en/replacement-monitor-for-agiematic-cd-agiecut-d100/ Replacement monitor for Agiematic CD, Agiecut D100 2019-01-25 17:57:44 <strong>12,1'' TFT replacement monitor for AGIE Agiematic cd, Agiecut D100.</strong> This 12.1" industial monitor replaces colour 14" CRT monitors fitted to the AGIECUT 100D 300D wire eroding EDM machines. Used with the AGIEMATIC CD controller. The replacement monitor was specially developed to be electronically and mechanically compatible to the original AGIEMATIC CD controller and can therefore be swapped out easily with a view “Plug &amp; Play” steps.
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

12,1” TFT LCD industrial monitor as replacement for colored 14” CRT monitor.

  • Manufacturer: AGIE
  • Control: AGIEMATIC CD, AGIECUT D100
  • Mechanical version: Chassis with front panel
  • Input signal: D-SUB 9-pin 2-row
  • Dimensions front panel (WxH): 305 x 228 mm
  • Power supply: 85-240V AC
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/agie-en/replacement-monitor-for-agiematic-cd-agiecut-d100/ Replacement monitor for Agiematic CD, Agiecut D100 2019-01-25 17:57:44 <strong>12,1'' TFT replacement monitor for AGIE Agiematic cd, Agiecut D100.</strong> This 12.1" industial monitor replaces colour 14" CRT monitors fitted to the AGIECUT 100D 300D wire eroding EDM machines. Used with the AGIEMATIC CD controller. The replacement monitor was specially developed to be electronically and mechanically compatible to the original AGIEMATIC CD controller and can therefore be swapped out easily with a view “Plug &amp; Play” steps.
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

pdf Datenblatt LCD12-0031
