- Model: LM24P20
- Diagonal: 5,7″
- Resolution: 240×128
- Manufacturerer: SHARP
- Article no.: 8541031

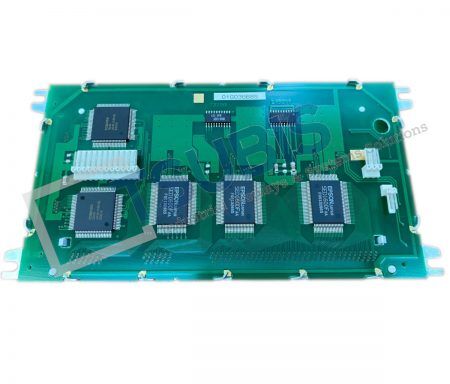

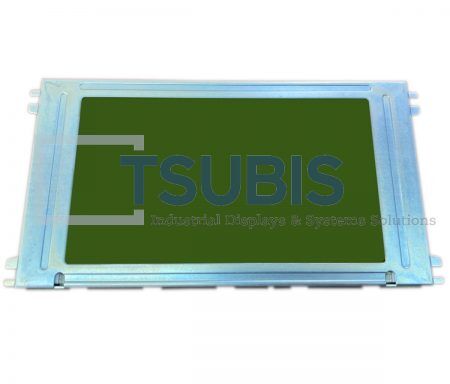

LM24P20
LM24P20 Sharp LCD Display technical data
| Brand | Sharp |
| Diagonal | 5,7″ |
| Resolution | 240(RGB)×128, 47PPI |
| Brightness | 50 cd/m² (Typ.) |
| Panel Type | FSTN-LCD, LCM |
| Active Area | 127.16(W)×67.8(H) mm |
| Display Mode | STN, Black/White mode, Transmissive |
| Pixel Format | Rectangle |
| Lamp Type | 1 pcs CCFL |
| Support Colors | Monochrome |
| Contrast Ratio | 20:1 (Typ.) (TM) |
| Response Time | 400 (Typ.)(Tr+Td) |
| Light Source | WLED , 50K hours , With LED Driver |
| Max. Rating | Operating Temperature: 0 ~ 45 °C Storage Temperature: -25 ~ 60 °C Vibration Level: 1.0G (9.8 m/s²) |
LM24P20 Sharp LCD Synopsis
LM24P201 is a 5,7″ diagonal FSTN LCD display from Sharp Corporation (after that it called Sharp), the resolution of this display is 240×128 and the brightness is about 50cd/m² it has CCFL backlight system. It’s general features are summarized by Tsubis GmbH in the following: The panel has an Operating Temperature between 0 ~ 45 °C and the maximal vibration level is 1.0G (9.8 m/s²), it´s monochrome has 1 CCFL and the pixel format is rectangle. Based on the features, Tsubis would recommend that this model can be applied to Industrial sector. The last shippment was on Q4, 1999, Now this model is discontinued. If you want to plan the LM24P20 in your future project, Tsubis GmbH would like to suggest to make a contact with a Sharp or a Sharp distribute agent to learn about the alternative solution and inform about the latest production and specification detail. The production status marked on Tsubis.com is only for reference, please don´t use it as the basis for the decision making. All specification details are according to datasheet, but we cannot guarantee for the content.
