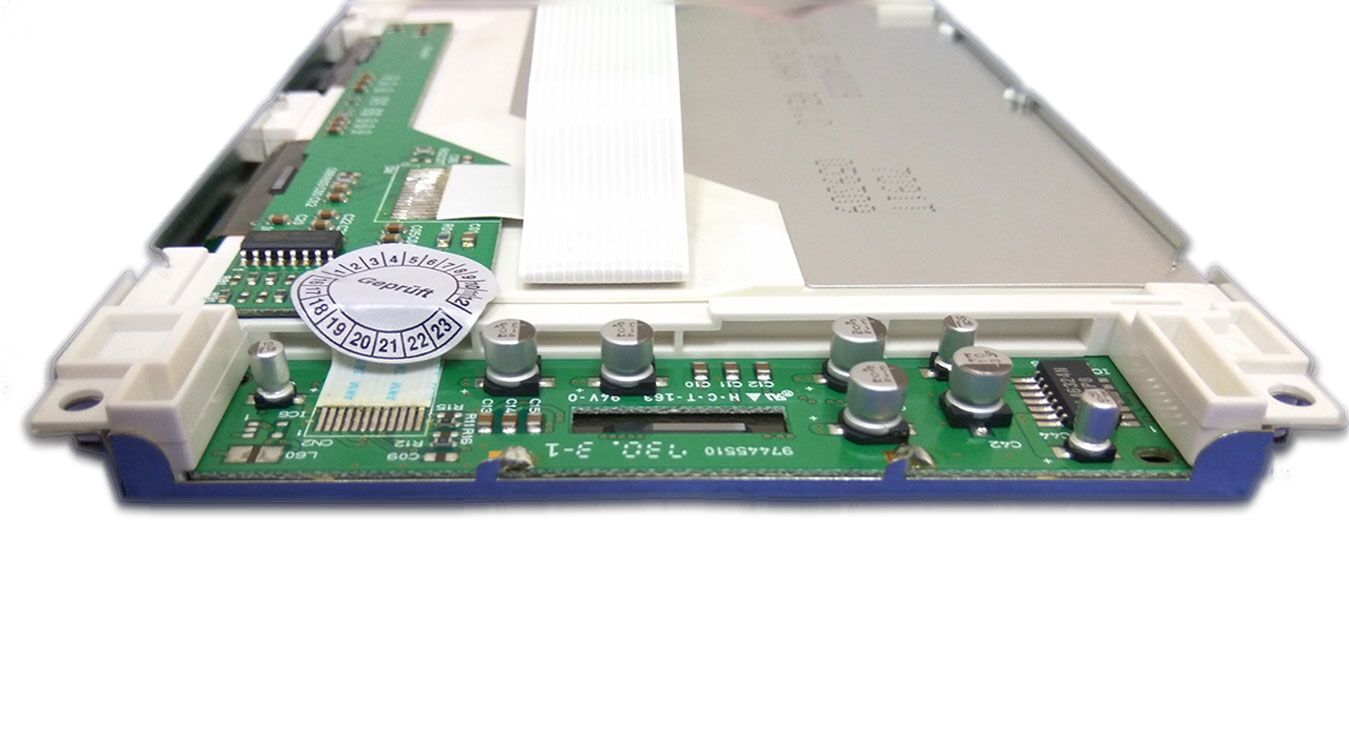

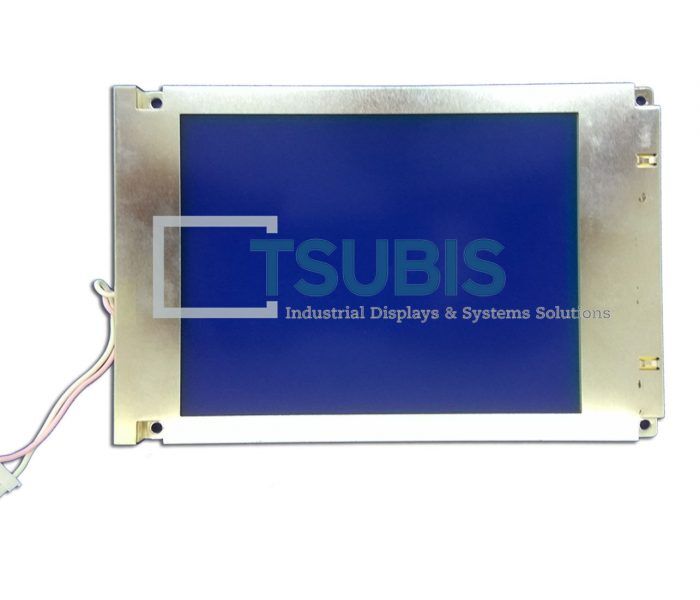

SP14Q009

  • Model: SP14Q009
  • Diagonal: 5,7″ mono blue mode
  • Resolution: 320×240
  • Manufacturer: Hitachi
  • Article no.: 8540437

  • function test
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance

SKU: a6a657bb85f7 Categories: , ,
https://tsubis.de/en/produkte/spare-parts-cnc-plc/displays-en/hitachi-en/sp14q009/ SP14Q009 2019-01-25 18:37:41 <ul> <li><strong>Model: SP14Q009</strong></li> <li>Diagonal: 5,7" mono blue mode</li> <li>Resolution: 320x240</li> <li>Manufacturer: Hitachi</li> <li>Article no.: 8540437</li> </ul>
  • function test
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

SP14Q009 Hitachi Display technical data

Diagonal (Zoll) 5,7 inch
Resolution  320×240 Pixel
Orientation Landscape type
Panel Type STN-LCD, LCM
Brand Hitachi
Aspect Ratio 4:3 (H:V)
Operating Mode STN
LCD Type Blue
Interface Type Prallel Data (1ch, 4-bit)
Support Colors Monochrome
Pixel Format Rectangle
Treatment Antiglare, Hard coating (3H)
Pixel Pitch(mm) 0.360×0.360 mm (H×V)
Active Area 115.185(W)×86.385(H) mm



SP14Q009 Hitachi Summary

SP14Q009 is a display with the resolution 320×240 (QVGA) and aspect ratio of 4:3 (W:H), the pixels are arranged in Rectangle. As for mechanical detail, the active area should be 115.185(W)×86.385(H) mm. Its a STN LCM product and support Monochrome colors. The SP14Q009 utilizes Parallel Data (1ch, 4-bit) as it’s signal inputting systerm. If you need more product detail of SP14Q009 we would like to  recommend that you should refer to datasheet listed on or contact with HITACHI or a distributor. The above parameters are not from the datasheet and can only use as a reference, but we cannot guarantee the spec listed is 100% correct.
