Desktop PC
19″ Panel PC as a desktop version in elegant ‘SlimLine’ metal case. Individual customer customization.
- Intel i3 processor (4 x 2.2 GHz)
- 16:10 format (1920 x 1200)
- PCT Touch Screen
- IP54 protection class
- Customer logo
- Fanless operation
Slim Line industrial PC IPC 19”

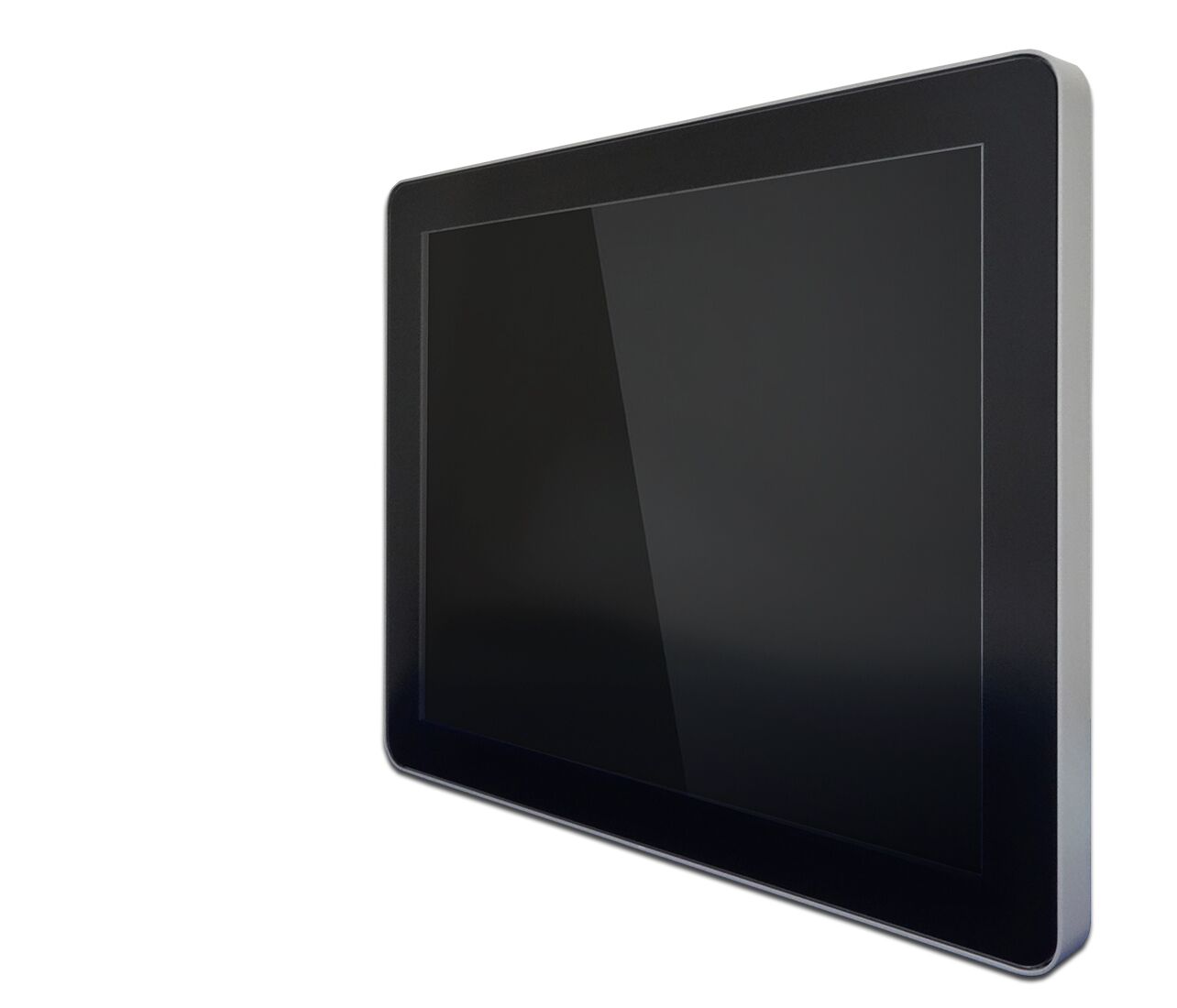

This 19″ panel PC impresses with its slim, elegant design and comes in a desktop metal housing with a smooth, true-flat front. It is operated via a projected capacitive touchscreen (PCT) and is ideally suited for multi-touch applications (operation with up to 10 fingers).
The desktop PC comes standard with a fanless processor (available as an Intel Core i3, Intel Core i5, or Intel Haswell/Bay Trail). 4GB DDR3 RAM, a 128GB SSD mSATA hard drive, and various ports provide optimal support for your application.

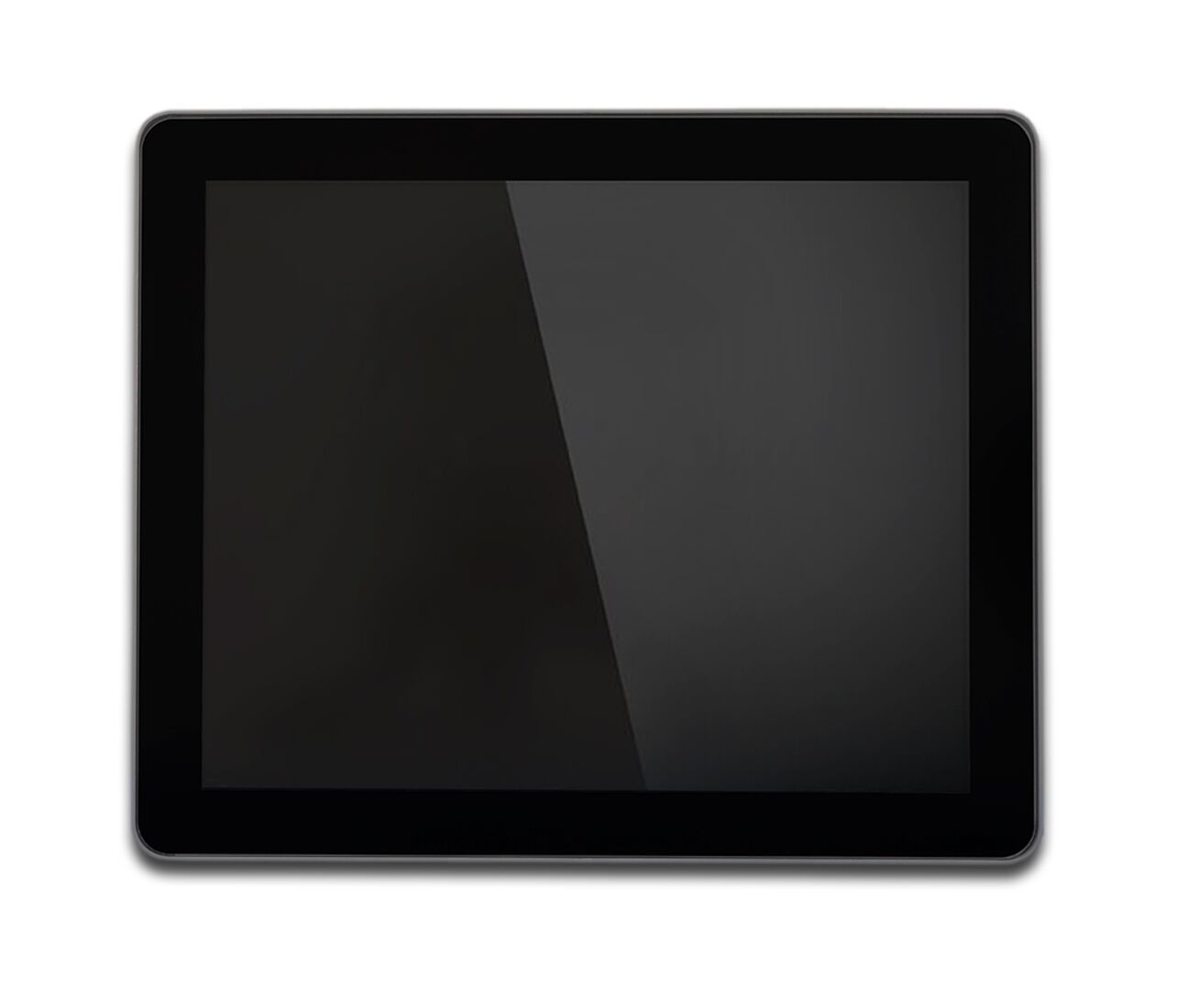

The 19″ LED display (with 1280 x 1024 pixels) offers a wide viewing angle, high contrast, and true-color reproduction. The smooth front panel is chemically anti-reflective on one side, back-printed at the edges, and can be customized with your logo and/or lettering.

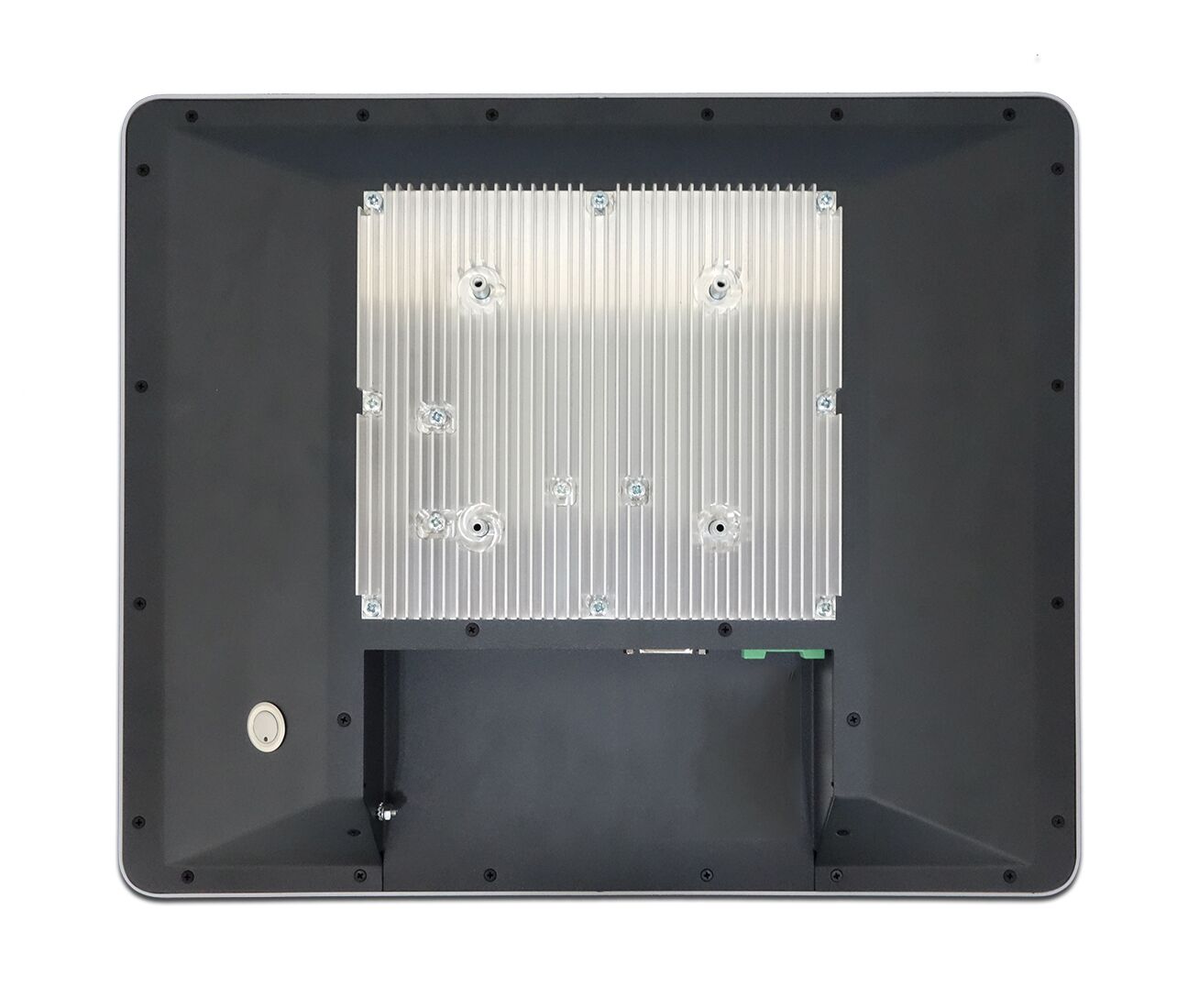

Thanks to the VESA standard mounting holes on the rear, the industrial PC can be mounted directly on a stand, support arm, or wall mount. This 19″ panel PC impresses with its slim, elegant design and comes in a desktop metal housing with a smooth true flat front. Operation is via a projected capacitive touchscreen (PCT) and is ideally suited for multi-touch applications (operation with up to 10 fingers).
The desktop PC comes standard with a fanless processor (available as an Intel Core i3, Intel Core i5, or Intel Haswell/Bay Trail). 4GB DDR3 RAM, a 128GB SSD mSATA hard drive, and various ports provide optimal support for your application.
The 19″ LED display (with 1280 x 1024 pixels) offers a wide viewing angle, high contrast, and true-color reproduction. The smooth front panel is chemically anti-reflective on one side, back-printed at the edges, and can be customized with your logo and/or lettering.
Thanks to the VESA standard holes on the back, the industrial PC can be mounted directly to a stand, support arm or wall bracket.
| Display | |
|---|---|
| Technology | extended viewing angle, high contrast, true-color display |
| Display | 19″ / 5:4 |
| Resolution | 1280 x 1024 Pixel |
| Brightness: | 300 cd/m2 |
| Contrast | 1000:1 |
| Viewing angle | H/V 178° / 178° |
| Touchscreen | |
| Touch | Projective capacitive Touch (PCT) |
| Processors | |
| CPU | optional Intel Core i3, Intel Core i5, Intel Haswell /Bay Trail |
| Memory | |
| HDD | 128 GB SSD, mSATA |
| RAM | 4 GB DDRIII SO-DIMM |
| Mechanic | |
| Case | Metal Case in RAL 7016 with surrounding frame (band) in Duraxal Classic 01, ON/OFF button with LED status light (green), integrated loudspeaker |
| Protective screen | Glass pane chemically anti-reflective on one side, Gloss 85, back-printed in RAL 9005 in the edge area |
| VESA | 100/100 VESA Standard |
| Interfaces | |

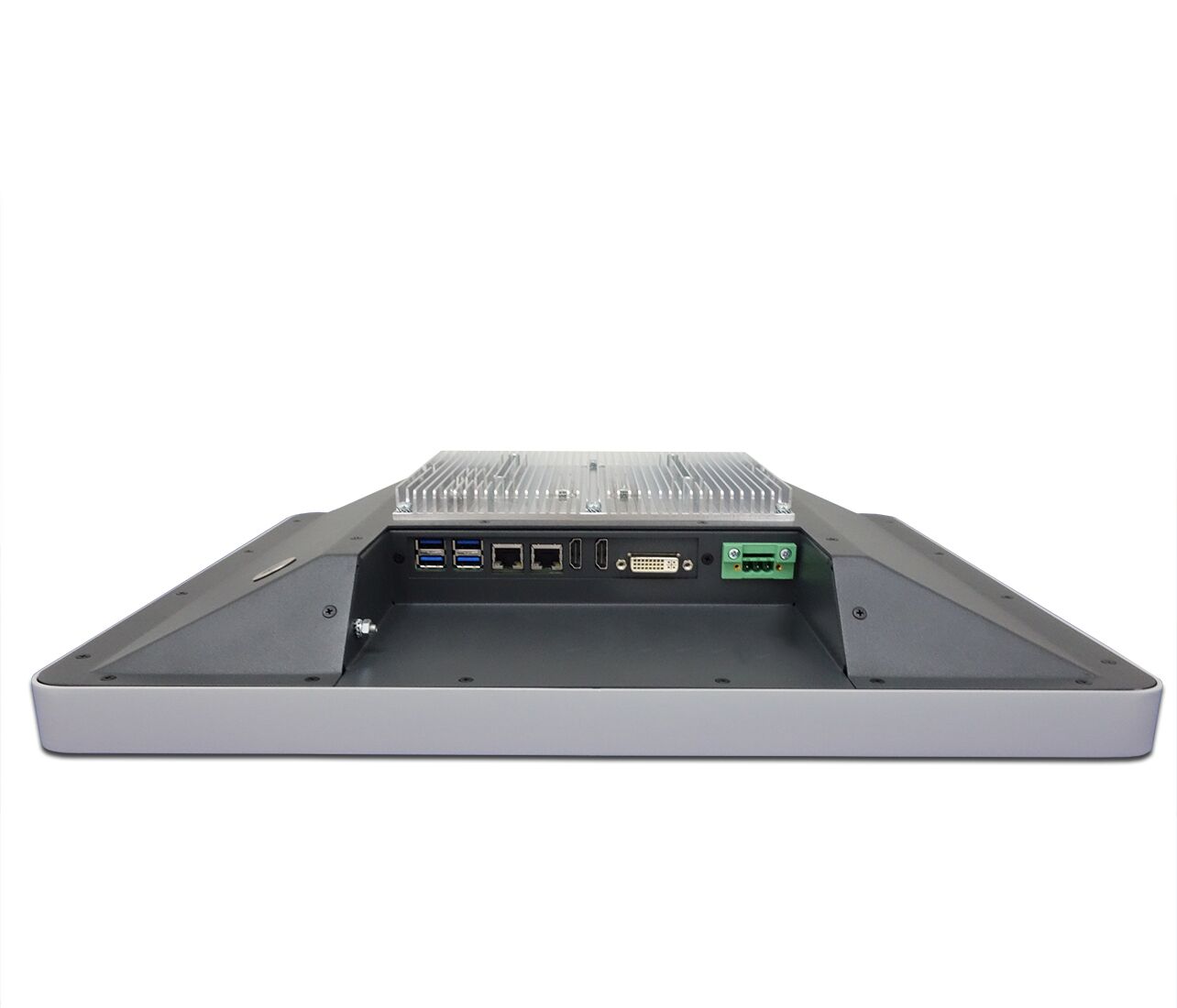

| Connection | 4 x USB 3.0, 2 x RJ-45 (LAN), 2 x HDMI, 1 x DVI |
| Power supply | |
| Power supply | 90-264V AC |
| Dimensions/weight | |
| External dimensions (WxHxD) | 445,3 x 370,1 x 81,9 mm |
| Weight | t.b.d. |
| Conditions | |
| Operating conditions | 0° to 50°C Operating temperature
-20° to 60°C Storage temperature |
Stand, wall mount
