Industrial PC with Intel Atom N270 CPU

Industrial PC with Intel Atom N270 CPU

Industrial PC as a box PC
1,6GHz Intel Atom N270 Prozessor
fanless

SKU: IPC01-0002 Categories: , Tags: ,
https://tsubis.de/en/produkte/industrial-panel-pc/embedded-pc-en/industrial-pc-with-intel-atom-n270-cpu/ Industrial PC with Intel Atom N270 CPU 2019-01-25 18:26:05 <strong>Industrial PC as a box PC</strong> 1,6GHz Intel Atom N270 Prozessor fanless Frank Reinecke Blog post

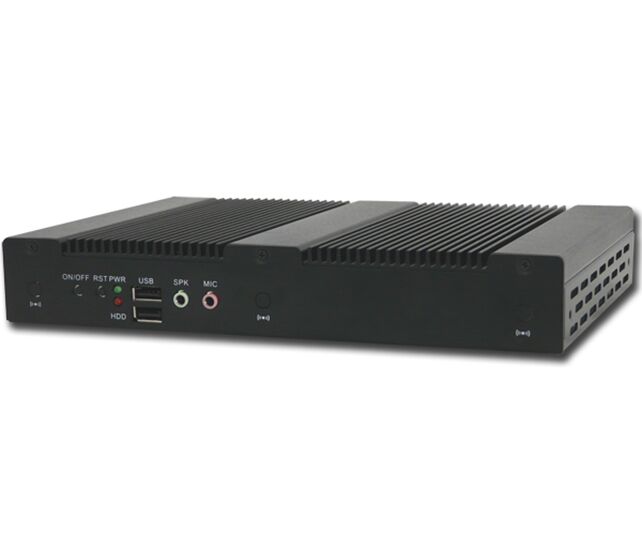

This fanless industrial computer in the form of a box PC features a 1.6 GHz Intel Atom N270 processor. It consists of a fully enclosed black housing. With a 2.5″ SSD hard drive (32 GB), 1 GB RAM, and various I/O ports, the embedded PC offers ample space for your applications. It is connected via 12 V DC.

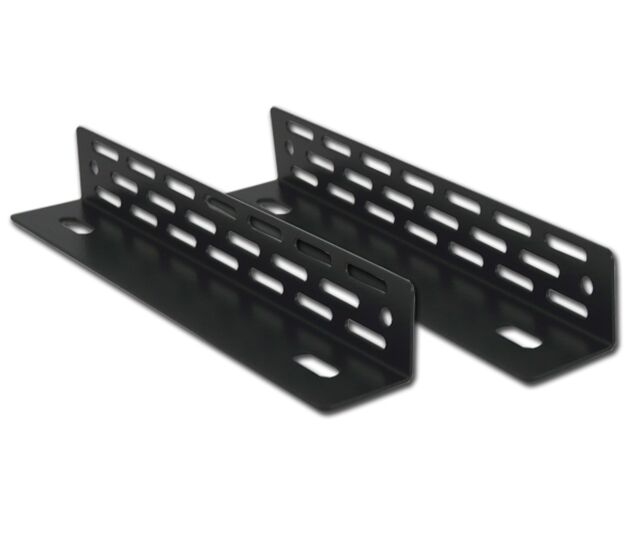

The package includes a power supply (AC-DC / 60 W), a PS/2 Y-cable, two mounting brackets, and a mounting plate with VESA 75 and VESA 100 standards.

https://tsubis.de/en/produkte/industrial-panel-pc/embedded-pc-en/industrial-pc-with-intel-atom-n270-cpu/ Industrial PC with Intel Atom N270 CPU 2019-01-25 18:26:05 <strong>Industrial PC as a box PC</strong> 1,6GHz Intel Atom N270 Prozessor fanless Frank Reinecke Blog post

Technische Daten

  • Fanless Industrie PC (IPC) im komplett geschlossenen schwarzen Gehäuse
  • Intel Atom N270 Prozessor (45nm, 512K Cache, 1,6 GHz, 533MHz FSB)
  • Memory Socket: 200-pin DDRII SO-DIMM slot
  • Expansion slot: Mini PCI-E
  • Serial ATA2 3Gb/s connector
  • Ultra DMA 133/100 IDE connector
  • CompactFlash Card connector
  • 1 GByte RAM Arbeitsspeicher
  • 2,5″ SSD SATA-II, 128GB, MTBF > 1.500.000 Stunden

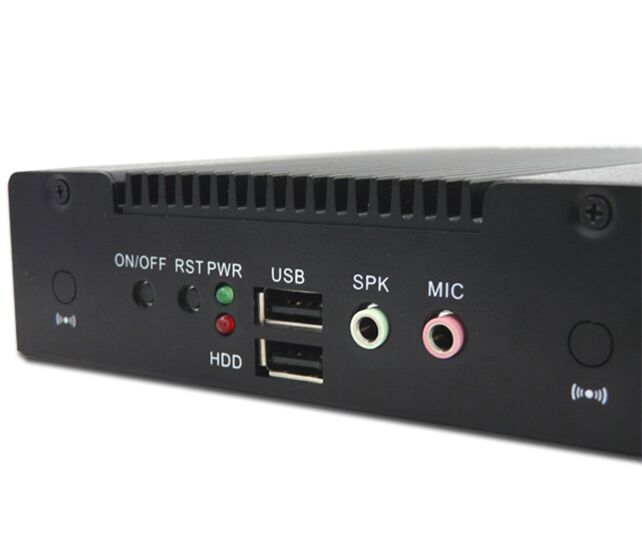

  • I/O Ports (Frontseite): ON/OFF Taste, RESET Taste, 2 x USB2.0, 1 x Line OUT, 1 x Mic

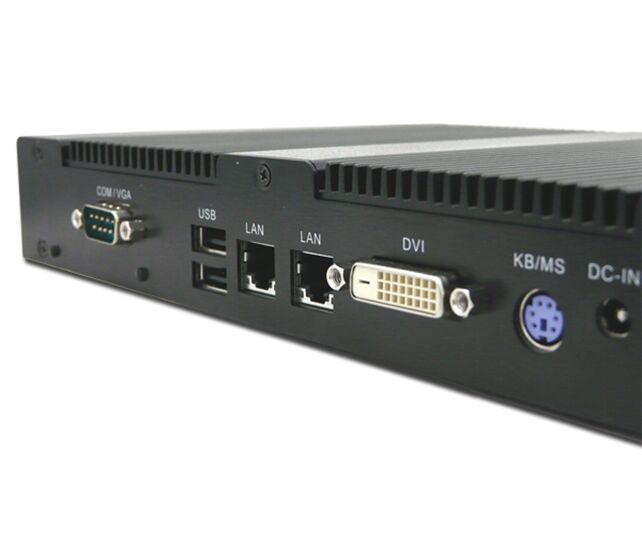

  • I/O Ports /Rückseite): 1 x COM, 2 x USB2.0, 2 x RJ45, DVI-D, PS/2 (Tastatur / Maus), 12V DC-IN
  • LAN: 2 x Realtek RTL8111DL PCI-E Gigabit Ethernet
  • Audio: Realtek ALC662 6-Channel HD Audio Codec
  • Betriebsspannung: 12V DC / 0,5A
  • Abmaße: 240 x 37 x 160 mm ( BxHxT)
  • Option: Softwarelizenz (Windows 7 / XP / Vista / 2000, Linux)
  • Betriebsbedingungen: 0°C ~ 60°C Betriebstemperatur, 10-90% Luftfeuchtigkeit (nicht kondensierend)
  • ausgelegt für 24/7 Dauerbetrieb
  • CE Norm, RoHS-konform
  • Langzeitverfügbarkeit
https://tsubis.de/en/produkte/industrial-panel-pc/embedded-pc-en/industrial-pc-with-intel-atom-n270-cpu/ Industrial PC with Intel Atom N270 CPU 2019-01-25 18:26:05 <strong>Industrial PC as a box PC</strong> 1,6GHz Intel Atom N270 Prozessor fanless Frank Reinecke Blog post

pdf Datenblatt IPC01-0002
