Desktop Monitor
24″ TFT monitor as a desktop version in an elegant “SlimLine” housing. Individual customer adjustments.
- 16:10 format (1920 x 1200)
- PCT Touch Screen
- IP54 protection class
- Customer logo
- Fanless
Slim Line 24”
This 24″ industrial monitor impresses with its slim, elegant design and comes in a desktop metal housing with a smooth true flat front. It is operated via a Projectice capactive touchscreen (PCT) and is ideal for multi-touch applications.
The 24″ LED display (with 1920 x 1200 pixels) offers a true-color display with its IPS technology. The smooth front window has a chemical anti-reflective coating on one side, is back-printed in the edge area and can be individually decorated with your logo and/or lettering.
By default, the desktop monitor has a VGA and DVI connection.

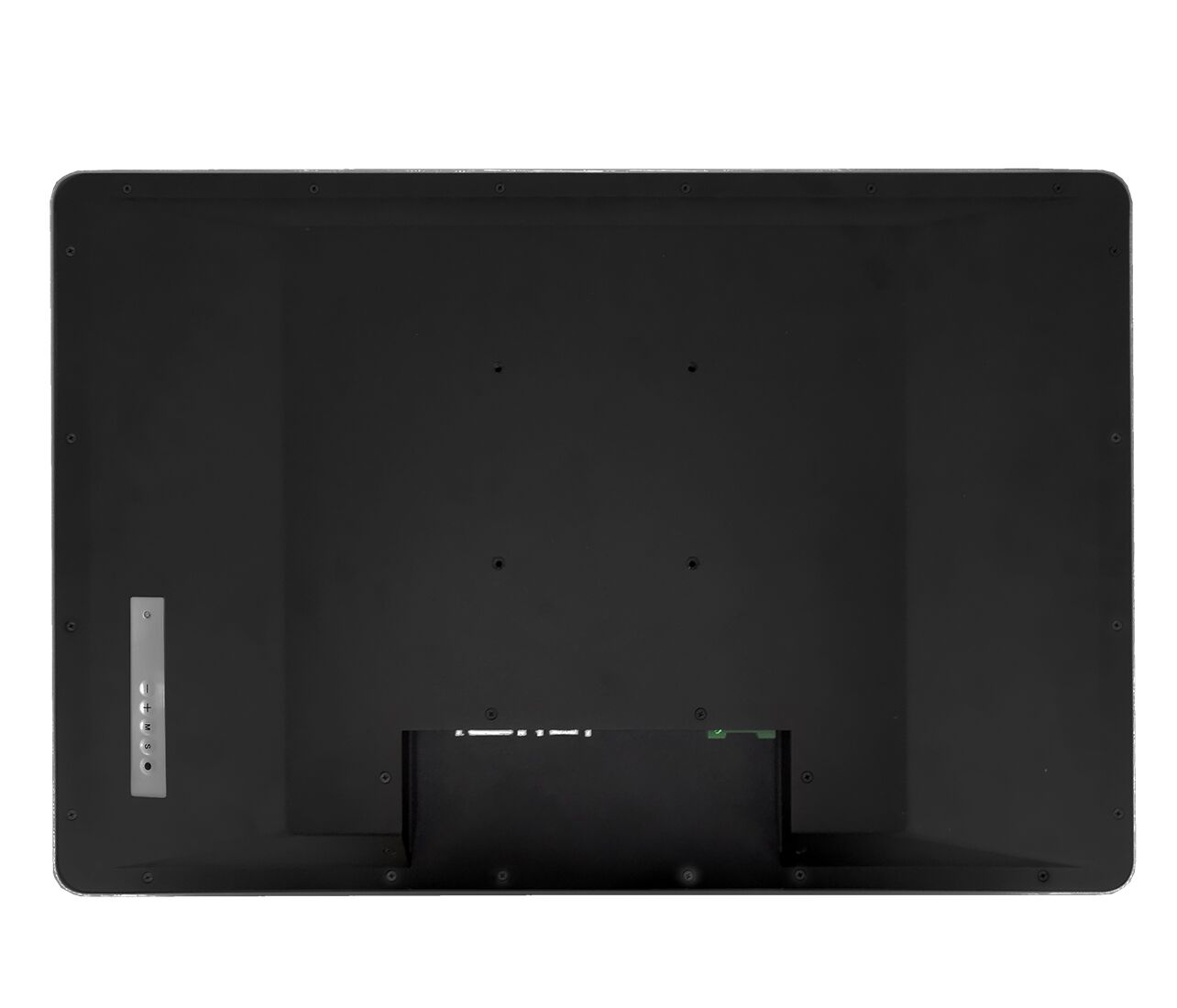

Due to the VESA standard holes on the back of the industrial monitor, it can be mounted directly on a stand, support arm or wall mount.
Technical data
| Display | |
|---|---|
| Display | 24″ TFT LED with IPS technology |
| Resolution | 1920 x 1200 Pixel |
| Brightness | 350 cd/m2 |
| Contrast | 1000:1 |
| Viewing angle | H/V 178°/178° |
| Touchscreen | |
| Touch | Projected capacitive Multitouch (PCT Touch) |
| Mechanic | |
| Case | Metal Case desktop in RAL 9005 with true flat front and OSD membrane keyboard |
| Protectiv screen | Glass pane chemically anti-reflective on one side, Gloss 85, back-printed in RAL 9005 in the edge area |
| VESA | 100/100 Standard |
| Interfaces | |
| Connection | 1 x 15pol. HD D-Sub (VGA), 1 x DVI |
| Power Supply | |
| Power Supply | 20-53V DC (24V DC / 1.3A) |
| Dimensions/Weight | |
| External dimensions (wxhxd) | 581,0 x 387,0 x 42,5 mm |
| Weight | ca. 8,4 kg |
| Conditions | |
| Operating conditions | 0° bis 50°C Operating temperature -20° bis +60°C Storage temperature |
Equipment
Stand, wall mount
