Built-in monitors
19″ TFT – 8U monitor as a rack mount version for direct installation in existing systems. Individual customer adjustments.

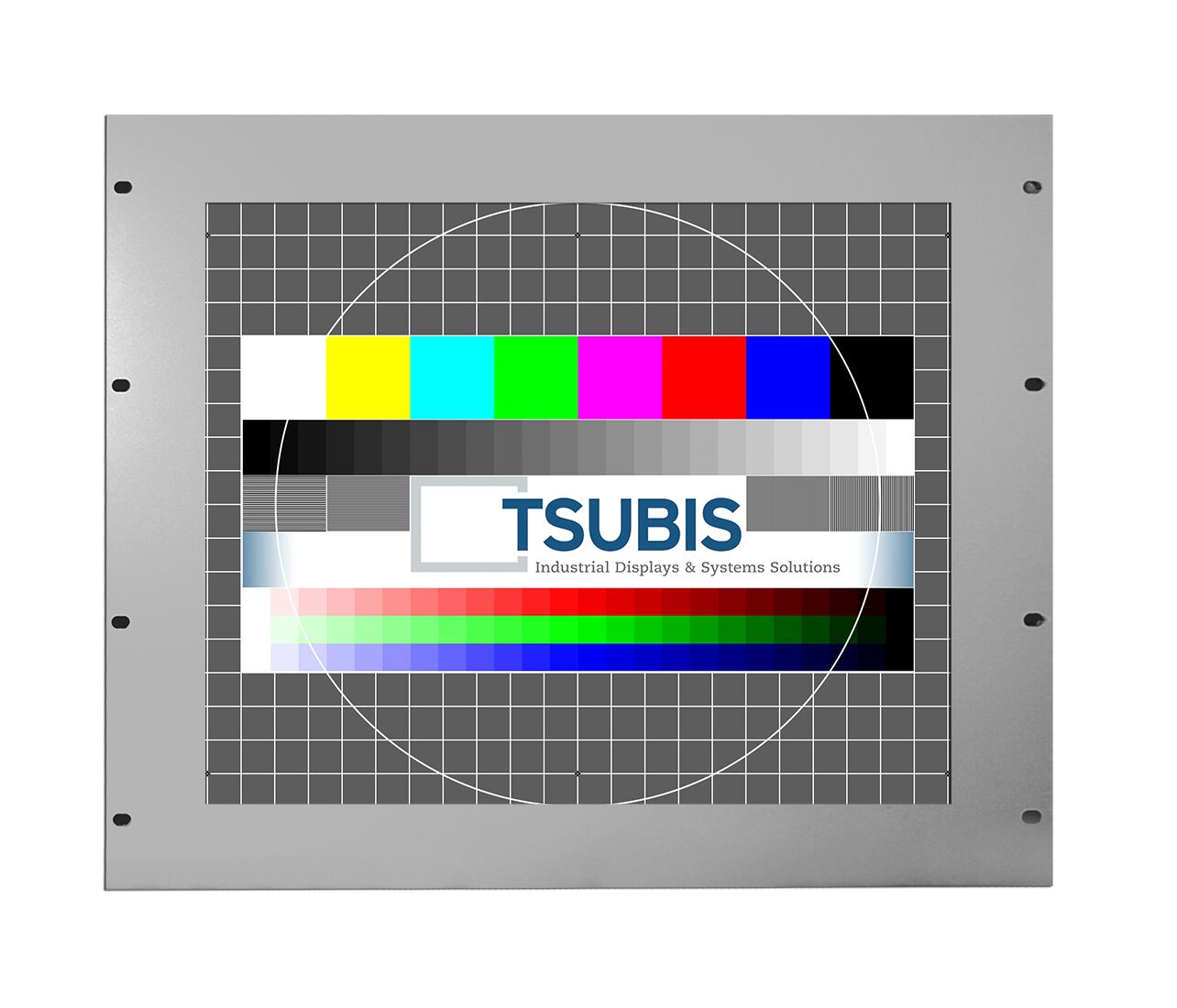

19” Rack Mount Monitore – 8HE
These industrial monitors are delivered as a rack mount version, i.e. including a 19″ rack front panel in a robust metal housing. They are ideal for installation in existing housings and systems.
Each individual monitor is manufactured specifically according to your customer requirements and can therefore be configured individually. Depending on the display size, the front panel is manufactured in a standardized height of 8U (height units) and can be provided with your logo and/or lettering.
Technical Data
Front panel | Optional: 8HE (w x h 482,6 x 354,8mm) |
Color | -Anodized aluminum optionally in RAL7035 |
Display | |
Screen diagonal | 19“ |
Technology | TFT (Backlight LED) |
Resolution | 1280×1024 dots |
Viewing angle (H/V) | H/V 85°/80° |
Brightness | 350 cd/m² |
Contrast | 1000:1 |
LED life time | at least 50.000 operating hours |
Touchscreen | Resistive 5-wire Touch-Screen |
Connections | |
Touch | USB Type-A socket |
Video | 1x 15pol. HD D-Sub (VGA)
1x DVI |
Power supply | IEC plug |
Setting (via) | OSD Keyboard |
Operating voltage | AC 230V/1.2A (wide-range power supply 88-264V AC) |
Case | Metal Case |
External dimensions | 8HE (w)482,6 x (h)354,8 x (d)78 mm |
Fastening (via) | Front panel |
Weight | 6 kg (net) |
Work environment | Operation 0° to +50° C
Stock -20° to +60° C |
Standard | Manufactured according to VDE 0100, 0411, 0804, 0871B |
Optional | – Power supply 24 VDC
– Custom front panel – OSD Keyboard – Mains supply via Phoenix connector. (DFK-MSTB) |
