15″ TFT monitor – 7U as a rack mount version for direct installation in existing systems. Individual customer adjustments.

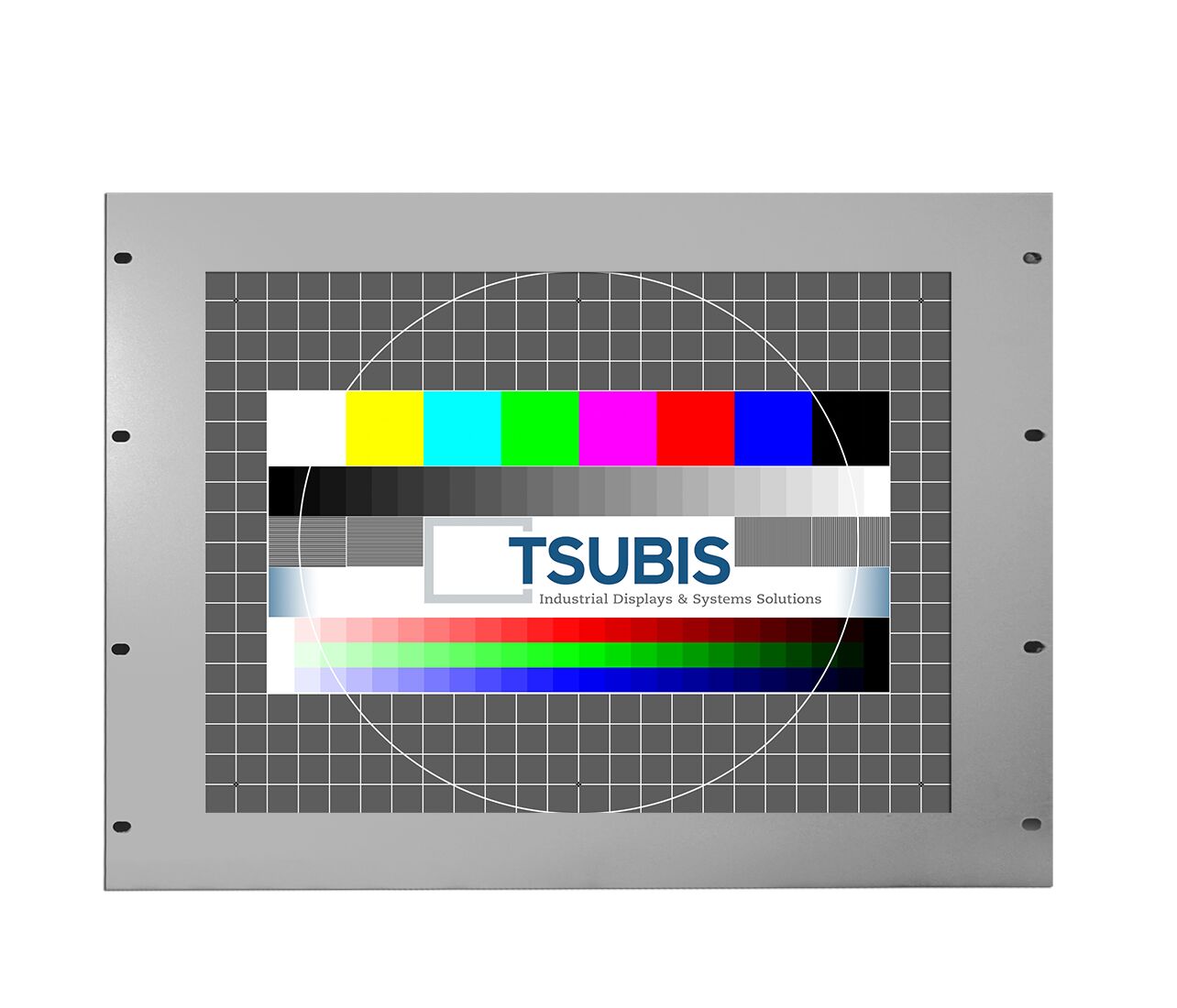

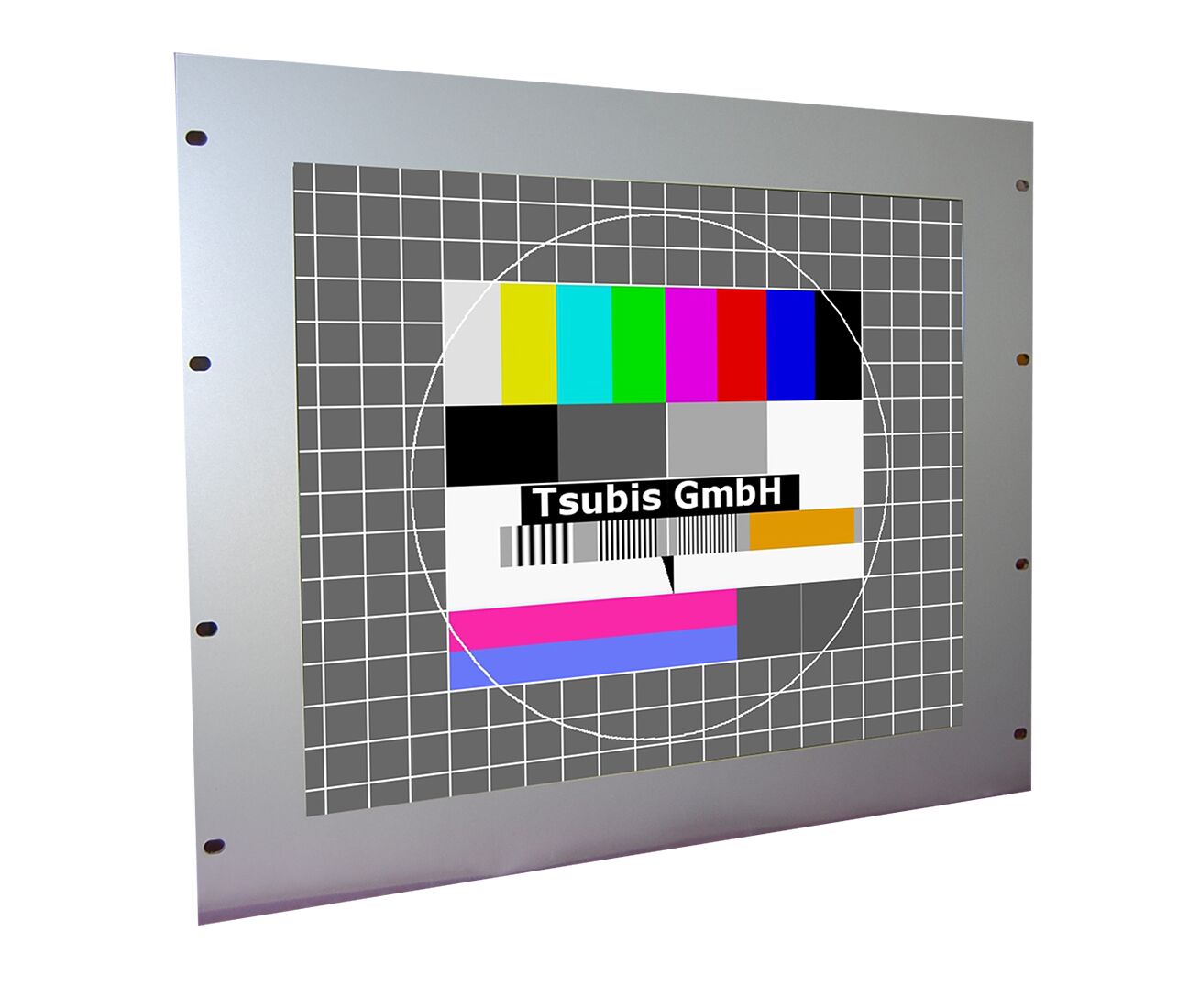

15” Rack Mount Monitore – 7HE

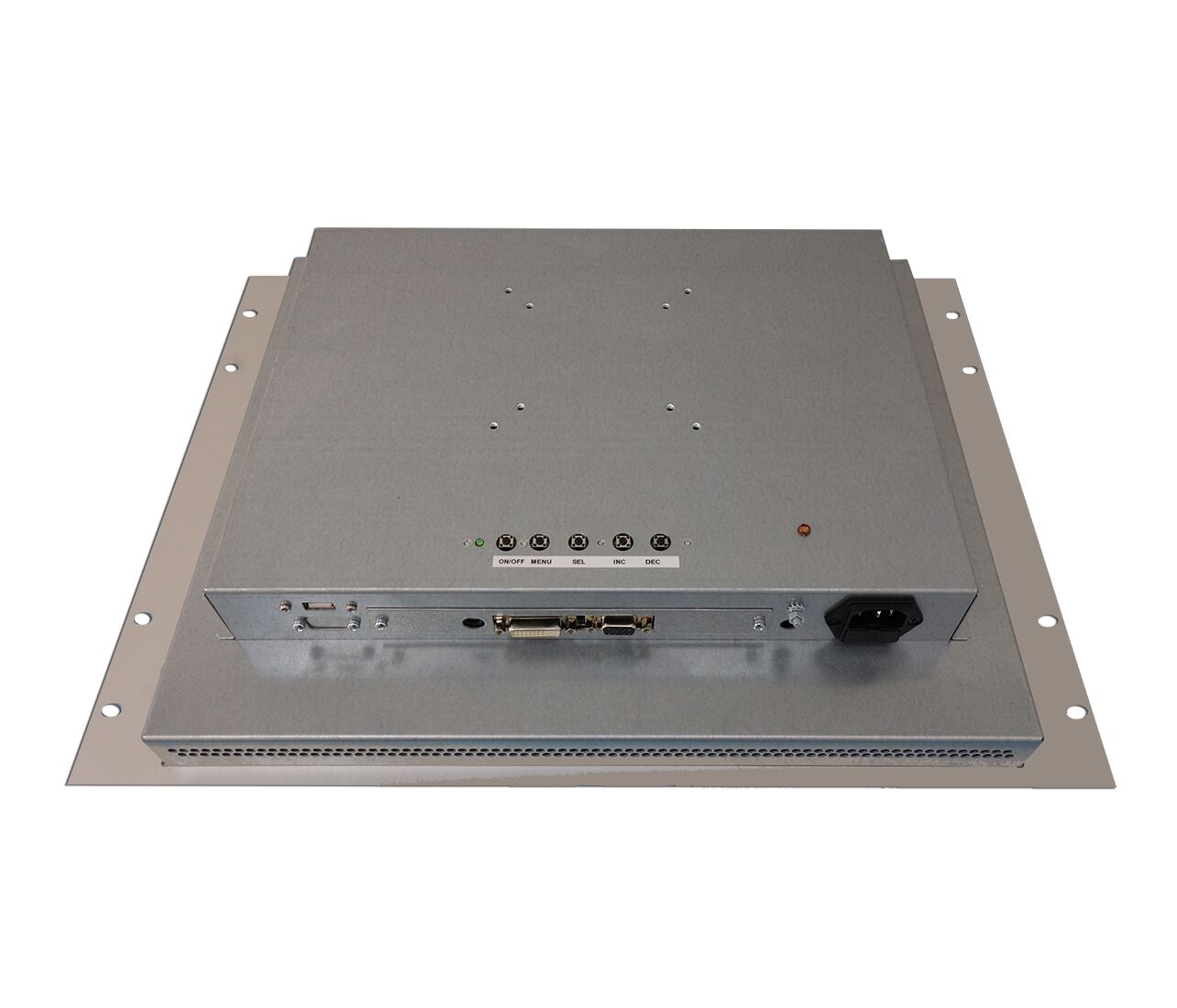

These industrial monitors are delivered as a rack mount version, i.e. including a 19″ rack front panel in a robust metal housing. They are ideal for installation in existing housings and systems.
Each individual monitor is manufactured specifically according to your customer requirements and can therefore be configured individually. Depending on the display size, the front panel is manufactured in a standardized height of 7U (height units) and can be provided with your logo and/or lettering.
Technical Data
| Frontpanel | Optional: 7HE (w x h 482,6 x 310,3mm) |
| Color | Anodized aluminum optionally in RAL7035 |
| Display | |
| screen diagonal | 15“ |
| Technology | TFT (Backlight LED) |
| Resolution | 1024×768 |
| Viewing angle (H/V) | H/V 85°/80° |
| Brightness | 350 cd/m² |
| Contrast | 1000:1 |
| LED life time | min. 50.000 Operating hours |
| Touchscreen | Resistiver 5-wire Touch-Screen |
| Connections | |
| Touch | USB Type-A socket |
| Video | 1x 15pol. HD D-Sub (VGA)1x DVI |
| Power supply | IEC plug |
| Setting (via) | OSD Keyboard |
| Operating power supply | AC 230V/1.2A (wide-range power supply 88-264V AC) |
| Case | Metal Case |
| External dimensions | 7HE (w)482,6 x (h)310,3 x (d)78 mm |
| Fastening (via) | Front panel |
| Weight | 6 kg (net) |
| Work environment | Operation 0° to +50° C Storage -20° to +60° C |
| Standard | Manufactured according to VDE 0100, 0411, 0804, 0871B |
| Options | – Mains 24 VDC – customer-specific front panel
– OSD keyboard on the front – Mains supply via Phoenix connector. (DFK-MSTB) |
