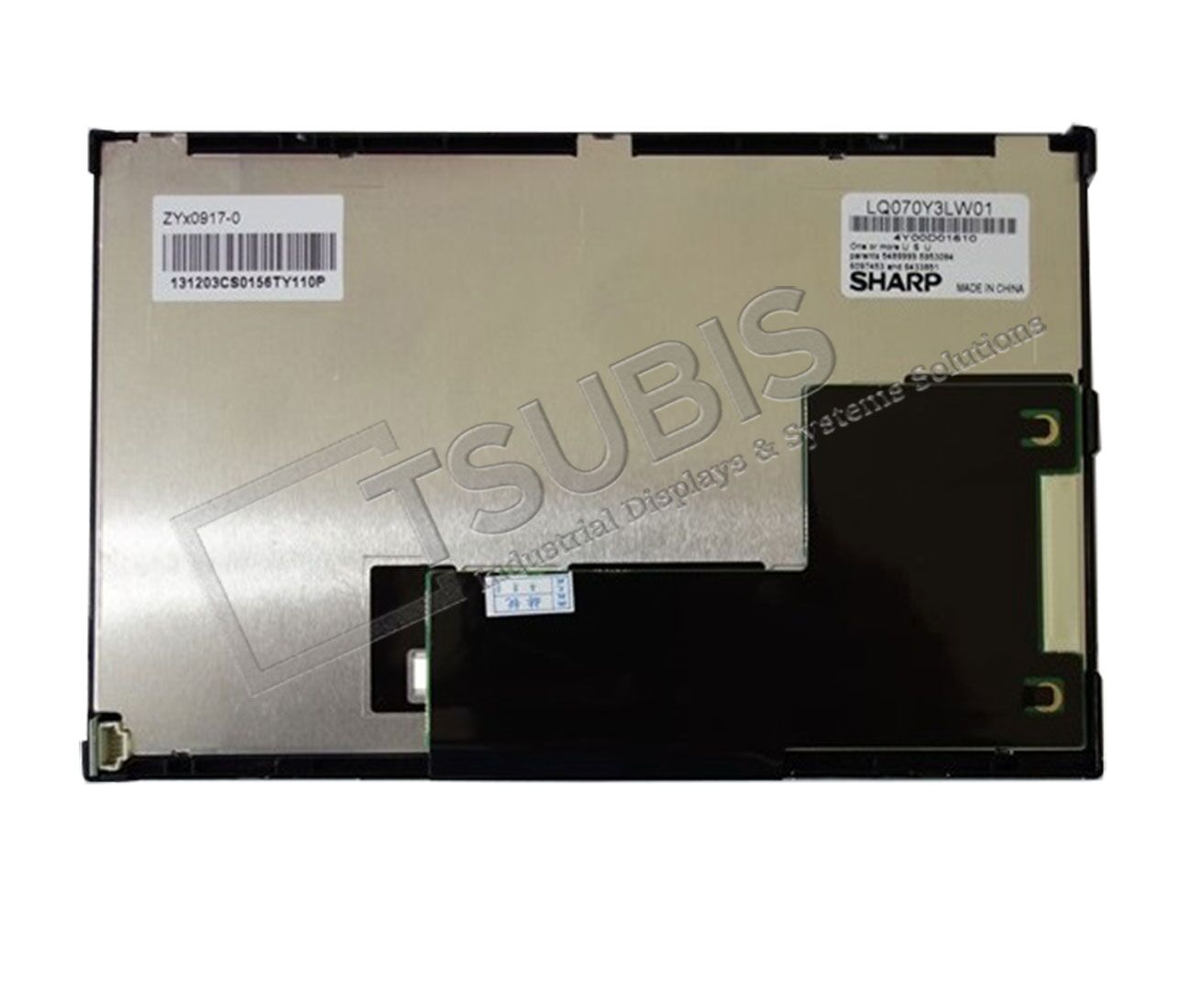

LQ070Y3LW01

  • Modell: LQ070Y3LW01
  • Diagonale: 7″
  • Auflösung: 800×600
  • Hersteller: SHARP
  • Artikel nr.: 8540885

  • function test
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance

Email us about LQ070Y3LW01

Artikelnummer: 8540885 Kategorien: , ,
https://tsubis.de/produkte/ersatzteile-cnc-sps/displays/sharp/lq070y3lw01/ LQ070Y3LW01 2019-01-25 18:34:27 <ul> <li>Modell: LQ070Y3LW01</li> <li>Diagonale: 7"</li> <li>Auflösung: 800x600</li> <li>Hersteller: SHARP</li> <li>Artikel nr.: 8540885</li> </ul>
  • function test
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LQ070Y3LW01
MyWebsiteService Blog post

LQ070Y3LW01 Sharp LCD Display technical data

Brand Sharp
Diagonal   7.0″
Resolution 800(RGB)×480, WVGA  133PPI
Brightness 360 cd/m² (Typ.)
Panel Type a-Si TFT-LCD, LCM
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Display Mode ASV, Normally Black, Transmissive
Treatment Antiglare, Hard coating (3H)
Interface Type LVDS (1 ch, 8-bit) , 20 pins Connectors
Support Colors 262K/16.2M
Pixel Format RGB Horizontal Stripe
Contrast Ratio 800:1 (Typ.) (TM)
Backlight WLED  [7S2P] , 50K hours , W/O Driver
Max. Rating Operating Temperature: 10 ~ 70 °C
Storage Temperature: -25 ~ 70 °C
Vibration Level: 1.0G (9.8 m/s²)



LQ070Y3LW01 Sharp LCD Synopsis

LQ070Y3LW01 is a 7.0″ diagonal a-Si TFT-LCD display from Sharp Corporation (after that it called Sharp), it is without backlight driver and with an integral CCFL backlight system and witout touch screen. The resolution of this display is 800×600 and the brightness is about 360cd/m² . It’s general features are summarized by Tsubis GmbH in the following: The panel has a life time about 50K hours, Display Mode is Normally white and Transmissive. Based on the features, Tsubis would recommend that this model can be applied to Industrial sector. The model mass production was on Q2, 2011 and last shippment was Q2, 2021, Now this model is discontinued.  If you want to plan the LQ070Y3LW01 in your future project, Tsubis GmbH would like to suggest to make a contact with a Sharp or a Sharp distribute agent to learn about the alternative solution and inform about the latest production and specification detail.. The production status marked on Tsubis.com is only for reference, please don´t use it as the basis for the decision making. All specification details are according to datasheet, but we cannot guarantee for the content.



https://tsubis.de/produkte/ersatzteile-cnc-sps/displays/sharp/lq070y3lw01/ LQ070Y3LW01 2019-01-25 18:34:27 <ul> <li>Modell: LQ070Y3LW01</li> <li>Diagonale: 7"</li> <li>Auflösung: 800x600</li> <li>Hersteller: SHARP</li> <li>Artikel nr.: 8540885</li> </ul>
  • function test
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Email us about LQ070Y3LW01
MyWebsiteService Blog post

pdf Datenblatt LQ070Y3LW01
