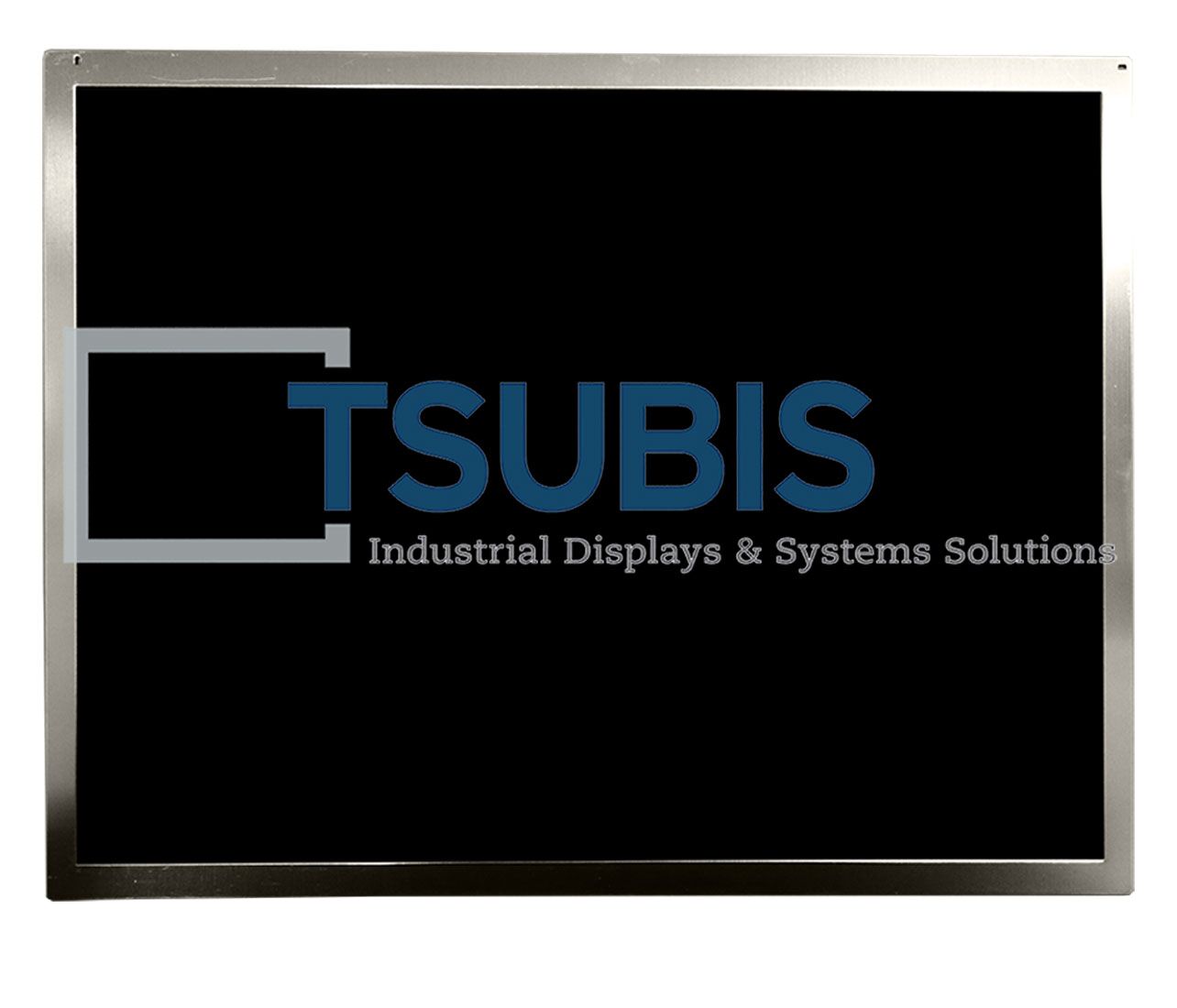

G121S1-L02

  • Modell: G121S1-L02
  • Diagonale: 12,1″
  • Auflösung: 800×600
  • Hersteller: CHI MEI
  • Artikel-Nr.: 8541633
  • Funktionsprüfung
  • Verfügbarkeit: Auf Lager
  • 24h Lieferzeit nach Bestelleingang
Artikelnummer: 8541633 Kategorien: , ,
https://tsubis.de/produkte/ersatzteile-cnc-sps/displays/chi-mei/innoluxg-121s1-l02/ G121S1-L02 2020-03-19 16:21:01 <ul> <li>Modell: G121S1-L02</li> <li>Diagonale: 12,1"</li> <li>Auflösung: 800x600</li> <li>Hersteller: CHI MEI</li> <li>Artikel-Nr.: 8541633</li> </ul>
  • Funktionsprüfung
  • Verfügbarkeit: Auf Lager
  • 24h Lieferzeit nach Bestelleingang
Frank Reinecke Blog post

G121S1-L02 Innolux (Chi Mei) Display technical data

Brand Innolux Chi Mei
Resolution 800(RGB)×600, SVGA  82PPI
Luminance 600cd/m²
Panel Type a-Si TFT-LCD , LCM
Diagonal 12,1″
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode Super MVA, Normally Black, Transmissive
Contrast Ratio 1500 : 1 (Typ.) (TM)
Active Area 246(W)×184.5(H) mm
Support Colors 262K/16.2M   50% NTSC
Pixel Format RGB Vertical Stripe
Treatment Antiglare (Haze 22%), Hard coating (3H)
Backlight WLED , 50K hours , With LED Driver
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~ 85 °C



Innolux G121S1-L02 Summary

The G121S1-L02 is a panel of the company Innolux Corporation  (hereafter called Innolux) It is 12.1 inch diagonal a-Si TFT-LCD display panel., with an integral WLED backlight system, with WLED Driver , without touch screen. It’s general features are summarized by Tsubis in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, , Matte. The Mass production from Q1 2010 and the last order was on Q4 2022; 6.7W. Based on its features, Tsubis recommend that this model be applied to Industrial etc. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 85°C, it has a luminance of 600cd/m² and the resolution of 800×600. Now this model is discontinued and will not produce more. If you want to use G121S1-L02LCM in your future product, company Tsubis recommend that you should contact with Innolux or it’s agent to learn lateast production and specification detail. The G121S1-L02 production status marked on Tsubis.com is for reference only and should not be used as the basis for the user’s decision making. All specification details are inputted by Tsubis engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

https://tsubis.de/produkte/ersatzteile-cnc-sps/displays/chi-mei/innoluxg-121s1-l02/ G121S1-L02 2020-03-19 16:21:01 <ul> <li>Modell: G121S1-L02</li> <li>Diagonale: 12,1"</li> <li>Auflösung: 800x600</li> <li>Hersteller: CHI MEI</li> <li>Artikel-Nr.: 8541633</li> </ul>
  • Funktionsprüfung
  • Verfügbarkeit: Auf Lager
  • 24h Lieferzeit nach Bestelleingang
Frank Reinecke Blog post

pdf Datenblatt Chi Mei G121S1-L02
