M190EG01 V2

  • Modell: M190EG01 V2
  • Diagonale: 19″
  • Auflösung: 1280×1024
  • Hersteller: AUO
  • Artikel-Nr.: 8541457

  • Funktionsprüfung
  • Verfügbarkeit: Auf Lager
  • 24h Lieferzeit nach Bestelleingang

Artikelnummer: 8541457 Kategorien: , ,
https://tsubis.de/produkte/ersatzteile-cnc-sps/displays/auo/m190eg01-v2/ M190EG01 V2 2021-02-25 10:56:53 <ul> <li>Modell: M190EG01 V2</li> <li>Diagonale: 19"</li> <li>Auflösung: 1280x1024</li> <li>Hersteller: AUO</li> <li>Artikel-Nr.: 8541457</li> </ul>
  • Funktionsprüfung
  • Verfügbarkeit: Auf Lager
  • 24h Lieferzeit nach Bestelleingang
PanosTsubis Blog post

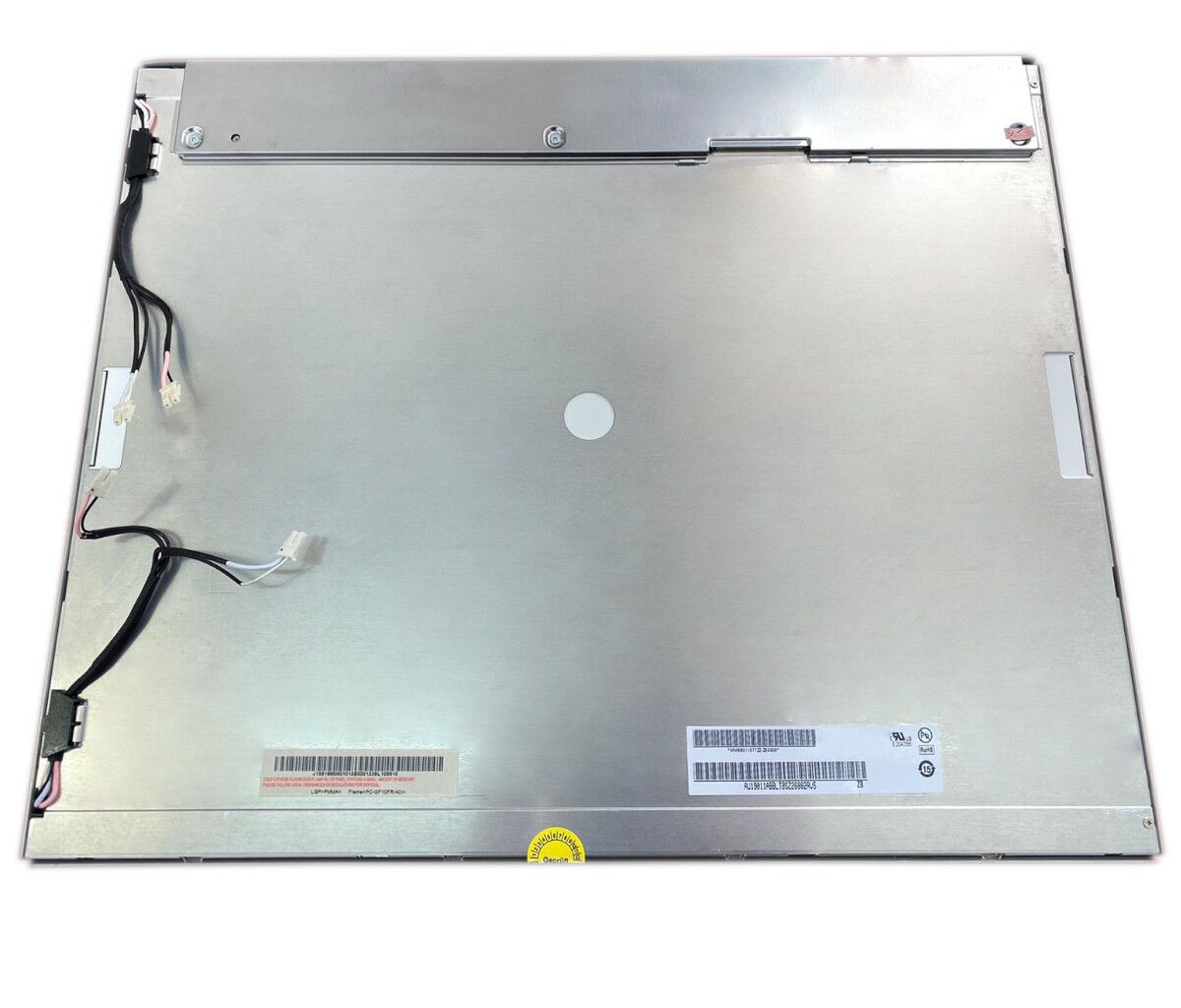

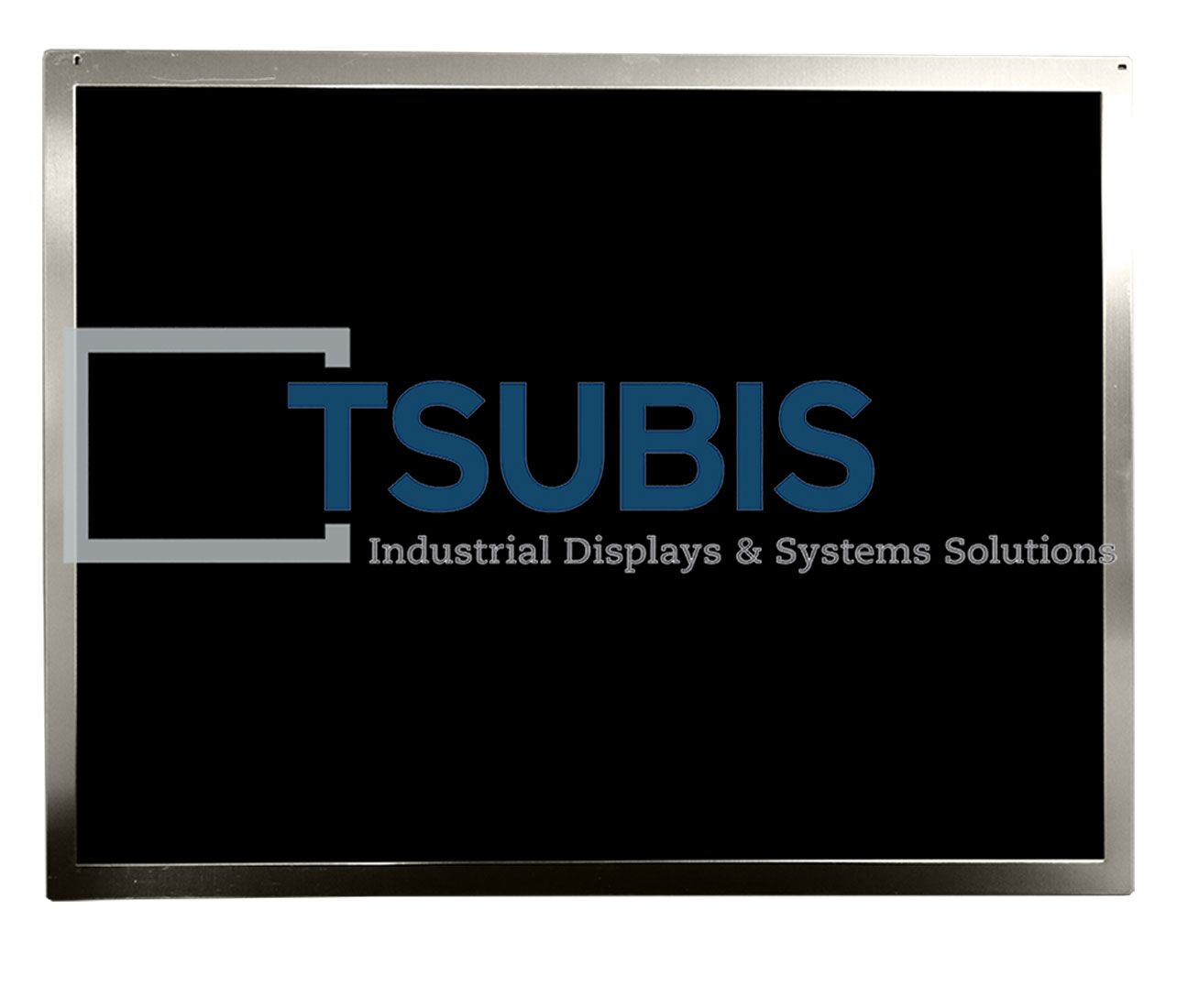

M190EG01 V2 AUO LCD Display technical data

Brand AUO
Diagonal   19,0 inch
Resolution 1280(RGB)×1024, SXGA
Brightness 300 cd/m² (Typ.)
Panel Type a-Si TFT-LCD, LCM
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode MVA, Normally Black, Transmissive
Good View at 6 o’clock
Operating Mode MVA, Normally Black, Transmissive
Support Colors 16.7M (6-bit + Hi-FRC)
Pixel Format RGB Vertical Stripe
Contrast Ratio 2000:1 (Typ.) (TM)
Surface Antiglare, Hard coating (3H)
Max. Rating Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C


M190EG01 V2 AUO Display Synopsis

M190EG01 V2 is a 19″ diagonal a-Si TFT-LCD display from AUO Potronics Corp. (after that it called AUO), it is without backlight driver and with integral CCFL backlight system, it is witout touch screen. The resolution of this display is 1280×1024 and the brightness is about 300cd/m² . It’s general features are summarized by Tsubis GmbH in the following: The support colors is about 16.7M and the best viewing is on 6 o’clock. Based on the features, Tsubis would recommend that this model can be applied to Industrial sector.   The production status marked on Tsubis.com is only for reference, please don´t use it as the basis for the decision making. All specification details are according to datasheet, but we cannot guarantee for the content.
