9″ TFT Display für Siemens Simatic KTP900 Basic Color PN
Ersatzteil für Siemens HMI
6AV2123-2JB03-0AX0
- Diagonale: 9″
- Auflösung: 800×480
- Artikel-Nr.: 8542474

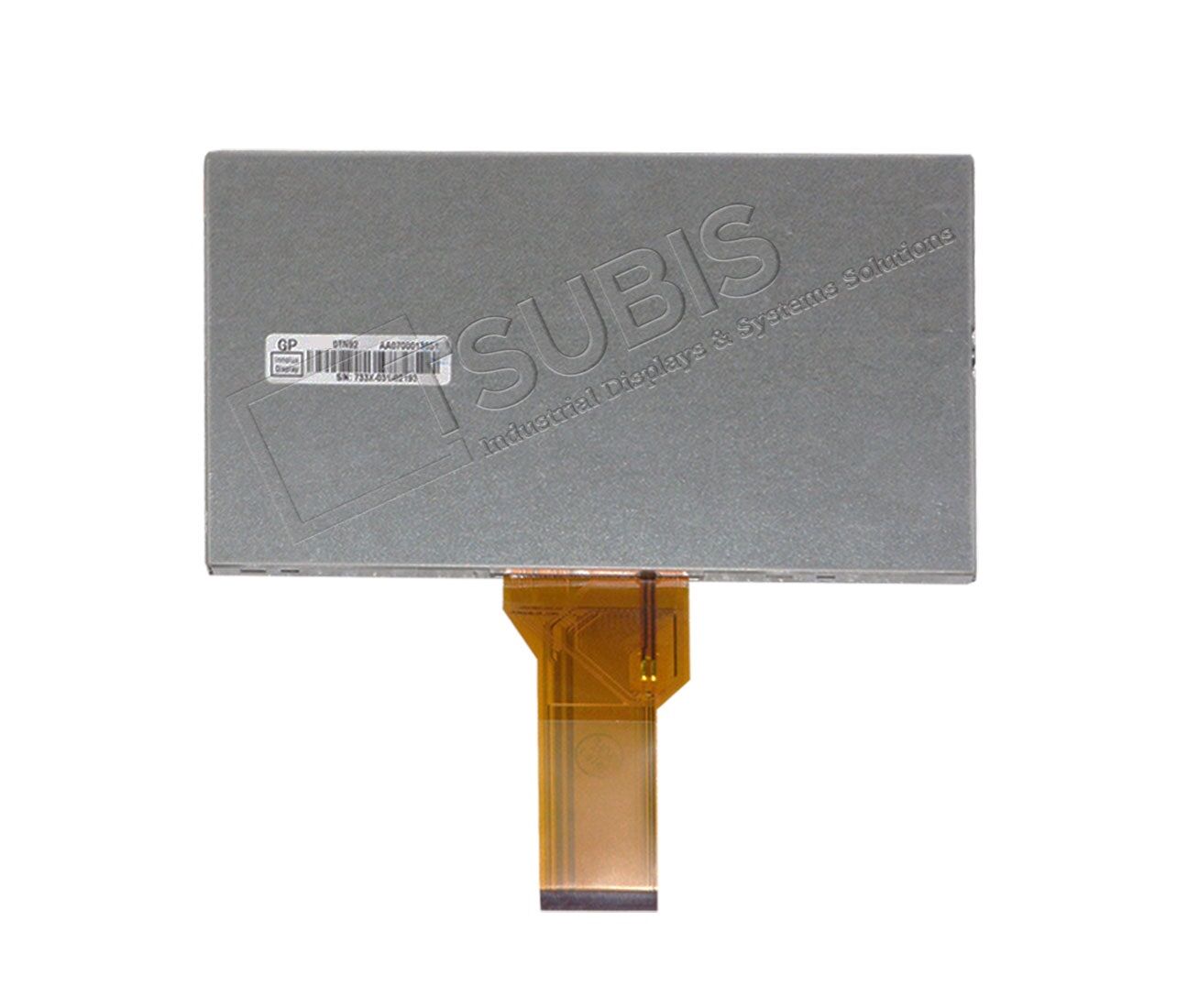

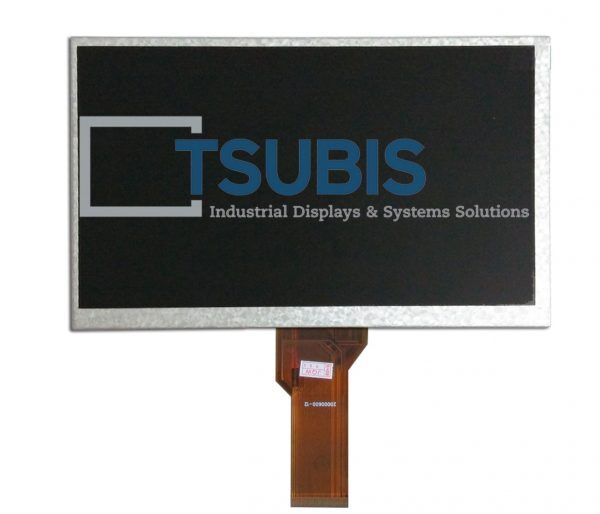

KTP900 BASIC color PN – 9″ TFT Display
| Model | KTP900 Basic color PN |
| Diagonal (Zoll) | 9 inch |
| Luminance | 250 (Typ.)(cd/m²) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 104PPI |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Color Depth | 262K/16.7M 50% NTSC |
| Refresh Rate | 60Hz |
| Interface Type | TTL (1 ch, 6/8-bit) , 50 pins FPC |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Input Voltage | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Work Mode | TN, Normally White, Transmissive |
| Backlight | 3S11P WLED , 20K hours , Without Driver |
