Replacement monitor with Operating panel for Siemens Sinumerik 810

Replacement monitor with Operating panel for Siemens Sinumerik 810

8,4” TFT replacement monitor for SIEMENS SINUMERIK 810 with operator panel as an replacement for 6FC3-471-0AA-Z and 6FC3984-7CD01.

Our LCD84-0051 is a modern 8.4″ TFT LCD monitor with a new operator panel that replaces the original 9″ CRT monitor and operator panel fitted to the SIEMENS SINUMERIK 810:
Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps. It is supplied pre-fitted to a new Siemens 6FX1130-0BB01 operator panel.

  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/siemens-sinumerik-en/replacement-monitor-with-operating-panel-for-siemens-sinumerik-810/ Replacement monitor with Operating panel for Siemens Sinumerik 810 2019-01-25 18:13:36 <strong>8,4'' TFT replacement monitor for SIEMENS SINUMERIK 810 with operator panel as an replacement for 6FC3-471-0AA-Z and 6FC3984-7CD01.</strong> Our LCD84-0051 is a modern 8.4" TFT LCD monitor with a new operator panel that replaces the original 9" CRT monitor and operator panel fitted to the SIEMENS SINUMERIK 810: Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps. It is supplied pre-fitted to a new Siemens 6FX1130-0BB01 operator panel.
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

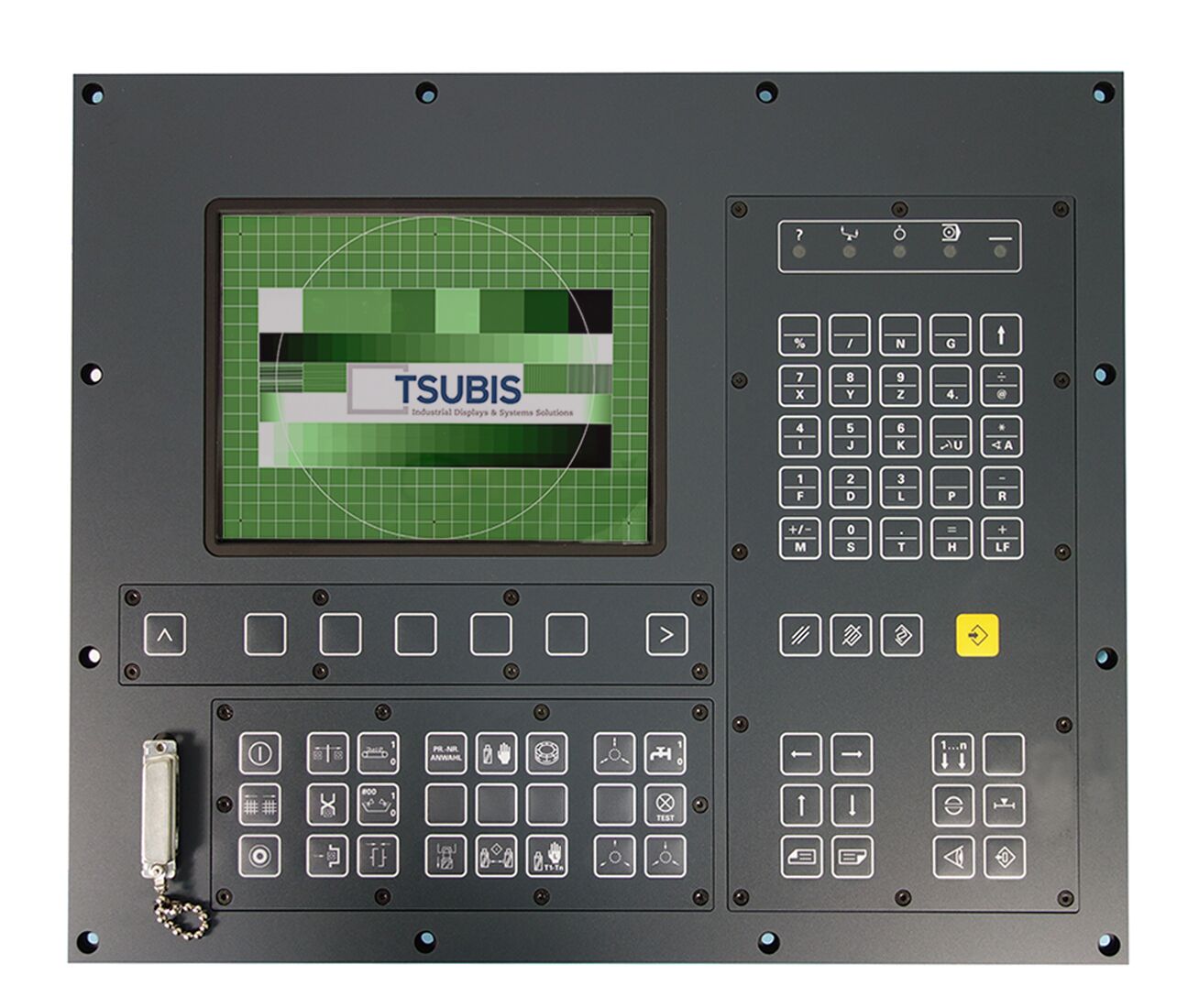

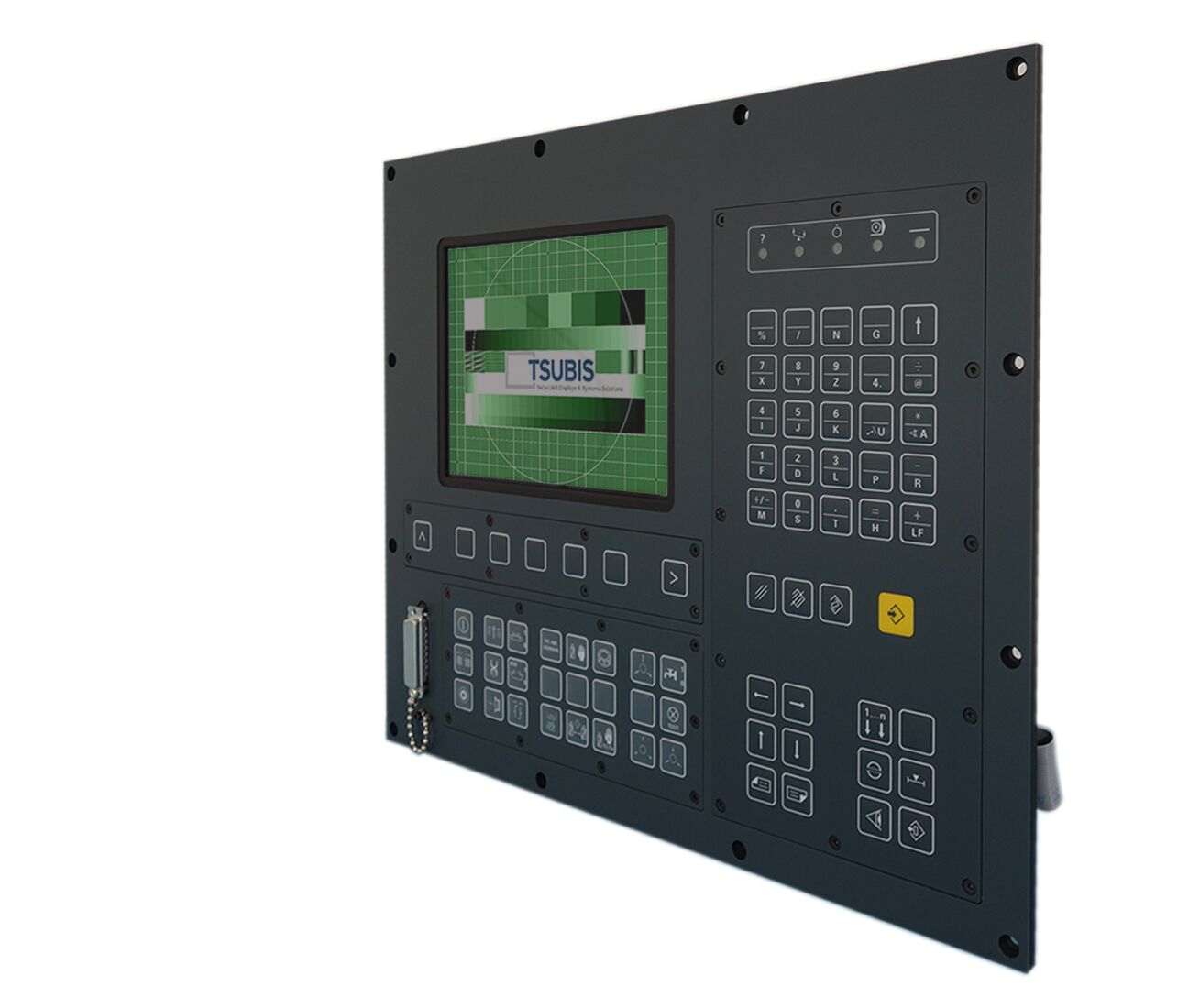

8,4” TFT LCD replacement monitor inclusive Operating panel for SIEMENS SINUMERIK 810.

  • Manufacturer: SIEMENS SINUMERIK
  • Control: 810 GA.2, 810 M, 810 T, 810 T GA.3
  • Mechanical version: inkl. kompl. keyboard-Operating panel (original Siemens-Codes: 6FX1130-0BB01, 6FC3984-7CD01)
  • Input signal: 16 pol.
  • Front Panel (WxH): 350×420 mm
  • Power supply: 12-15V DC Input signal
  • Siemens Simatic Monitor Codes:
    • 6FX1130-0BB01
    • 6FC3988-7AF01
    • 6FC3551-1AC-Z
    • 6FC3541-0AA-Z
    • 6FC3821-2AC-Z
    • 6FC3541-0AC-Z
    • 6FC3984-7CD
    • 6FC3984-7CD01
    • 6FC3984-7CD81
    • 6FC3984-7CD82
    • 6FC3984-7CE01
    • 6FC3984-7CE81
    • 6FC3984-7CE82
    • 6FC3984-7CE-Z
    • 6FM1510-1AA-Z
https://tsubis.de/en/produkte/spare-parts-cnc-plc/replacement-monitors/siemens-sinumerik-en/replacement-monitor-with-operating-panel-for-siemens-sinumerik-810/ Replacement monitor with Operating panel for Siemens Sinumerik 810 2019-01-25 18:13:36 <strong>8,4'' TFT replacement monitor for SIEMENS SINUMERIK 810 with operator panel as an replacement for 6FC3-471-0AA-Z and 6FC3984-7CD01.</strong> Our LCD84-0051 is a modern 8.4" TFT LCD monitor with a new operator panel that replaces the original 9" CRT monitor and operator panel fitted to the SIEMENS SINUMERIK 810: Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps. It is supplied pre-fitted to a new Siemens 6FX1130-0BB01 operator panel.
  • Availability: in stock
  • Shipping of goods within 24 hours after order entrance
Frank Reinecke Blog post

pdf Datenblatt LCD84-0051
