15″ TFT LCD industrial monitor with integrated keyboard as replacement for 15.1″ TFT monitor BF 155.
This 15″ TFT replacement screen replaces the 15″ BF 155 screens on the Heidenhain iTNC530 controls and is 100% compatible with the original monitors according to the PLUG&PLAY principle. The existing keyboard is also replaced by a keyboard integrated in the new front panel.
Heidenhain Monitor Codes:
ID number: 365 340-02; 365 340-03; 365 340-4

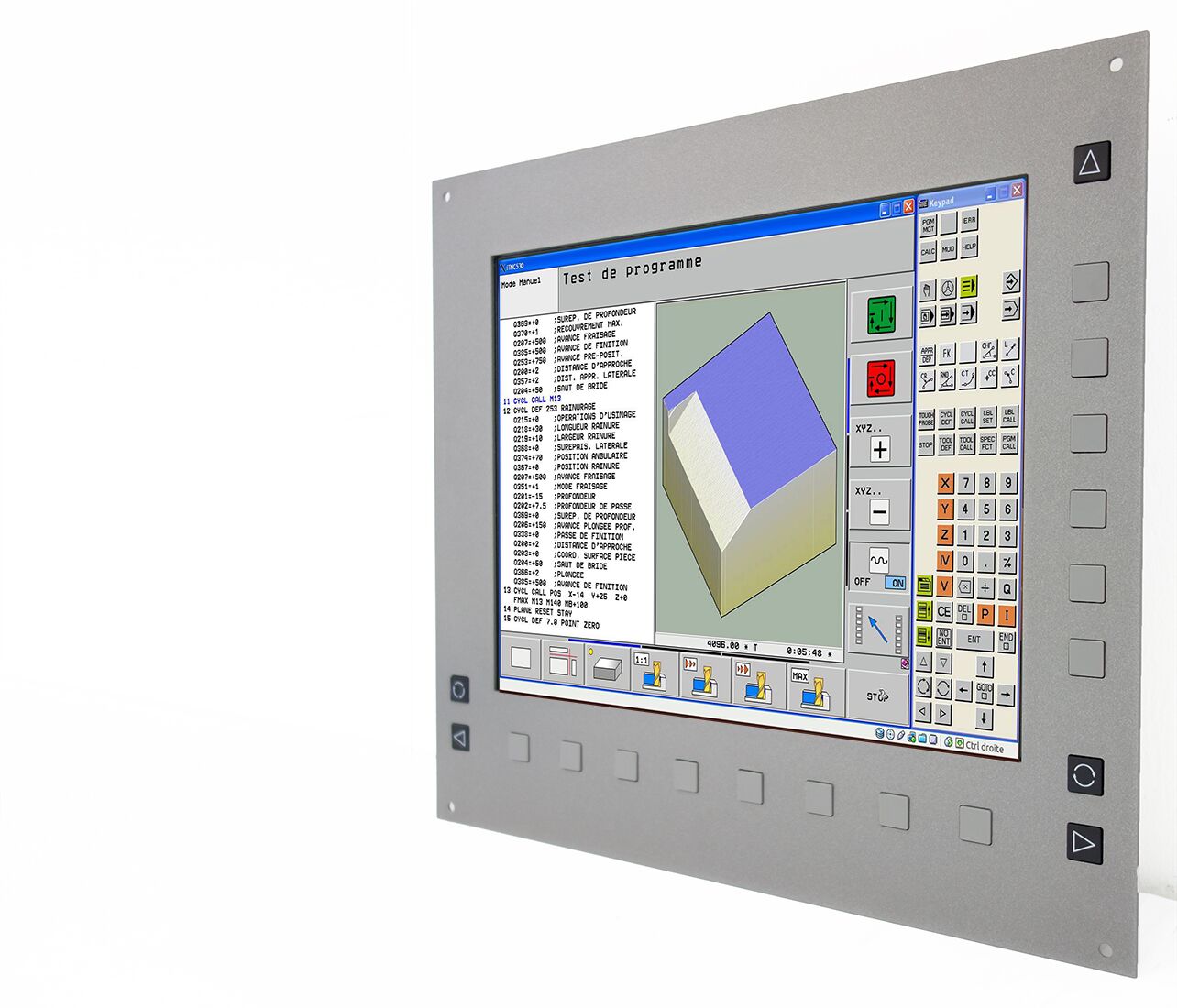

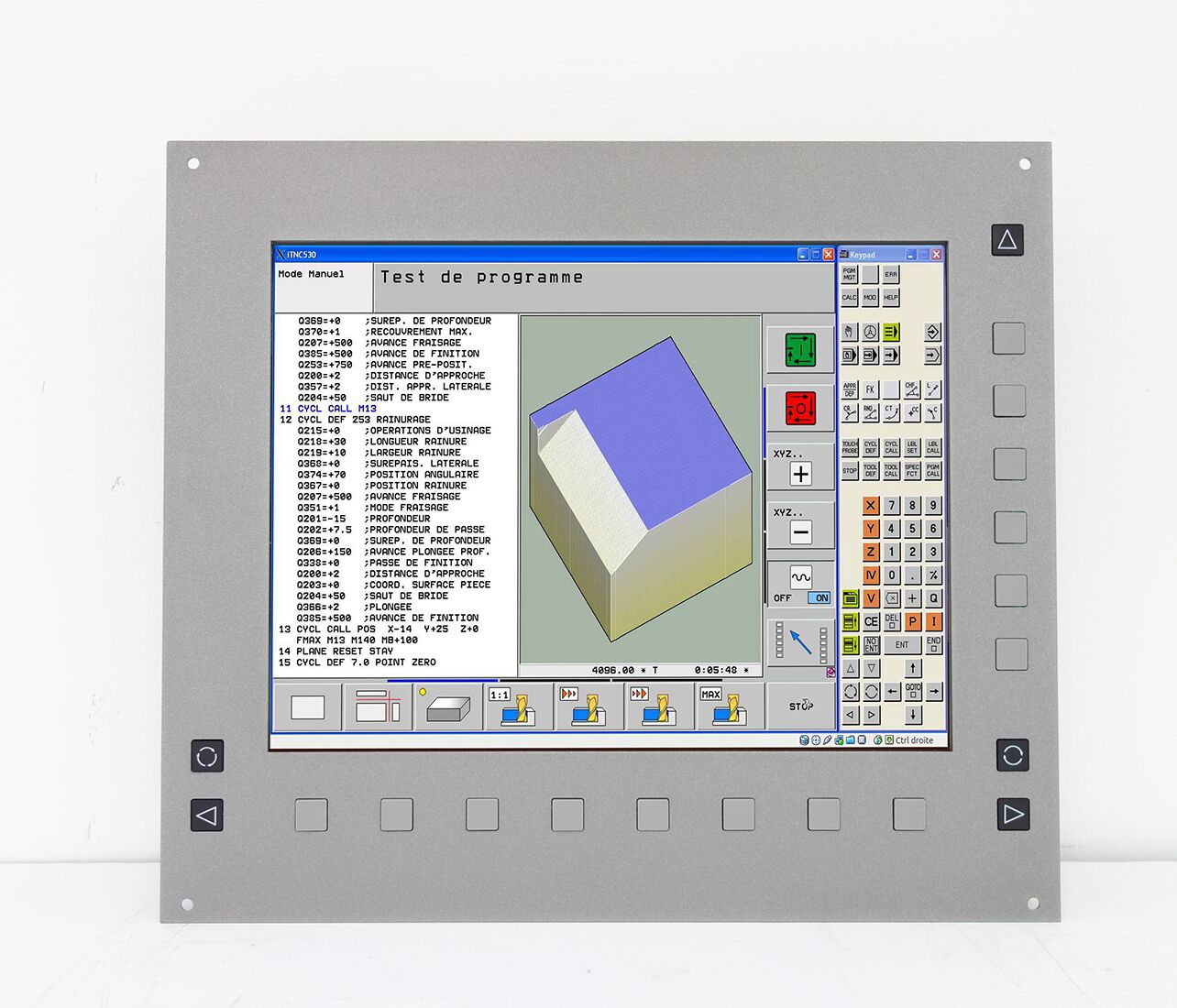

15” TFT replacement screen with integrated keyboard as replacement for 15” CRT/TFT monitor BF 155 with front panel.
Control manufacturer: Heidenhain
Controls: iTNC530
Installation variant: Front panel including keyboard

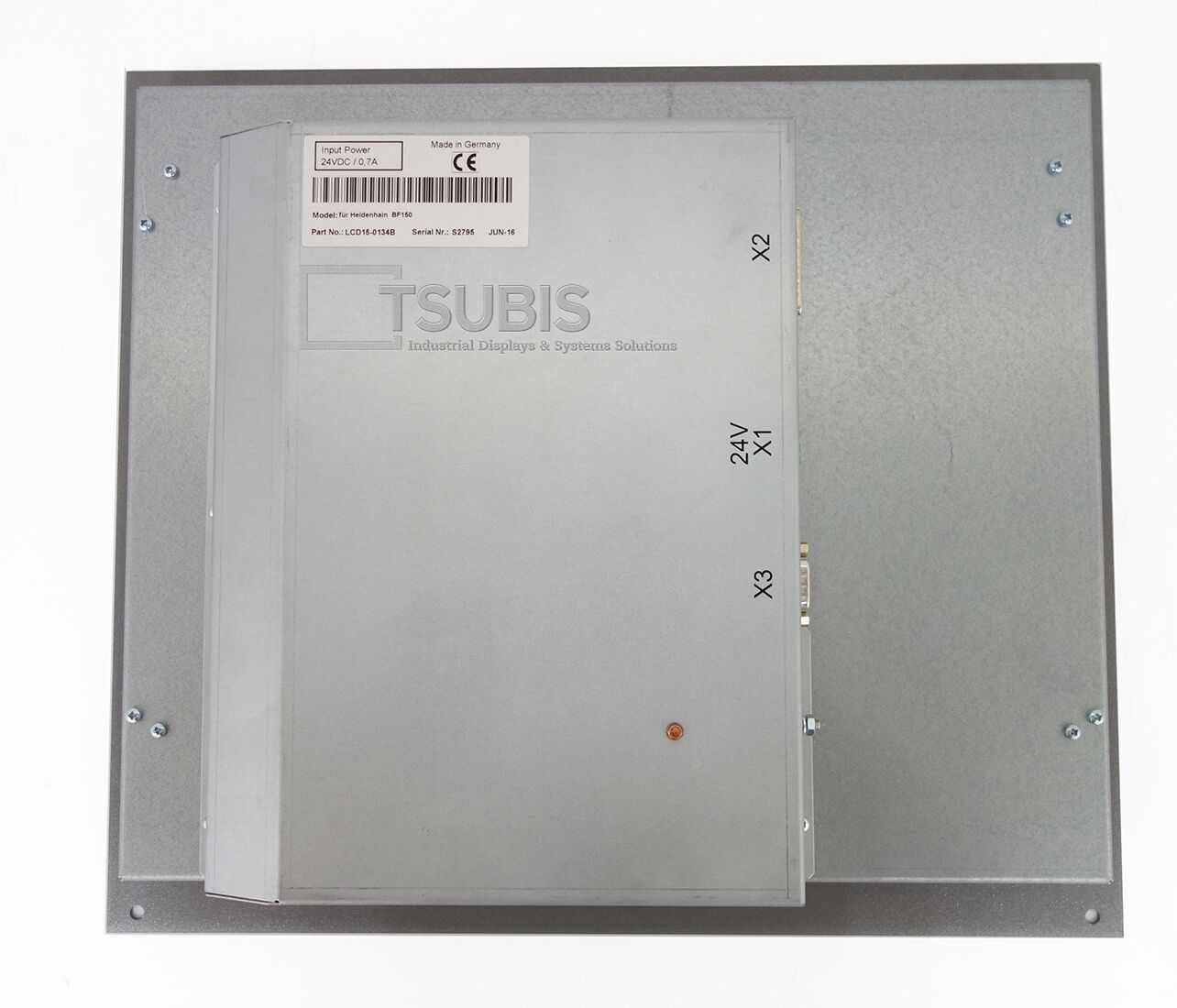

Video connection: HD-SUB socket, 44 pin. LVDS 3 rows
Keyboard connection: D-SUB 9-pin / 2-row
Front panel dimensions (WxH): 416 x 381 mm
Power supply: 24V DC
Heidenhain Monitor Codes:
ID no. 365 340-02
ID no. 365 340-03
ID no. 365 340-04
